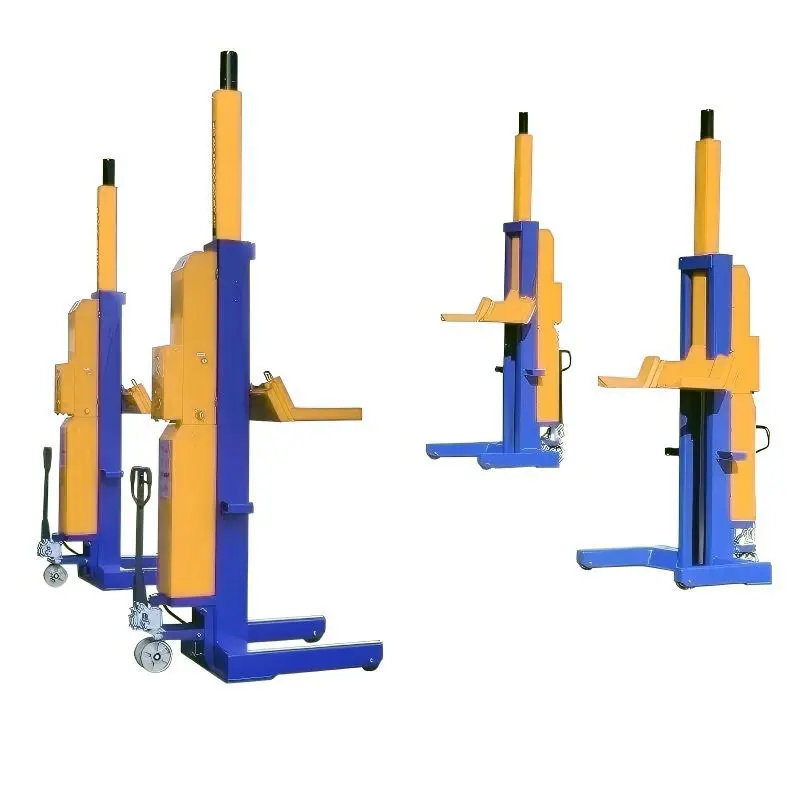

High-Quality Mobile Column Truck Lift Wireless Hydraulic Lift Factories, Factory

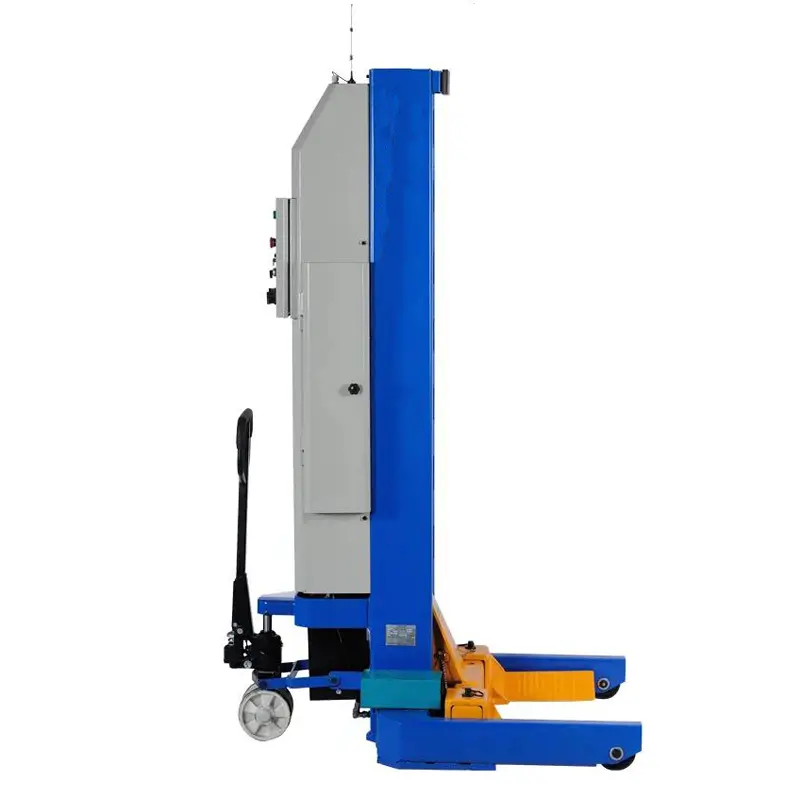

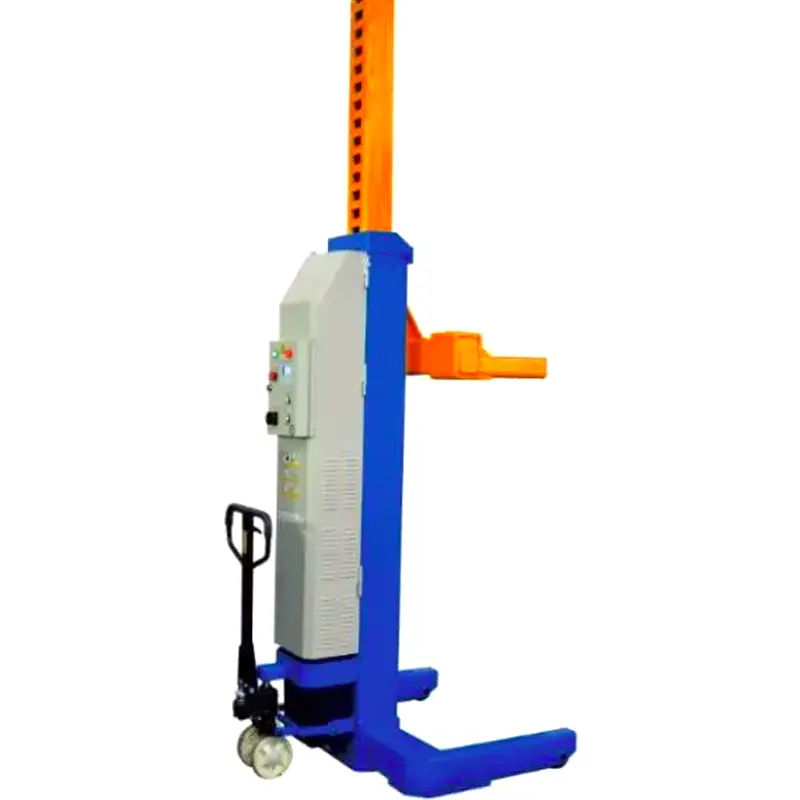

Automotive business owners are always seeking flexibility and convenience to lift any vehicle. Cherish Automotive Equipment provides the perfect solution for busy service centers, dealerships, and businesses that service a variety of cars, trucks, SUVs, and more. We offer mobile column car lifts at various price points. When dealing with heavy-duty vehicles with long wheelbases, you need a mobile column lift system that can handle the task.

Send Inquiry

Product Description

Products Features

◈

Radio control (non-Bluetooth) No cables required. Adopting advanced industrial-grade radio communication methods, the equipment has good signal stability and penetration. Long communication distance and strong anti-interference ability.

◈

Dual communication frequency band Adopts two groups of communication modules for redundancy. If one fails, the other serves as backup. A total of 32 communication channels are available.

◈

Built-in battery The 100AH battery design supports frequent starts/stops with large capacity and long service life.

◈

Intuitive operation Each column has a 7.5-inch color LCD touch screen for parameter setting and real-time height visualization.

◈

Intelligent Charging Plug-and-play charging. The intelligent design automatically adjusts current according to battery levels and prevents overcharging.

◈

Adjustable wheel fork Movable fork design adjusts to tire size, supporting a maximum tire diameter of 1160mm.

◈

Hydraulic cylinder safety Built-in oil cylinder design is invisible from the outside, ensuring maximum protection and safety.

◈

Double load safety Equipped with explosion-proof valves to prevent sudden falls if a pipe bursts, and mechanical locks that engage automatically during rising.

◈

Universal column design Any column can control the whole equipment. Each column features single-action and total-action buttons.

◈

Automatic balancing system Industrial-grade chip control system automatically synchronizes column heights within a set error range (e.g., 25mm) for stable lifting.

Specifications

Total loading weight	Touch screen + button + remote control
One lift’s loading weight	About 21mm/s
Lifting height	Hydraulic
Operate mode	24V
Up & down speed	220V
Drive mode	Wireless analog communication
Working voltage	Mechanical lock + explosion-proof valve
Charging voltage	4 × 2.2KW
Communication mode	2.8t
Safe device	100A
Motor power	1250 × 1140 × 2320mm

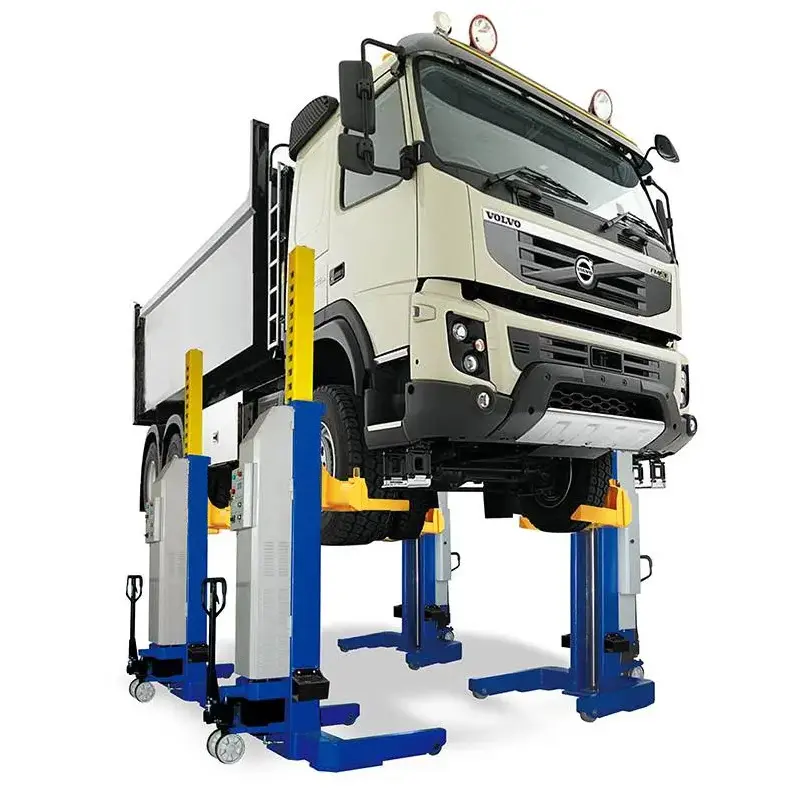

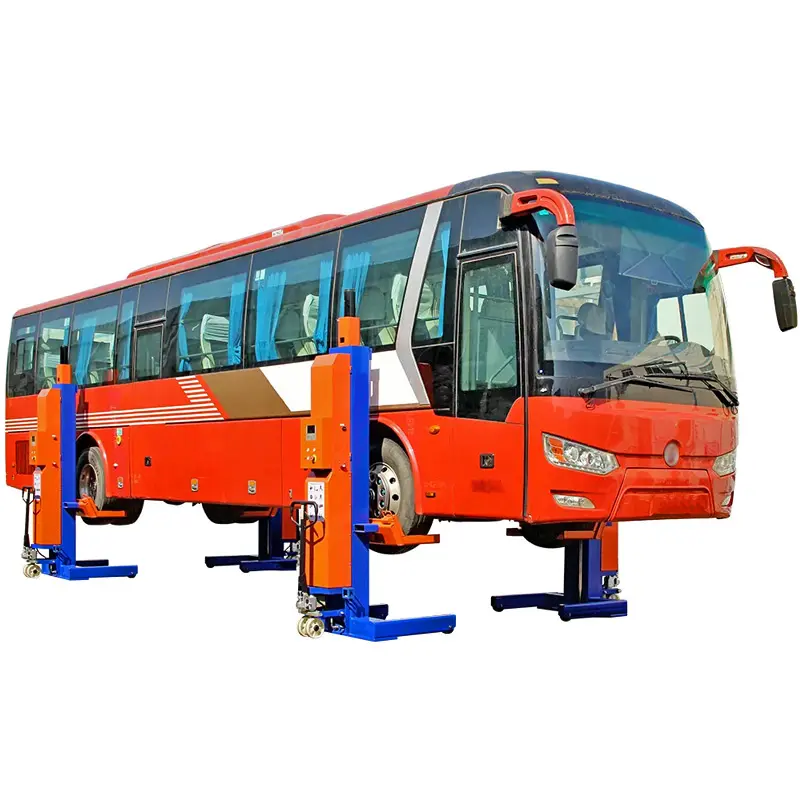

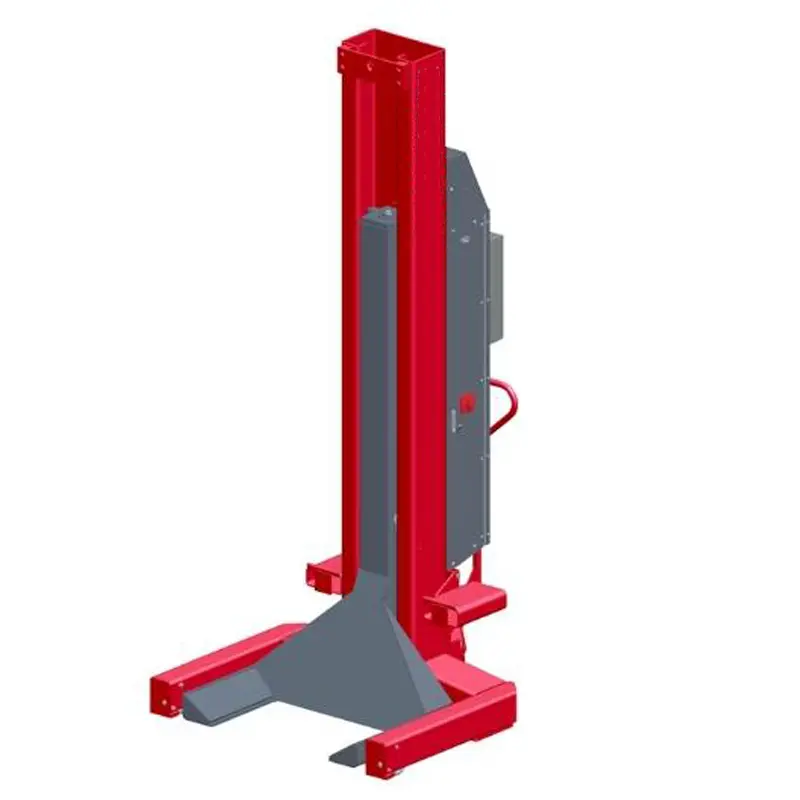

Drawing & Case

Frequently Asked Questions

How does the wireless communication ensure stability?

The system uses industrial-grade radio communication with a dual-frequency band design. This provides 32 communication channels and a backup module to ensure the lift continues to work safely even if one module fails.

What vehicle types can these columns lift?

The columns feature adjustable movable forks that can be resized to fit different tire diameters, with a maximum capacity of up to 1160mm tire diameter, making it suitable for various trucks and heavy vehicles.

What safety mechanisms prevent the vehicle from falling?

Safety is ensured through a double-load protection system: mechanical locks that engage automatically at any height and hydraulic explosion-proof valves that prevent sudden descent even in the event of a pipe burst.

Can I control the entire lift system from any column?

Yes, the system features a universal column design. Every column is equipped with the same hardware, software, and a 7.5-inch touch screen, allowing you to control the entire set from any individual unit.

Is it possible to increase the number of columns later?

Absolutely. The equipment offers flexible combination options. You can start with 4 columns and increase the set to 6, 8, or more columns depending on your specific heavy-duty lifting requirements.

How is the lifting synchronization maintained?

The system uses an industrial-grade automatic balancing chip. It monitors the height error between columns in real-time and automatically adjusts the motor speeds to keep all units synchronized within your pre-set tolerance (e.g., 25mm).

Product Detail

High-Quality Mobile Column Truck Lift Wireless Hydraulic Lift Factories, Factory

Product Description

Related Products

Product Detail

High-Quality Mobile Column Truck Lift Wireless Hydraulic Lift Factories, Factory

Product Description

Related Products

High-Quality Mobile Column Truck Lift Wireless Hydraulic Lift Factories, Factory

CE Certification 360 Degree 3000kg 4m Platform Car Turntable for Car Display Manufacturer, Product

CE Certification Portable Mid Rise Scissor Car Lift Manufacturers, Factories

CE Certification Customized Underground Scissor Lift for Trash Cans Manufacturers, Products

CE Certification Car Sliding Pallet Parking Platform Slider Manufacturers, Product

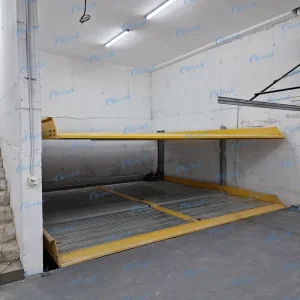

CE Certification Underground Pit Parking Stacker Lift System for 2 4 Cars Manufacturer, Product
