The CPL-2/4 parking system offers a space-efficient solution with a two-level design, accommodating either two or four vehicles. One platform remains at ground level, while the other is positioned underground. To retrieve a vehicle from the lower level, there's no need to move the car above—simply raise the lower platform to ground level. Ideal for installation in basements or pits, this system maximizes ground space and enhances parking efficiency.

Send Inquiry

Product Description

Products Feature
Parking solution feature
  • ✓ Parking solutions for basement garages in residential and commercial buildings.
  • ✓ The galvanized wave plate, paired with diamond plates, provides a better parking experience.
  • ✓ Directly driven by dual master-slave hydraulic lifting cylinders.
  • ✓ Independent hydraulic power unit and control panel.
  • ✓ Load-bearing capacity up to 2000 kg per platform for sedans.
Specifications
Model No. CPL-2 CPL-4
Lifting Capacity 2000kgs 4000kgs
Lifting Height 1885mm 1885mm
Usable Platform width 2237mm 4502mm
Overall Height 4270mm 4270mm
Overall Length 5078mm 5078mm
Overall Width 2696mm 4776mm
Power Supply/Motor Capacity 380V, 50Hz / 60Hz, 3Ph, 5.5Kw
Lock Release Electric Release
Drive Mode Hydraulic Drive + Chain
Drawing & Case Study
Technical Drawing

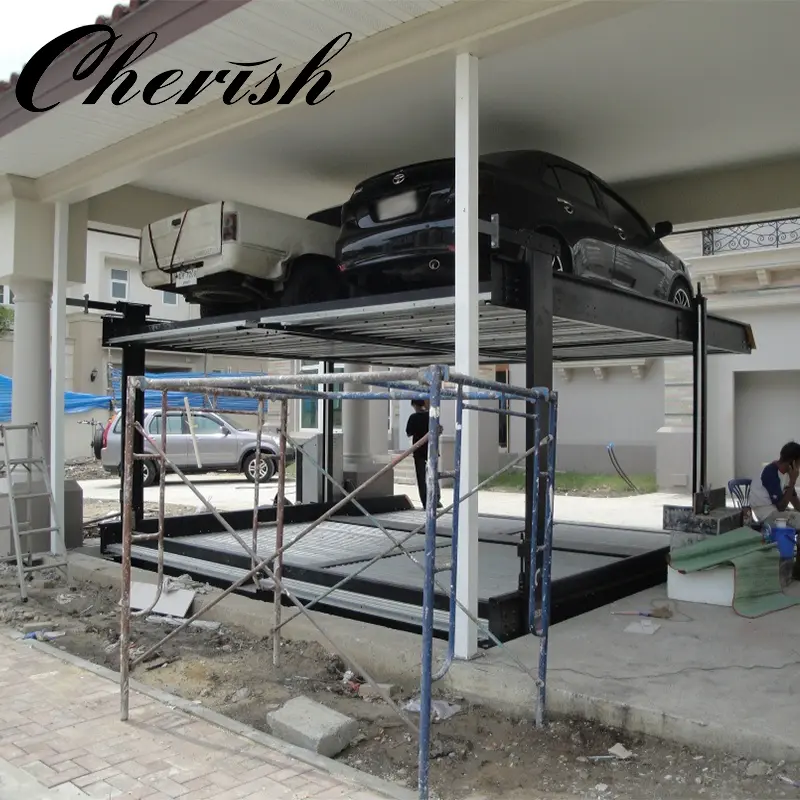

Installation Case 1
Installation Case 2
Installation Case 3
FAQ
1. What is the maximum lifting capacity for the CPL-2 model?
The CPL-2 model has a lifting capacity of 2000kg, which is ideal for standard sedans.
2. Can these lifts be installed in residential basement garages?
Yes, these parking solutions are specifically designed for basement garages in both residential and commercial buildings.
3. What kind of power supply is required for operation?
The system requires a power supply of 380V, 50Hz or 60Hz, 3 Phase, with a 5.5Kw motor capacity.
4. How does the safety lock release system work?
The lift features an electric release mechanism for the safety locks, ensuring convenient and safe operation from the control panel.
5. What materials are used for the platform surface?
The platform utilizes galvanized wave plates combined with diamond plates to provide a durable, anti-slip parking surface and a better user experience.
6. What is the lifting height of these models?
Both the CPL-2 and CPL-4 models provide a lifting height of 1885mm.
