High-Quality Double Deck 4 Post Car Lift Underground Parking Lift Factory, Product

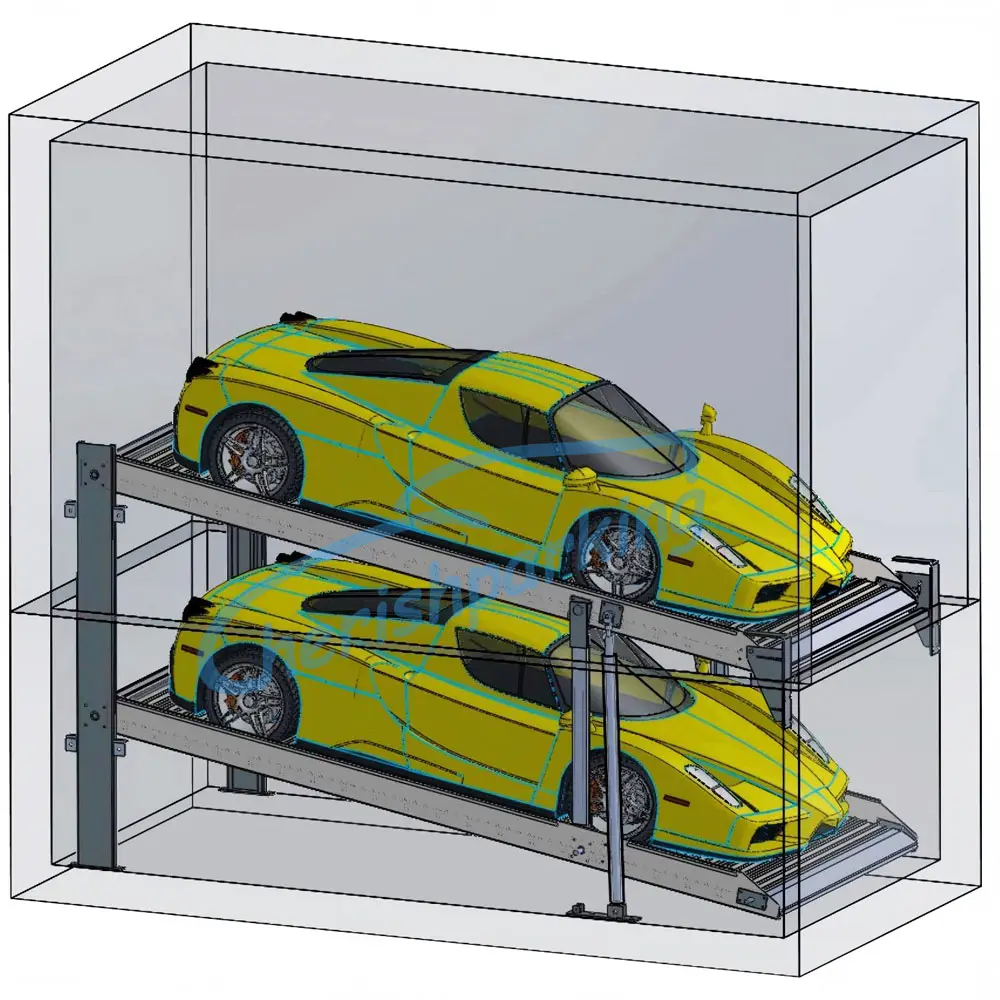

The underground parking system provides an exceptionally space-efficient solution for vehicle storage. Featuring an innovative two-tier design with a tilted platform, it requires a relatively shallow pit depth. The system is available in configurations that can accommodate either 2 or 4 vehicles. One tier sits at ground level, while the other is positioned below ground. A key advantage of this system is its convenience: to retrieve a vehicle from the lower level, there is no need to move the car parked above. Instead, the lower platform simply lifts the vehicle to ground level. This system can be easily installed in basements or pits, significantly enhancing the use of available surface space.

Product Description

Products Feature

  • A parking solution designed for basement garages in residential and commercial buildings, eliminating the need to move vehicles on the ground.
  • The combination of galvanized corrugated plates and diamond-patterned plates offers a more premium parking experience.

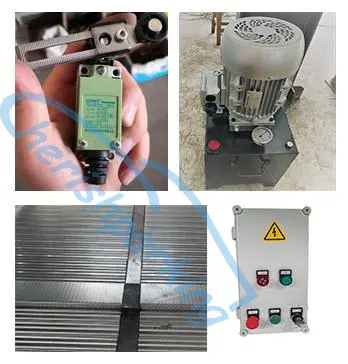

  • Directly driven by dual master-slave hydraulic lifting cylinders. Each unit is equipped with an independent hydraulic power unit and control panel.
  • Load-bearing capacity for sedans reaches up to 2000 kg. Equipment automatically stops when the operator releases the key switch.
  • Suitable for independent parking scenarios. Single platform for two cars, double platform for four cars.
  • All parking levels can be accessed in an inclined manner.
  • Low operating cost: Platforms descend via gravity, eliminating the need for an electric motor during descent.
  • Professional packaging and delivery ensure products arrive in perfect condition with simplified unloading processes.
📋

Specifications

Model No. CPT-2 CPT-4
Lifting Capacity 2000kgs 4000kgs
Lifting Height 1750mm 1750mm
Usable Platform width 2330mm 4502mm
Overall Height 4580mm 4580mm
Overall Length 5300mm 5300mm
Overall Width 2700mm 4900mm
Power Supply/Motor 380V, 50Hz / 60Hz, 3Ph, 5.5Kw
Lock Release Electric Release
Drive Mode Hydraulic Drive + Chain
📐

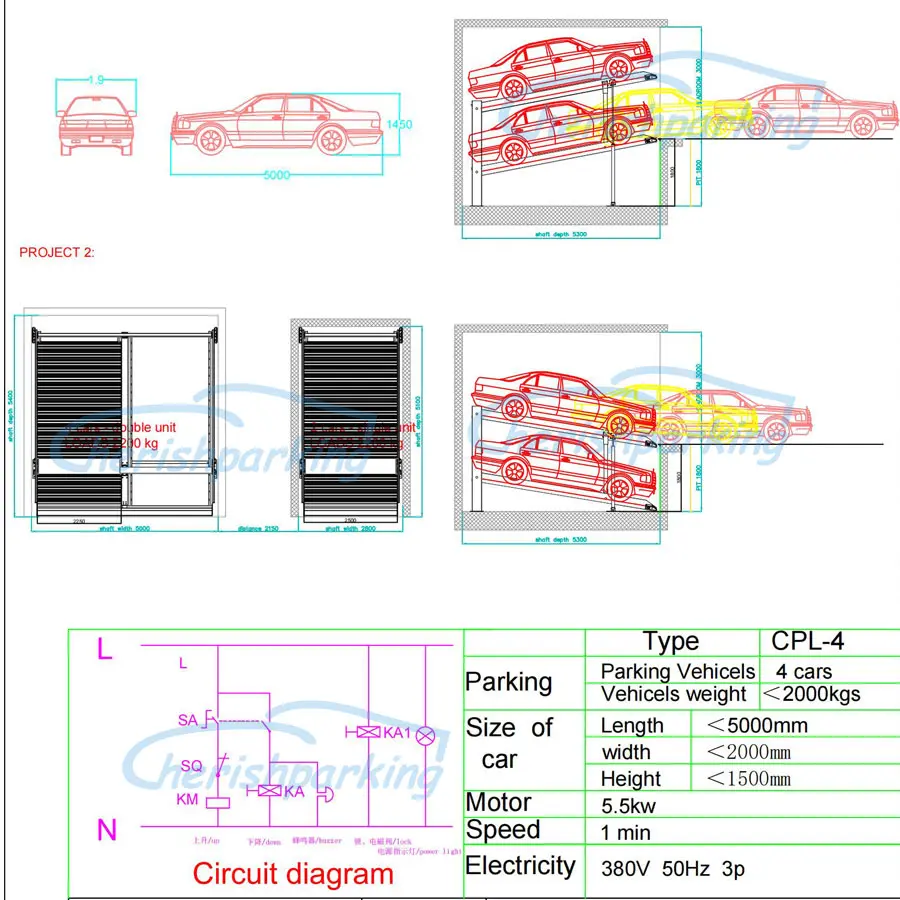

Drawing & Case

?

Frequently Asked Questions

What is the lifting capacity of these parking systems?
The CPT-2 model supports up to 2000kg, which is ideal for sedans, while the CPT-4 model can handle up to 4000kg.
Is this system suitable for residential basements?
Yes, it is specifically designed for basement garages in both residential and commercial buildings to maximize parking space without moving ground-level vehicles.
How does the system save on energy costs?
The platform utilizes gravity to descend, meaning the electric motor only runs during the lifting phase, significantly reducing operating costs.
What safety features are included?
The system includes an automatic stop function that activates as soon as the operator releases the key switch, alongside a dual master-slave hydraulic lifting cylinder setup for stability.
What kind of power supply is required?
The equipment requires a 380V, 50Hz/60Hz, 3-Phase power supply with a 5.5Kw motor capacity.
What are the platform material specifications?
The platforms use a high-quality combination of galvanized corrugated plates and diamond-patterned plates for durability and a premium finish.
