High-Quality Customized Sliding Platform Puzzle Parking System Manufacturer, Factories

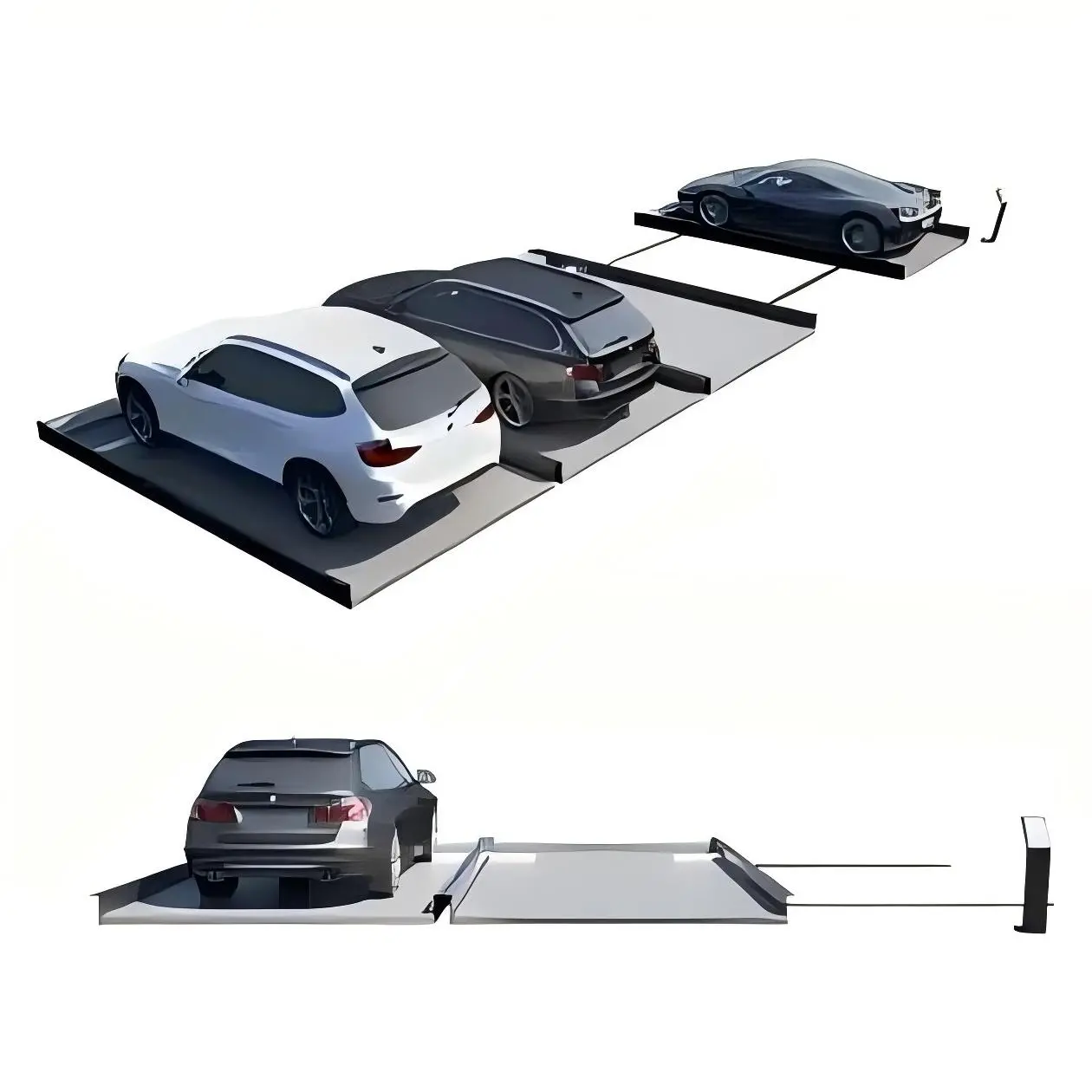

The PSH-1 sliding parking system is an intelligent device designed to maximize parking efficiency. With a load-bearing capacity of up to 2,500 kg and multiple models available, it is suitable for a wide range of vehicles and applications.

By utilizing a track-based lateral sliding mechanism, the platform makes full use of every available space in the parking lot. It can create additional parking spaces in front of existing ones, behind columns, or in unused corners, significantly boosting overall capacity.

The PSH-1 is easy to operate, controlled by simple buttons, with an optional PLC intelligent control system to manage access paths for rear parking spaces. Multiple rows can be installed at the front and back, offering flexible configurations that dramatically improve space utilization rates.

Ideal for residential complexes, commercial buildings, and urban parking facilities, the PSH-1 delivers a reliable, efficient, and cost-effective parking solution for space-constrained environments.

Product Description

Products Feature

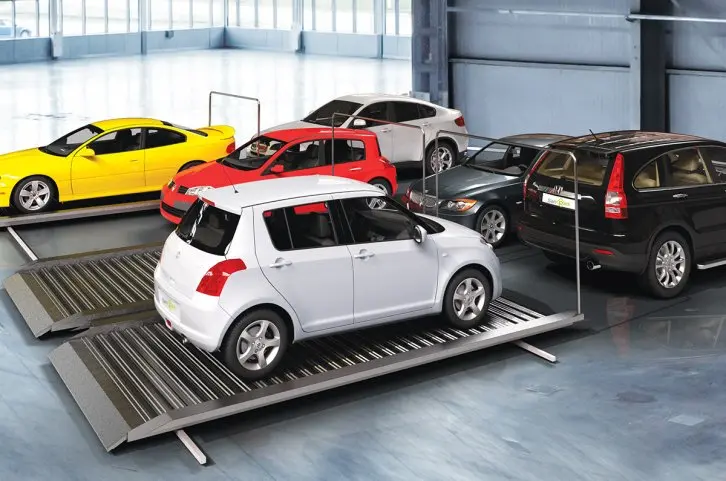

products features 1
Ideal for independent parking scenarios.
Equipped with a motorized system featuring a high-speed sliding mechanism, enabling quick and efficient operation.
Capable of increasing the number of parking spaces by up to 100%, significantly optimizing parking capacity.
Platform load-bearing capacity: 2500 kg, ensuring it can handle a wide range of vehicles.
Standard platform width is 2100 mm, with the maximum width reaching up to 2500 mm.
Allows for a maximum of three-row arrangements in a front-to-back configuration.
Operates with low noise levels, minimizing disturbances.
Ensures a high level of operational and functional safety with advanced safety features.
Features a fine-finished powder coating for durability and corrosion resistance.
Enables two-way access for greater convenience in vehicle entry and exit.
Suitable for garages of private houses, apartment buildings, and megacity residential areas.
Boosts parking capacity in underground lots for hotels, shopping malls, and office buildings.

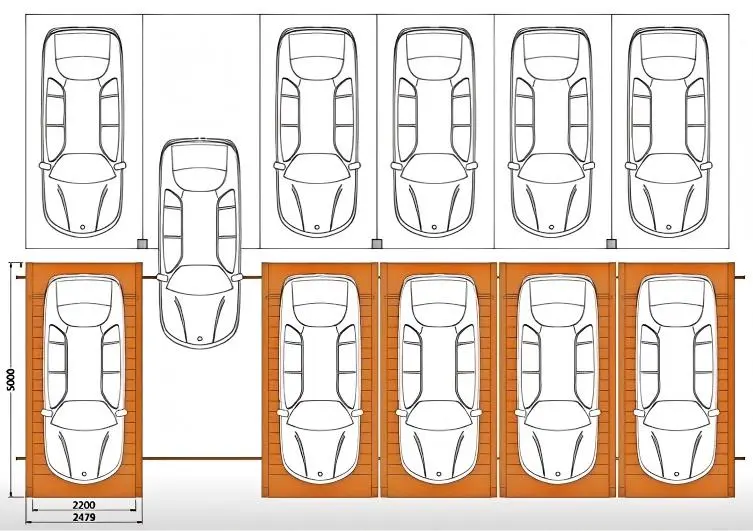

products features 2

Specifications

Model No. PSH-1
Lifting Capacity 2500kgs
Sliding Speed 7-9 M/min
Power Supply/Motor Capacity 380V, 50Hz, 3Ph
Control Mode PLC control system
Drive Mode Motor + Chain

Drawing & Case

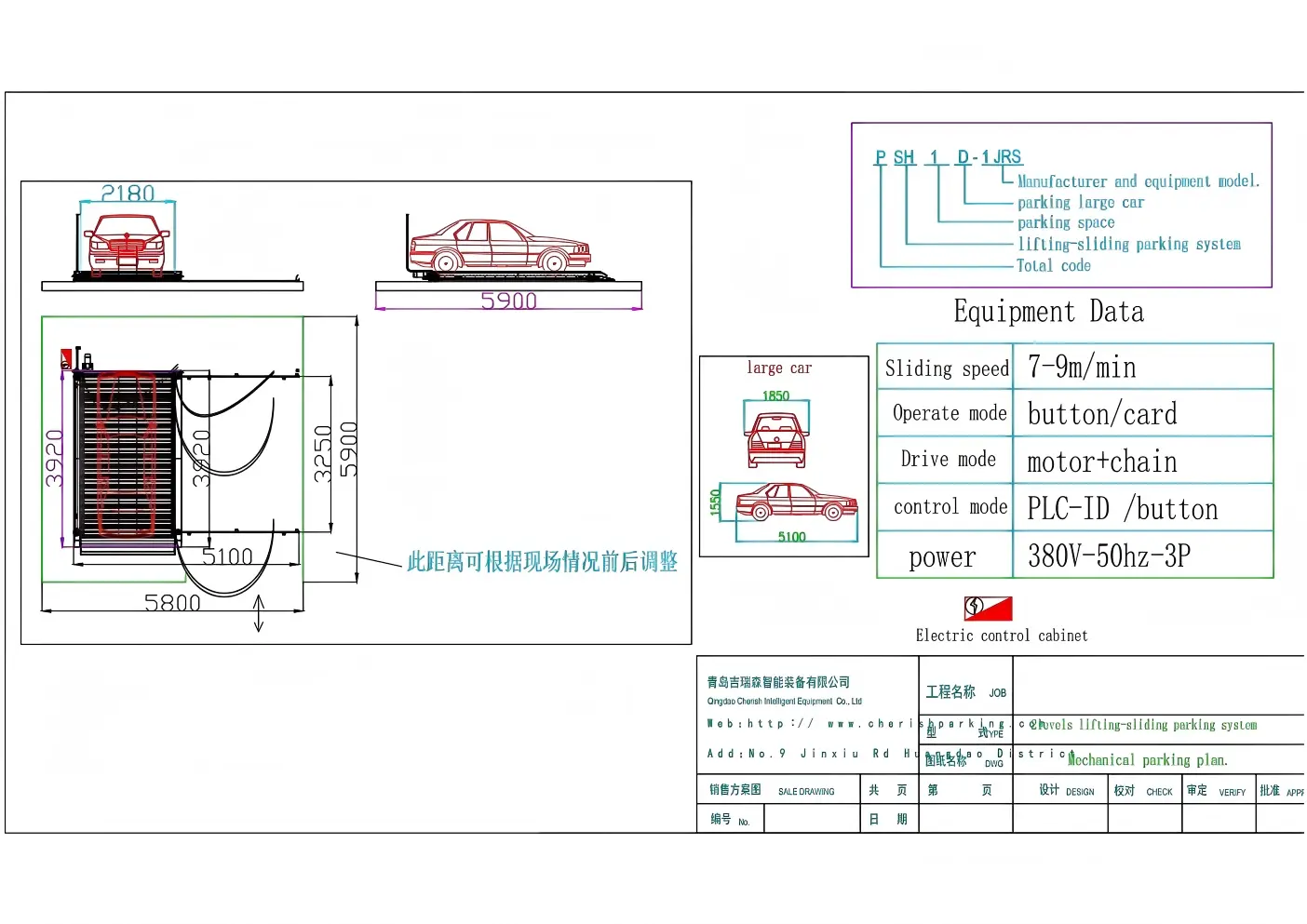

drawing

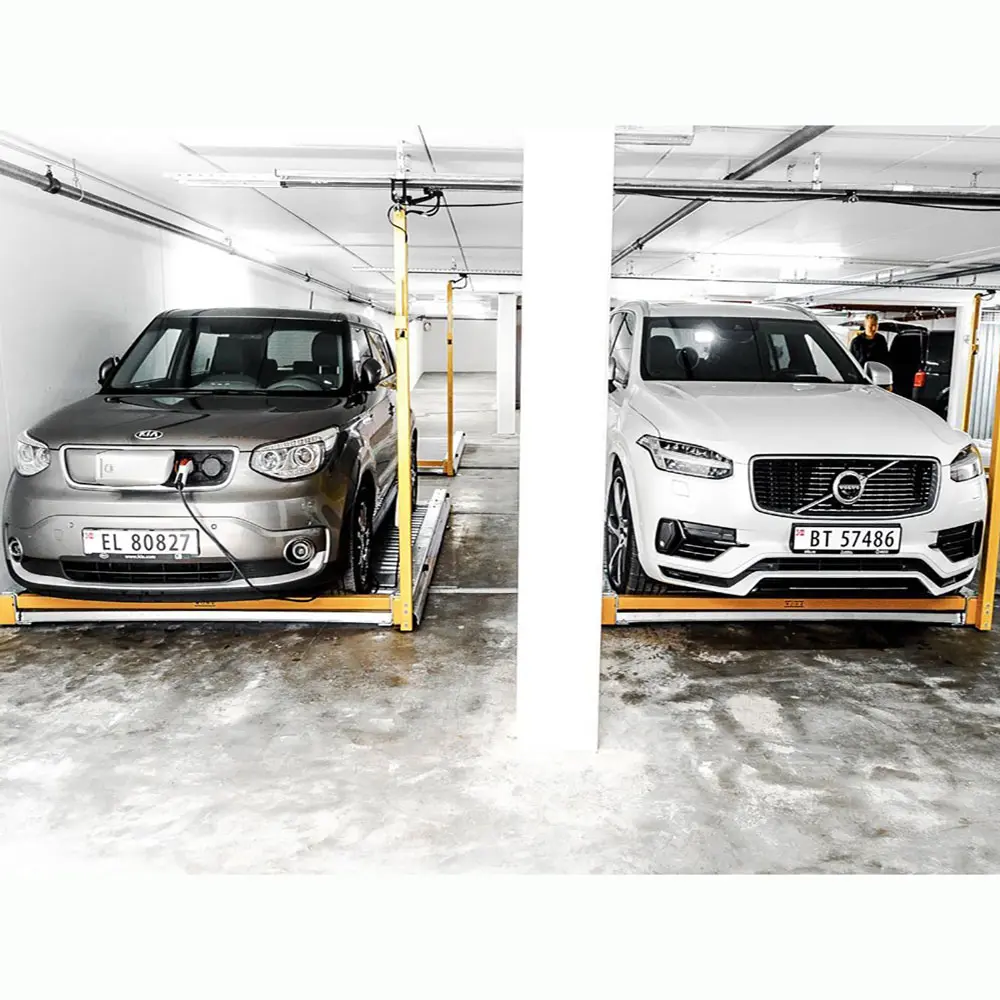

cases 1

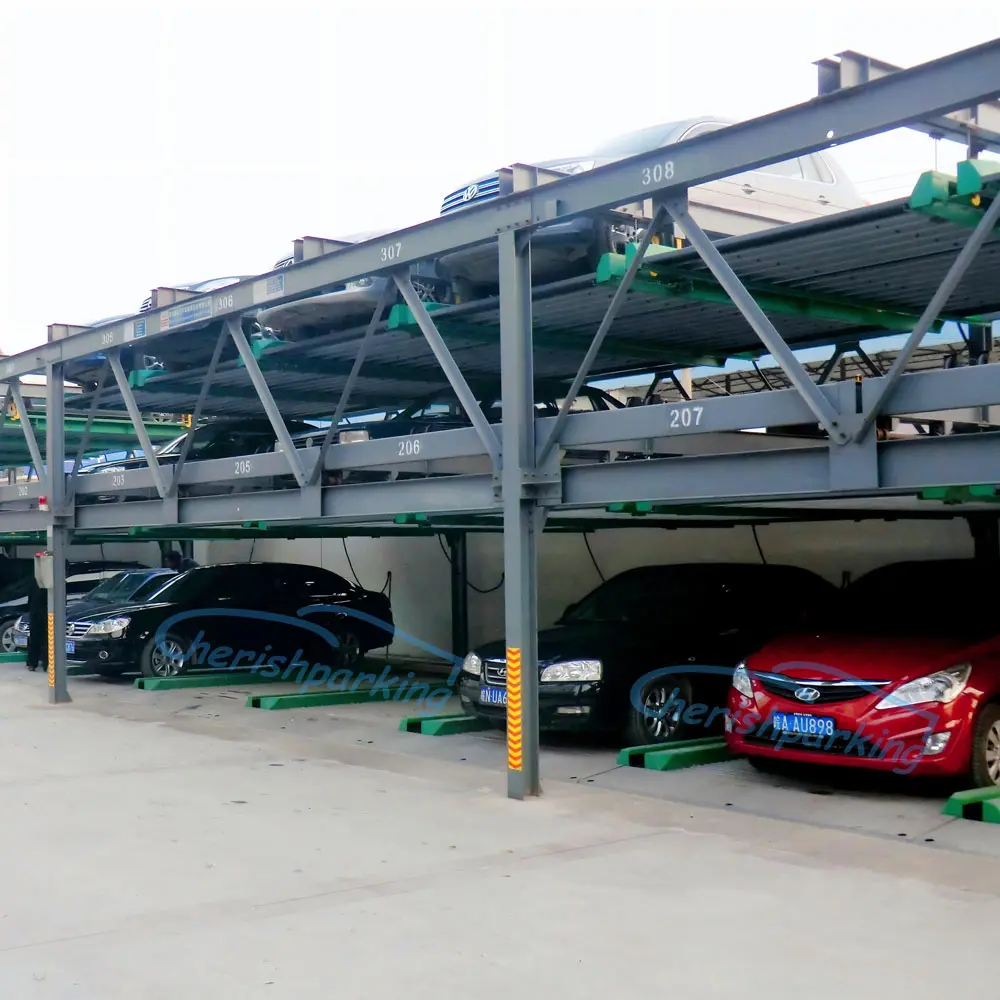

cases 2

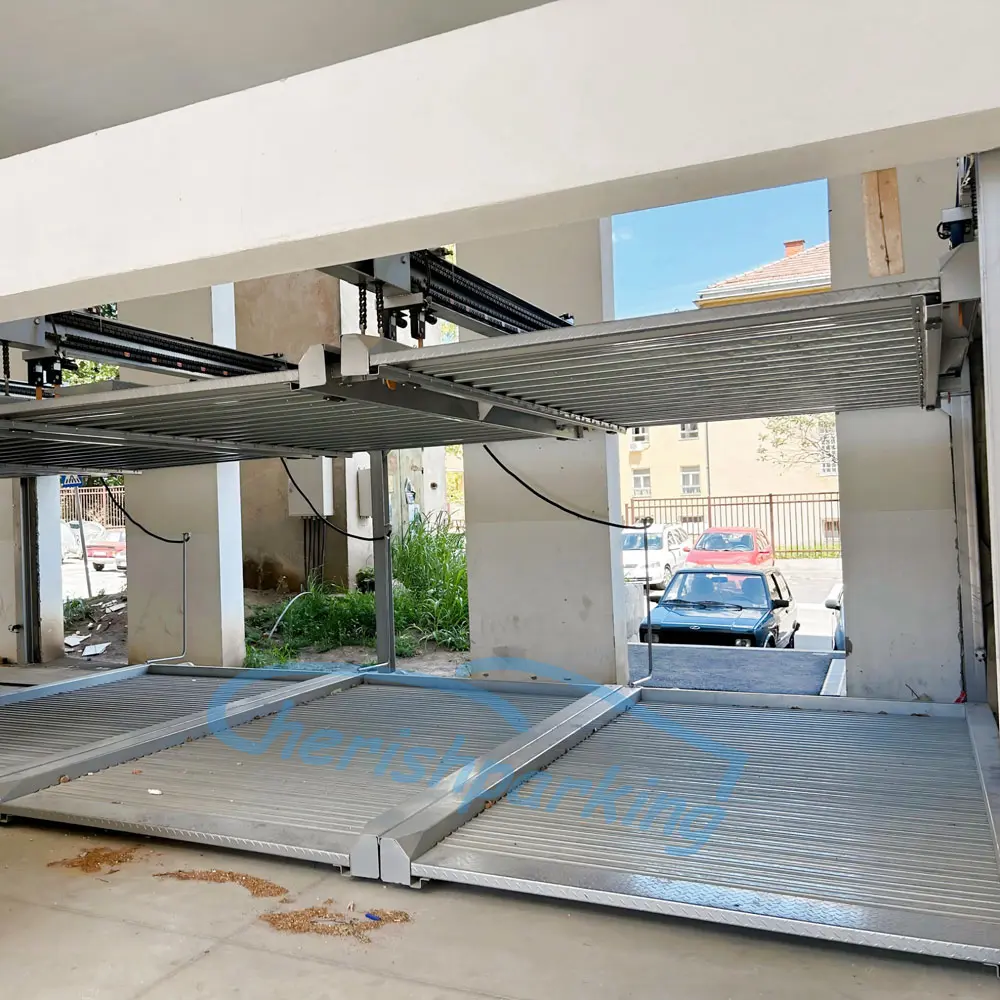

cases 3
Frequently Asked Questions
Q1: What is the maximum weight the PSH-1 can lift? A: The PSH-1 system has a platform load-bearing capacity of 2500 kg, making it suitable for a wide range of standard vehicles and SUVs.
Q2: Can the platform width be customized? A: Yes, the standard platform width is 2100 mm, but it can be increased up to a maximum width of 2500 mm to accommodate larger vehicles.
Q3: What kind of power supply is required for installation? A: The system requires a standard industrial power supply of 380V, 50Hz, 3-Phase.
Q4: Is the operation of the motorized sliding system noisy? A: No, the system is designed to operate with low noise levels, ensuring minimal disturbance in residential or commercial environments.
Q5: What are the primary applications for this parking system? A: It is ideal for private house garages, apartment buildings, and commercial underground parking lots in hotels, shopping malls, and office buildings to maximize space.
Q6: How does the control system work? A: The system utilizes a professional PLC (Programmable Logic Controller) system for precise, safe, and efficient automated movement.
