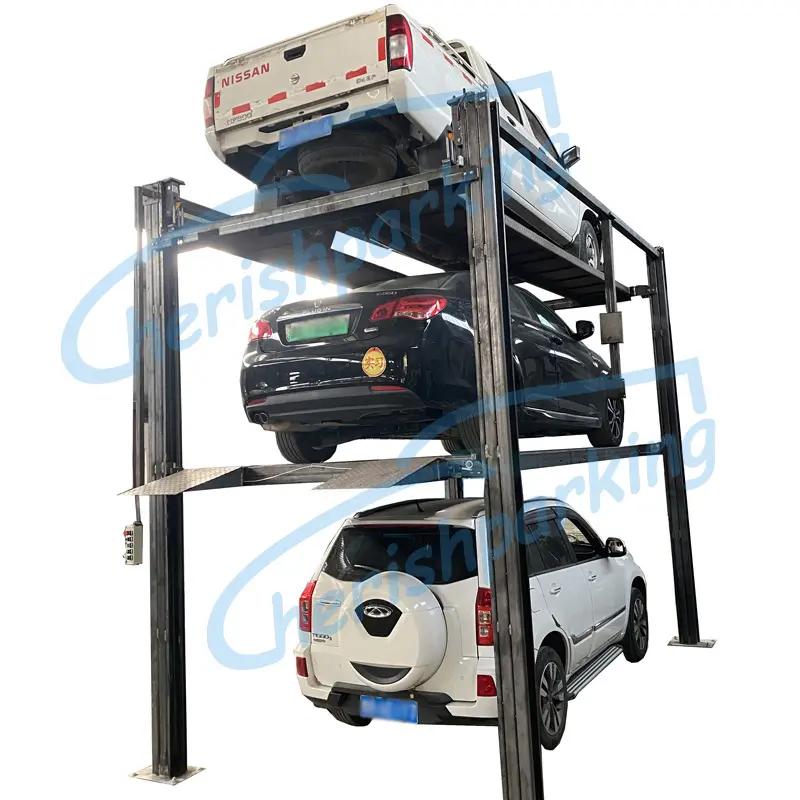

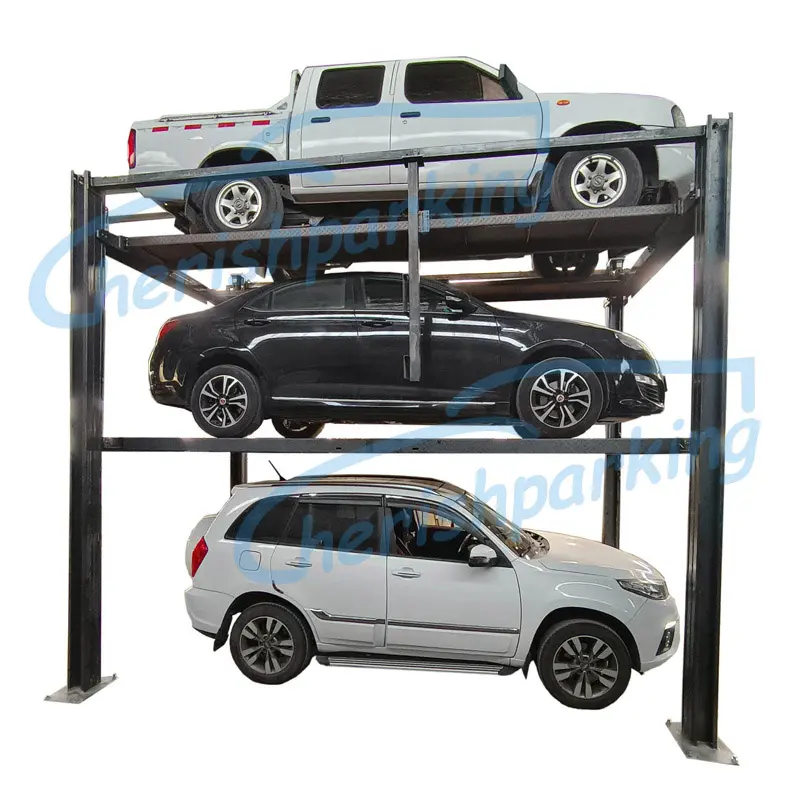

NEW CHFL4-3 Triple Level Car Stacker is specially designed for vehicle storage and valet parking, which offers a cost-effective way to triple the capacity of typical parking areas. Allowing you to park 2000kg on the upper platform, 3000kg on the lower platform, and the ground floor is unlimited. This is the perfect triple parking lift for sedans, SUVs, sport cars and vans.

Send Inquiry

Product Description

Products Features

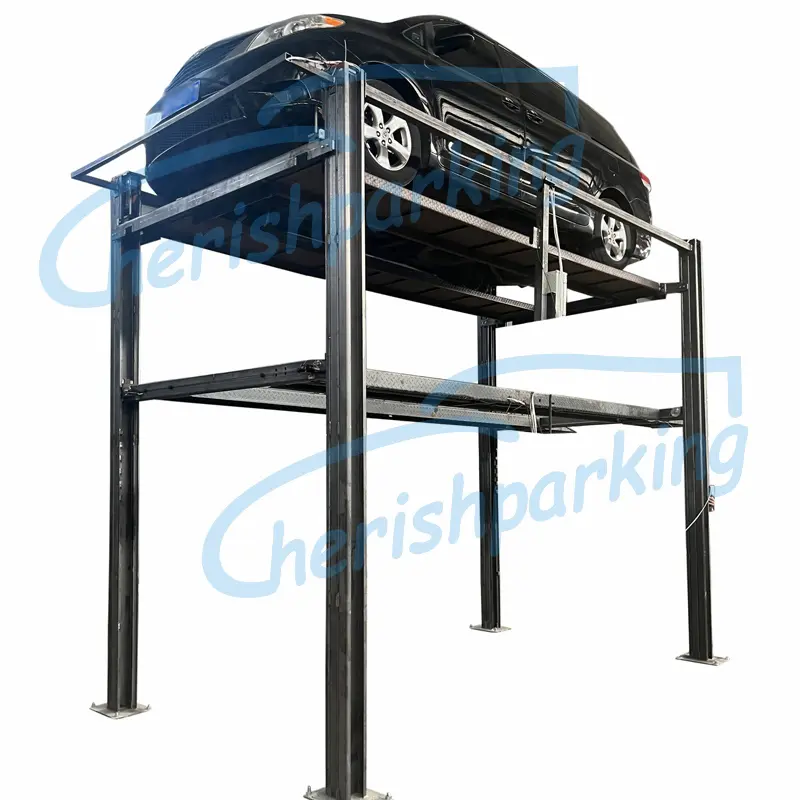

Triple Stacker Parking Lift
It perfectly triples the number of parking spaces, efficiently optimizing parking capacity.
Upper layer load capacity: 2000 kg; Lower layer: 3000 kg; Bottom layer: No restrictions.
Short-column design suitable for areas with low ceilings, solving vertical space limits.
Indoor or outdoor installation with rain shelter flexibility.
Wide-deck platform accommodates SUVs, sedans, sports cars, and vans.
Equipped with PLC control system and multiple safety locks for maximum protection.
Safety Features of Parking Lift
Photo-electric induction system prevents vehicle contact between platforms.
Hydraulic overload protection safeguards components from excessive load damage.
Specifications
Parameter CHFL4-3 Sedan CHFL4-3 SUV
Lifting Capacity Ground: Unlimited / Lower: 2700 kg / Upper: 2000 kg Ground: Unlimited / Lower: 3000 kg / Upper: 2000 kg
Ground Floor Usable Height 1600 - 2100 mm 2100 mm
Second Floor Usable Height 1300 - 1800 mm 2100 mm
Column Height 4100 mm 4896 mm
Total Length 5750 mm 6200 mm
Total Width 3000 mm 3000 mm
Usable Width 2367 mm 2367 mm
Power 220/380V 50/60HZ 1/3Ph 2.2Kw
Operation Model Key Switch + Button
Drive Mode Hydraulic Drive + Steel Wire Rope
Drawing & Case

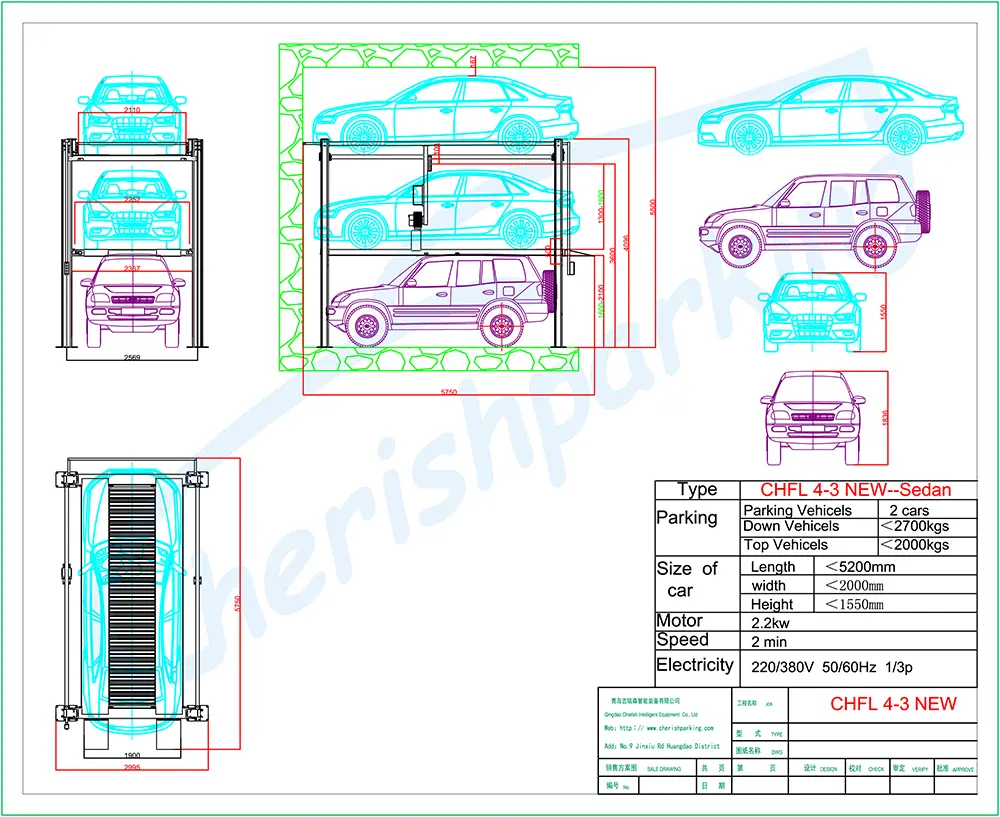

Triple Stacker Technical Drawing

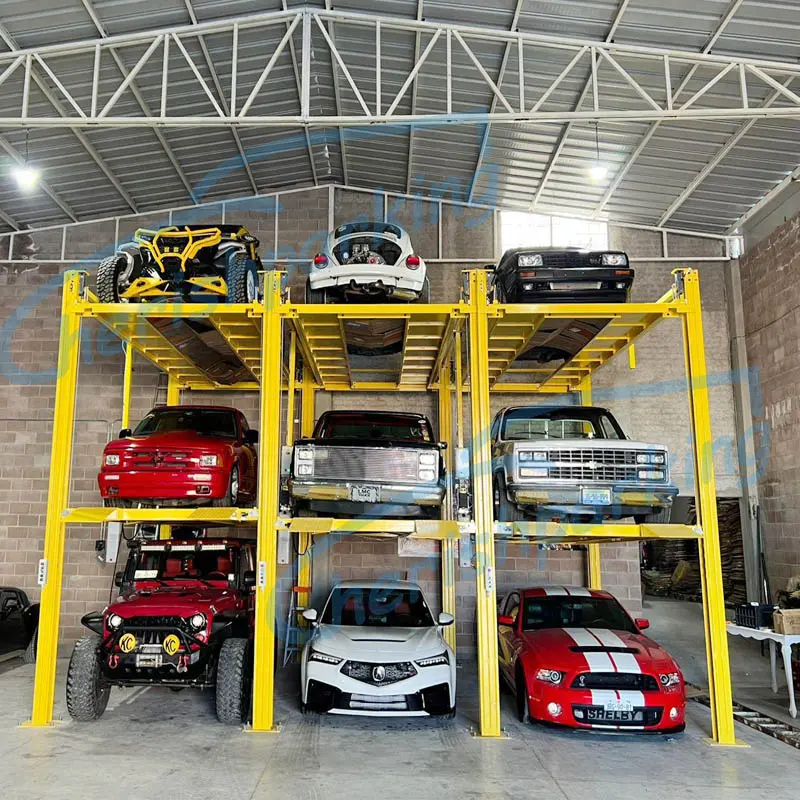

Triple Stacker Case 1

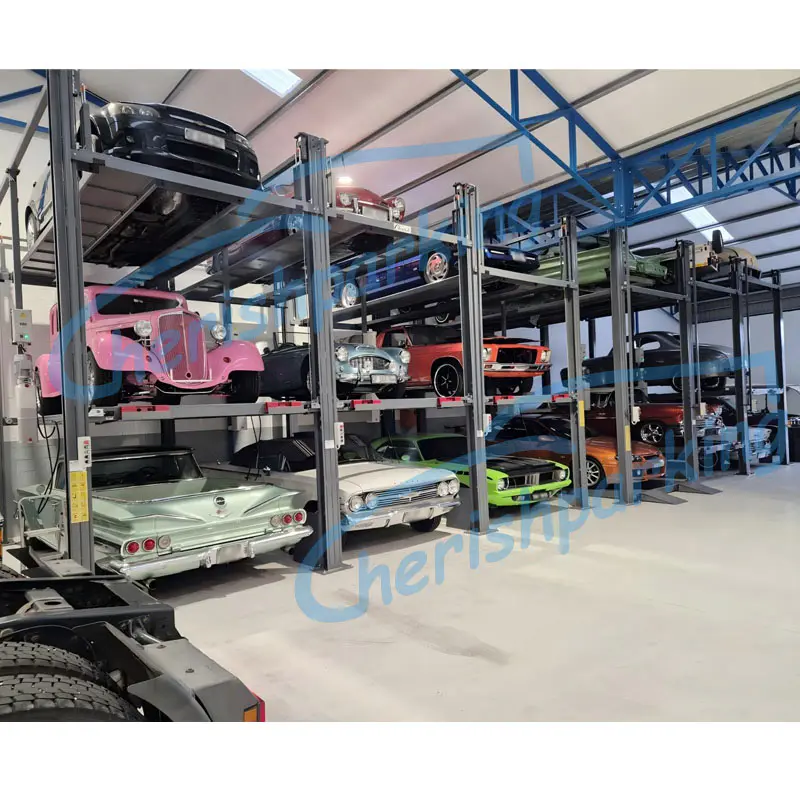

Triple Stacker Case 2

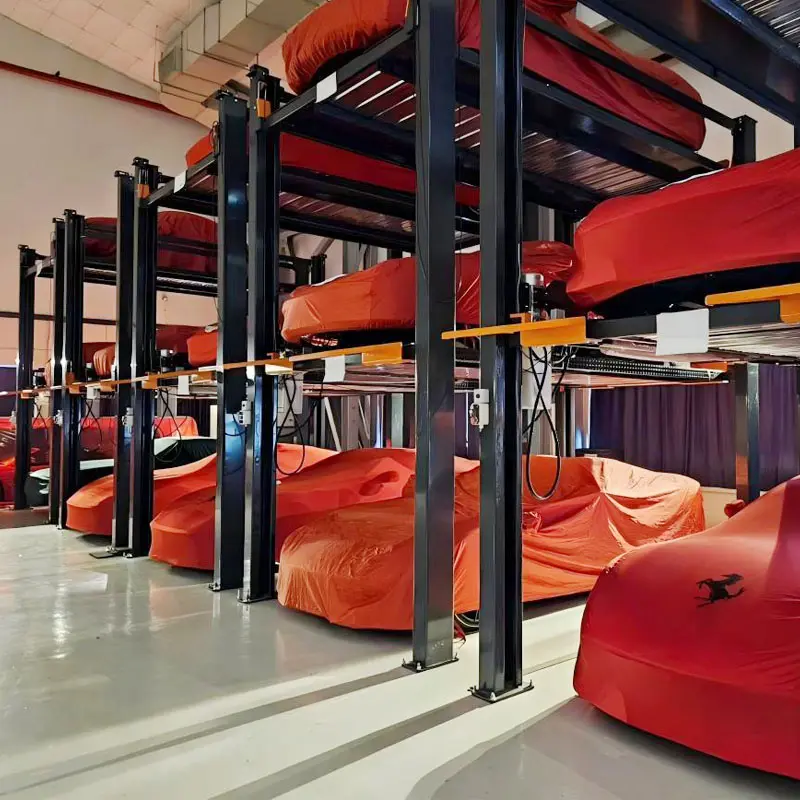

Triple Stacker Case 3
Frequently Asked Questions
How many cars can this system park?
The system triples the parking capacity, allowing up to three vehicles to be parked in a single space vertically.
What is the lifting capacity for each level?
The upper level supports up to 2000 kg, the middle/lower level supports up to 3000 kg (SUV model), and the ground floor has no weight restriction.
Can it be installed in low-ceiling garages?
Yes, the short-column design is specifically engineered for areas with limited vertical height.
Is it safe for outdoor use?
Yes, it can be installed outdoors, provided there is a rain shelter to protect the hydraulic and electrical components.
What safety features are included?
It includes 4 safety locks per platform, multiple anti-fall locks on columns, photo-electric induction, and hydraulic overload protection.
What vehicle types are compatible?
The wide-deck platform is designed to accommodate SUVs, sedans, sports cars, and vans.
