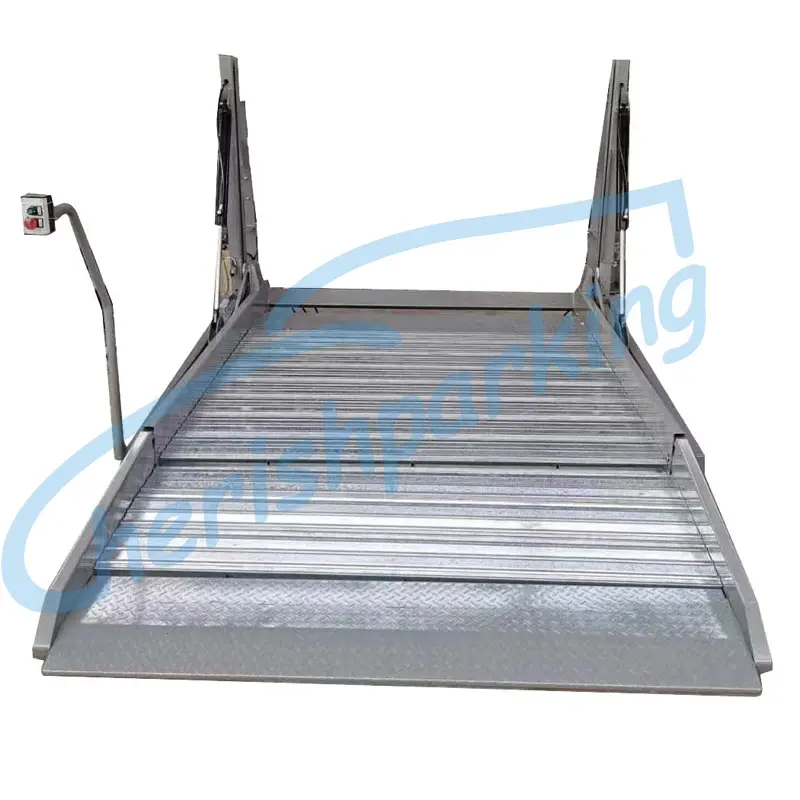

CHPLB2500 is a two - layer parking lift. Each unit has the capacity to double your parking spaces, offering an effective space - saving solution. When faced with limited ceiling clearance and restricted vehicle height, it stands out as the ideal choice. Its long - lasting durability and user - friendly operation lead to its widespread use in home garages, commercial parking lots, auto - manufacturing plants, and vehicle storage facilities.

Send Inquiry

Product Description

Products Feature

Tilting Parking Lift Feature 1
Tilting Parking Lift Feature 2
Specifically designed for low ceiling heights to address space constraints in areas with limited vertical clearance.
Mini-type inclined design suitable for basements or apartment corners with height restrictions.
Lifting capacity of 2000 kg, ideal for most common sedans.
10-degree inclined platform for ergonomic vehicle entry and exit.
Driven directly by dual hydraulic lifting cylinders for stable and efficient operation.
Equipped with separate hydraulic power unit and control panel for easy management.
Flexible design can be moved or re-positioned to adapt to different layouts.
Electric key switch and automatic shutdown if the operator releases the switch for enhanced safety.
Available electric and manual locking release options for various situations.
Includes vehicle detection sensors and sound/lighting warning systems.
Adjustable maximum lifting height and mechanical anti-fall lock at the top position.
Galvanized platform with corrugated plates for better traction and vehicle stability.

Specifications

Model No.CHPLA2500
Lifting Capacity2000 kg
Lifting Height1400-2000 mm
Usable Platform Width2000 mm
Overall Width2496 mm
Overall Length3810 mm
Power Supply / Motor220 V / 380 V, 50 Hz / 60 Hz, 1 Ph / 3 Ph, 2.2 Kw
Lock DeviceElectric Lock
Lock ReleaseElectric Release
Drive ModeHydraulic Drive

Drawing & Case

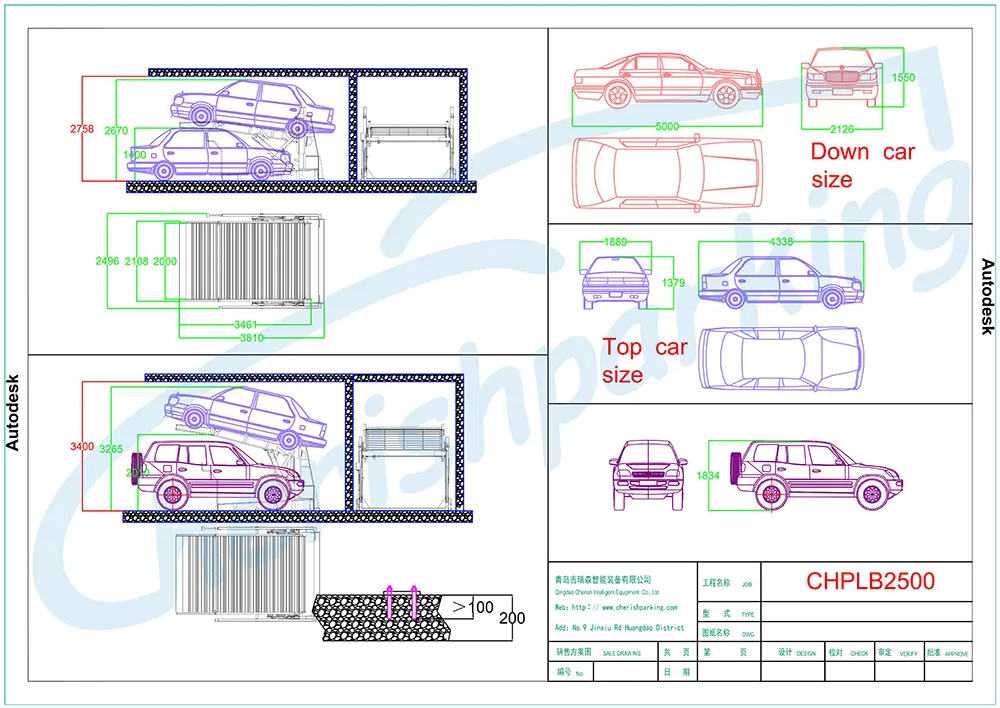

Technical Drawing

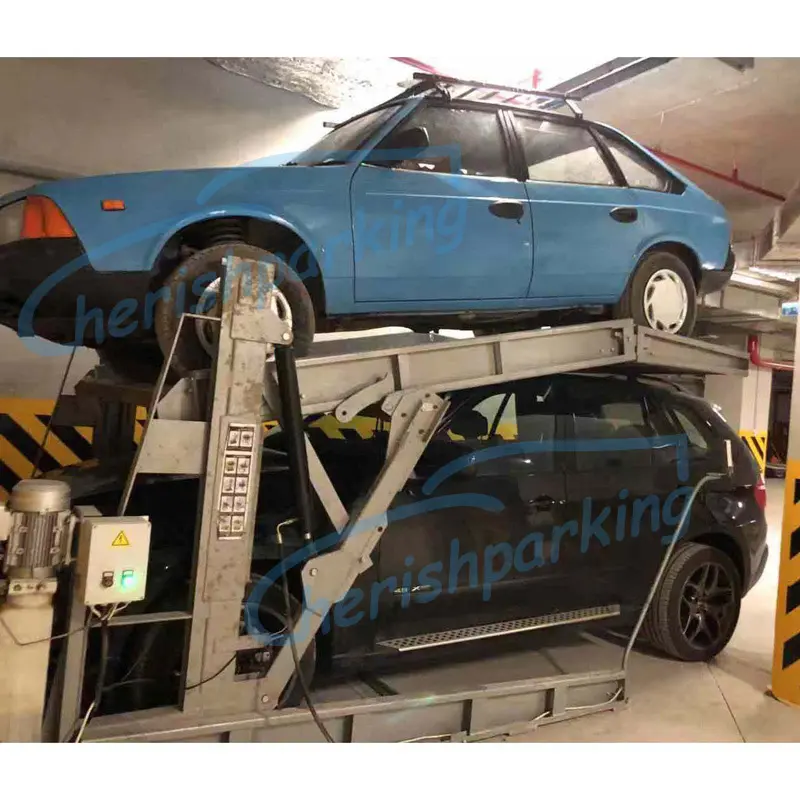

Installation Case 1

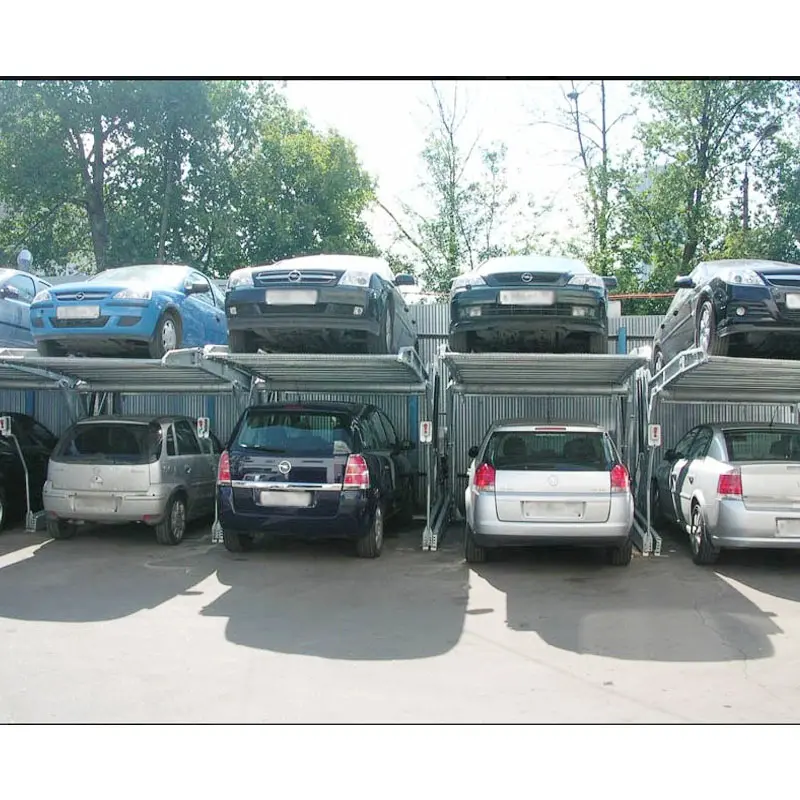

Installation Case 2

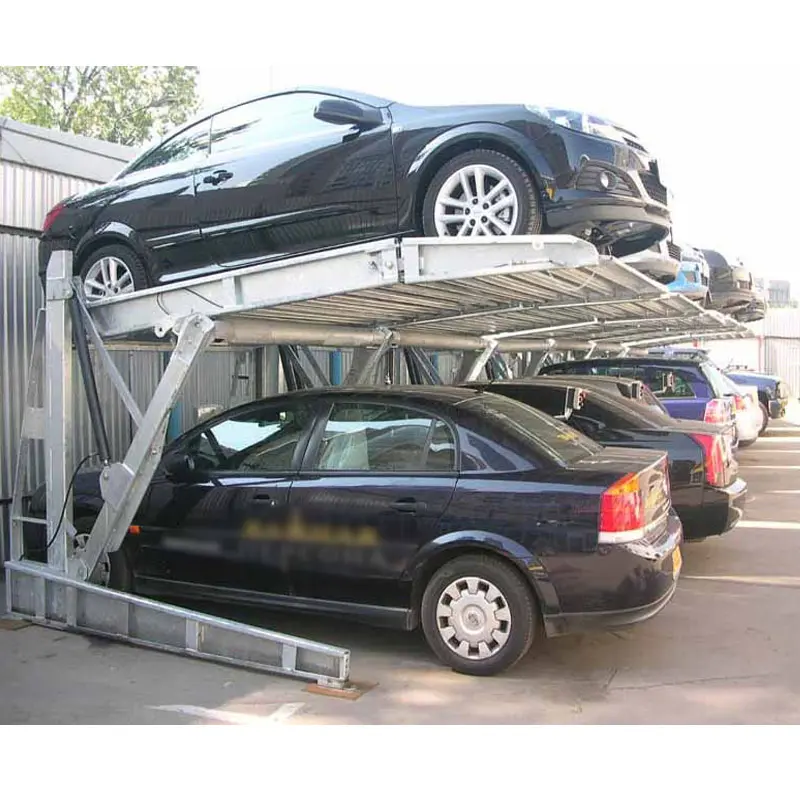

Installation Case 3

Frequently Asked Questions

What is the maximum lifting capacity of this lift?
The lift has a lifting capacity of 2000 kg, which is specifically designed to accommodate most standard sedans.
Can this parking lift be installed in areas with low ceilings?
Yes, it is specifically designed for low ceiling heights and confined spaces like basements or apartment corners.
What safety features are included to prevent accidents?
The lift includes an electric key switch, automatic shutdown upon release, mechanical anti-fall locks, vehicle detection sensors, and hydraulic overload protection.
Is the lifting height adjustable?
Yes, the maximum lifting height is adjustable to adapt to different vehicle heights and ceiling constraints.
What kind of power supply is required?
It supports multiple power options, including 220V or 380V, 50Hz or 60Hz, and both single-phase and three-phase configurations.
Is the platform durable for long-term parking?
The platform is galvanized and features corrugated plates, providing excellent traction and long-lasting protection against wear and rust.
