The CHFL3700 is a highly practical two - layer parking lift. With it, you can effortlessly double the number of parking spaces in your area. It's especially designed to handle heavy - duty vehicles, providing reliable support. Thanks to its simple and robust structure, the installation process is a breeze, saving you time and effort. What's more, its versatility extends to boat storage, allowing you to safely park and store your boats as well.

Send Inquiry

Product Description

Products Feature
Easy to operate and well-designed with a 3500 kg load-bearing capacity for various vehicles.
Adjustable platform heights to adapt to different vehicles and garage ceiling heights.
High-strength diamond-shaped steel plates for platform runways and ramps.
Anti-slip ramp surfaces enhance safety in wet or slippery conditions.
Columns equipped with anti-shake sliders for stability and reduced vibration.

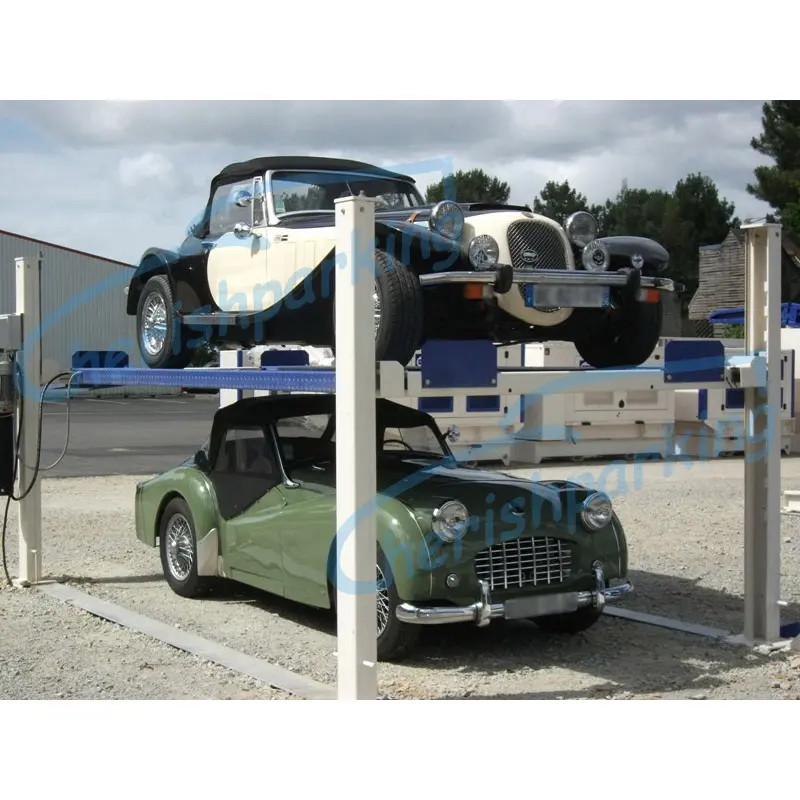

Four Post Parking Lift Detail

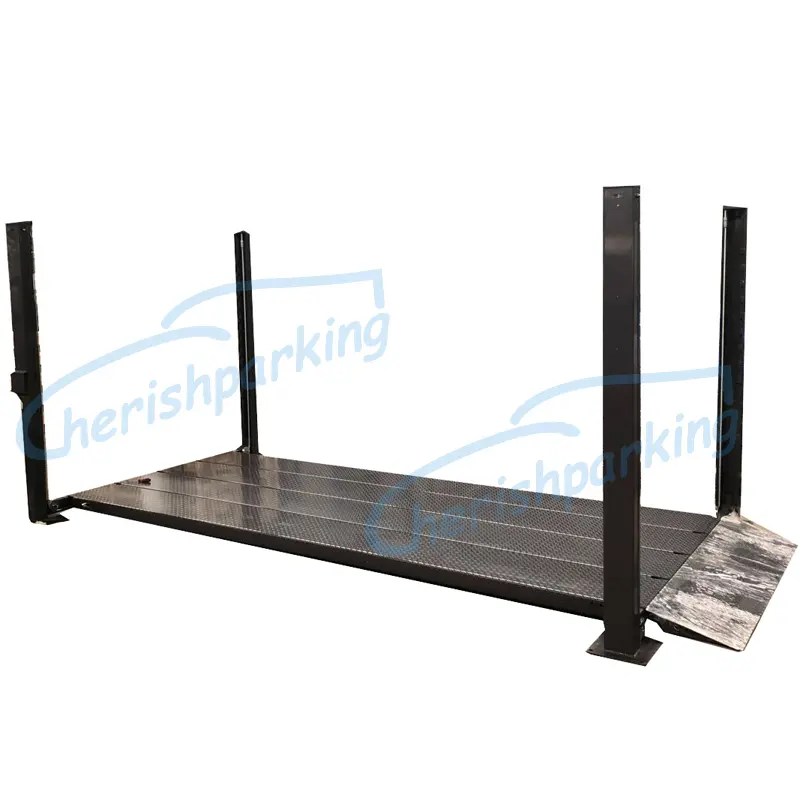

Lift Power System
Electric/hydraulic power system providing precise control and strong power.
Single hydraulic cylinder installed below the runway for a simplified structure and smooth lifting.
Anti-fall mechanical locks at various heights on all four columns for emergency safety.
Button-type pneumatic safety release for quick activation of safety mechanisms.
Durable surface treatments: powder-coated for indoor use and hot-dip galvanized for outdoor use.
Specifications
Model No.CHFL3700
Lifting CapacityMax 3500kg
Lifting Height1965mm
Height of Post2276mm
Outside Edge of Runways1897mm
Overall Width2667mm
Outside Length4883mm
Operation ModeKey Switch + Button
Power Supply / Motor Capacity220/380v, 50 / 60Hz, 1/3Ph, 2.2Kw
Drive ModeHydraulic Drive + Steel Wire Rope
Drawing & Case Study

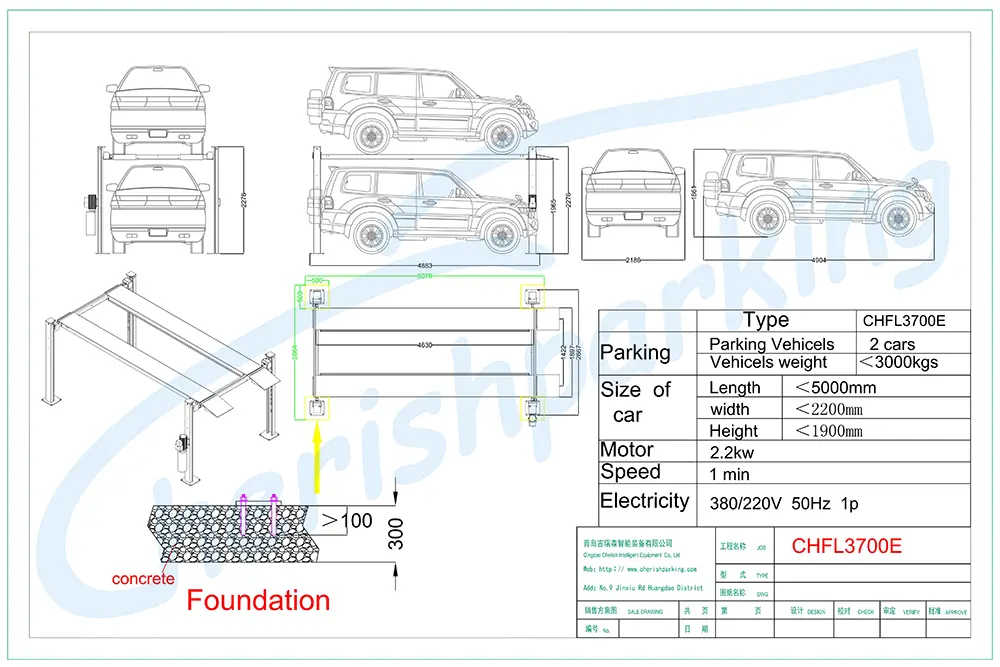

Technical Drawing

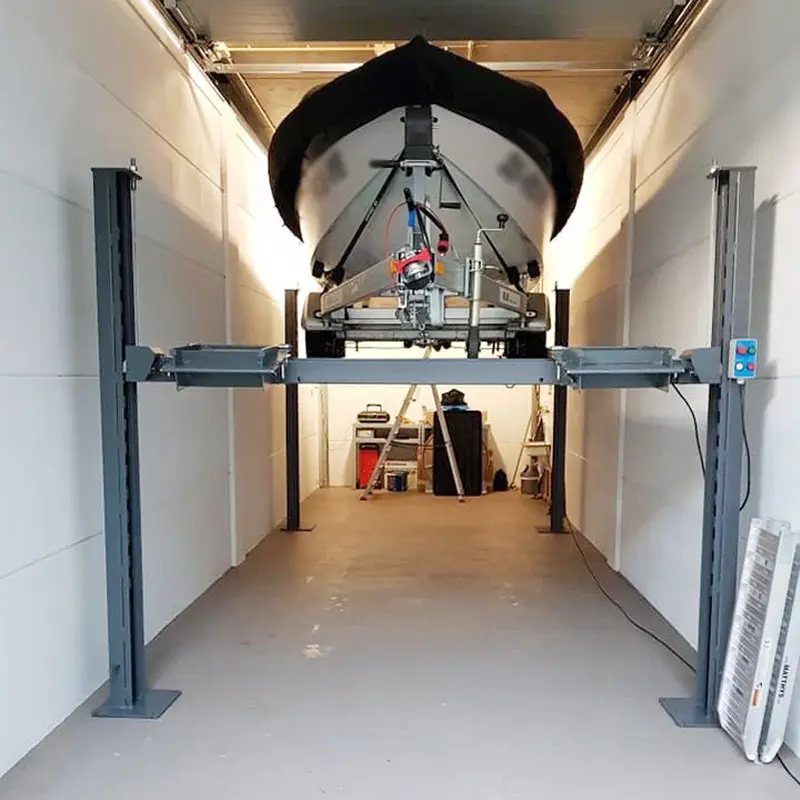

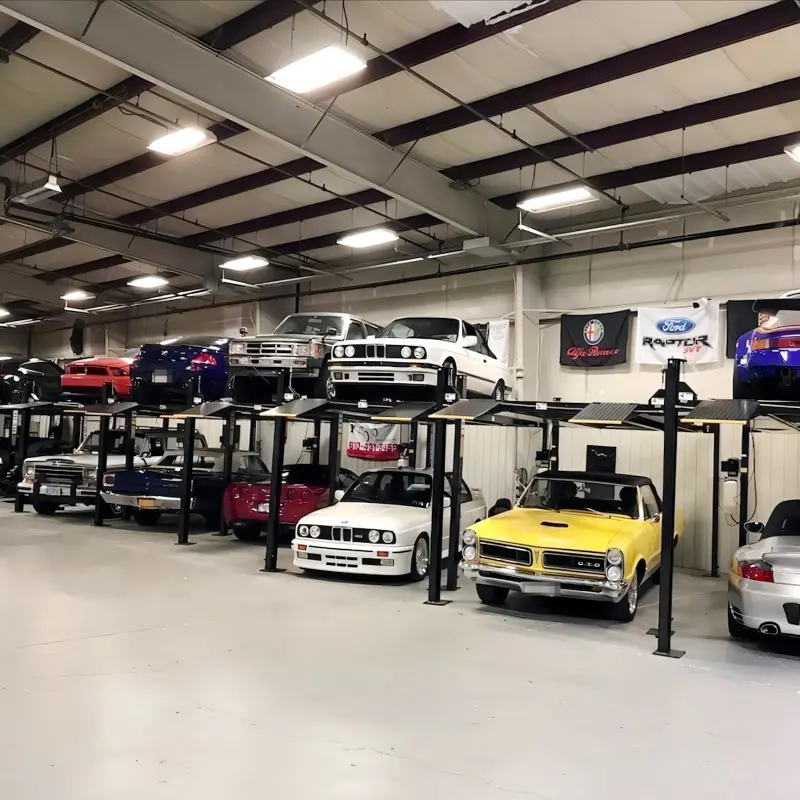

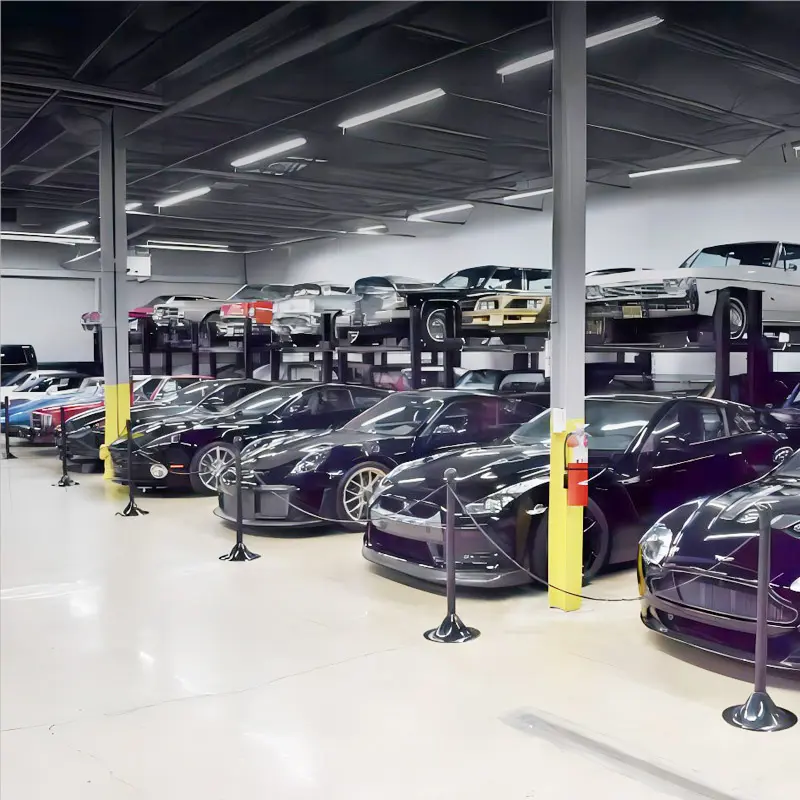

Parking Lift Installation 1 Parking Lift Installation 2 Parking Lift Installation 3
Frequently Asked Questions
What is the maximum weight the CHFL3700 lift can handle?
The CHFL3700 parking lift has a maximum lifting capacity of 3500kg, making it suitable for a wide range of vehicles, including SUVs and sedans.
Can this lift be installed in garages with low ceilings?
Yes, the platform can be stopped at different heights, allowing it to adapt to various vehicle sizes and different ceiling heights.
Is the lift suitable for outdoor installation?
For outdoor use, the lift is treated with a hot-dip galvanized surface to prevent corrosion and extend its service life in various weather conditions.
What safety mechanisms are in place to prevent the platform from falling?
The lift is equipped with anti-fall mechanical locks at multiple heights on all four columns, along with a pneumatic safety release system for emergency situations.
What kind of power supply is required for operation?
The system requires a power supply of 220/380v, 50/60Hz, either 1 or 3 Phase, and uses a 2.2Kw motor.
How does the lift maintain stability during operation?
Each column is fitted with anti-shake sliders that minimize vibrations and keep the platform stable throughout the lifting and lowering process.
