CE Certification Scissor Parking Lift Double Auto Stacker Factories, Products

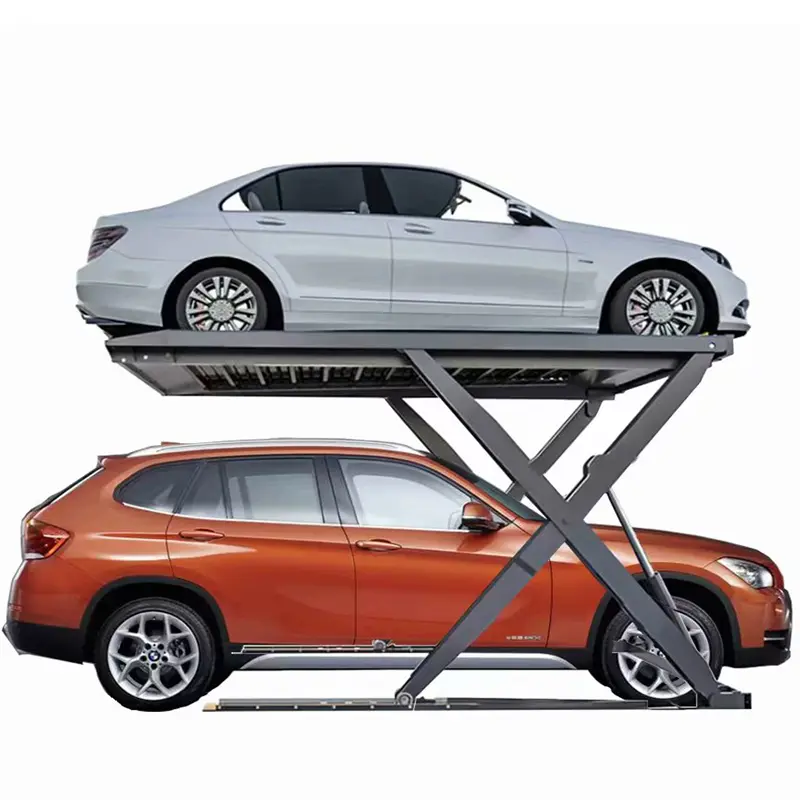

CHSPL2700 Scissor Parking Lift is a unique space-saving design that can be used for park a wide range of vehicles including SUVs, sedans, and sport cars. It allows you to make a parking space that holds just one Vehicle into a parking space that holds two Vehicles, lifting vehicles up to 6,000 lbs. (2,700 kg). Typically long-term parking is the upper level and short-term parking below. CHSPL2700 was specially designed to accommodate the needs of real estate developers, architects, automotive dealers, commercial parking operators and home garages. CHSPL2700 can be installed inside a typical standard parking space and accommodates most cars and light trucks.

Product Description

Products Feature

Scissor Parking Lift System
Independent design: It can be installed independently, offering great flexibility in various settings.
Space-saving scissor-column design: The scissor-column design minimizes installation space, making it suitable for areas with limited room.
Commercial-grade design and structure: Built with high-quality standards, it's durable and suitable for commercial applications.
Designed for concrete-surface installation: It's engineered to be installed on concrete, ensuring a stable base.
Galvanized and corrugated anti-slip platform: The platform is galvanized for corrosion resistance and has a corrugated surface for better traction.
Elevated power unit for smooth and quiet hydraulic operation: The elevated power unit provides stable and quiet hydraulic performance.
Platform adjustable to different heights: It can stop at various heights to fit different vehicles and ceiling heights.
Wide-deck platform for pickups, trucks, and cars: The wide-deck platform can accommodate different types of vehicles.
Dual-cylinder drive for faster and smoother operation: Dual-cylinder drive enables quicker and more seamless operation.
Electric key switch for safety: An electric key switch is used to ensure safe operation.
Automatic shutdown when operator releases key switch: It automatically shuts down when the operator releases the key switch.
Hydraulic overload protection: This protects the hydraulic system from overloading.
Commercial Grade Parking Lift

Specifications

Model No.CHSPL2700
Lifting Capacity6000lbs / 2700 kg
Max Lifting Height2100 mm
Usable Platform Width2115 mm
Overall Height2200 mm
Overall Length4000 mm
Overall Width2480 mm
Power Supply / Motor Capacity220V / 380V, 50Hz / 60Hz, 1Ph / 3Ph, 2.2Kw 50/45s
Lock DeviceMultistage Dynamic Lock
Lock ReleaseElectric Release (Also could choose manual release)
Drive ModeHydraulic Drive

Drawing & Case

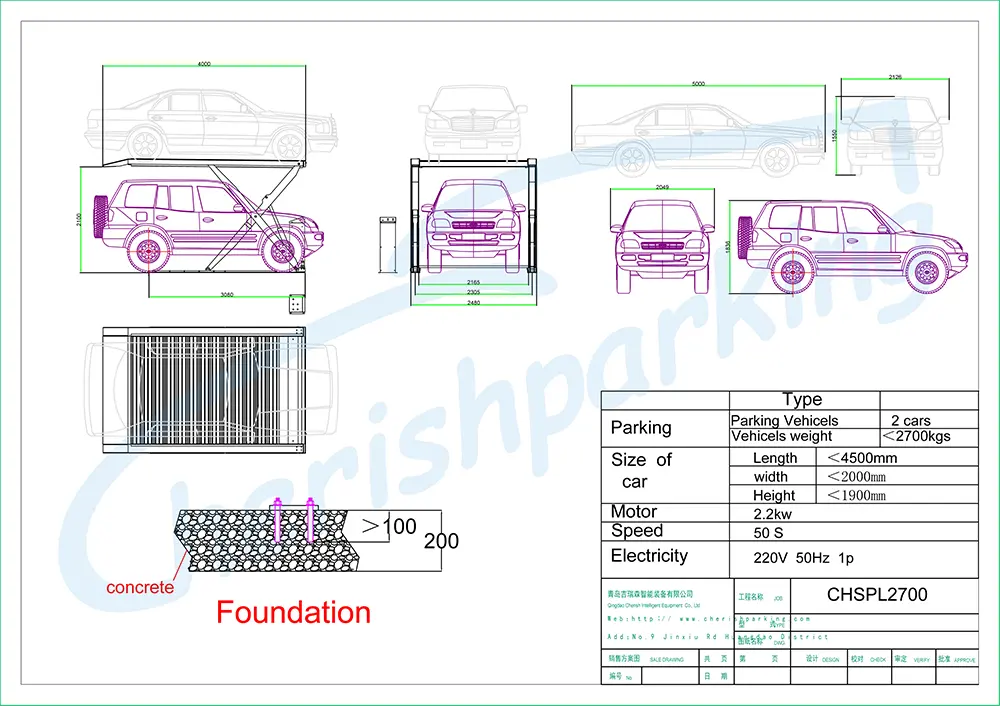

Technical Drawing
Installation Case 1
Installation Case 2

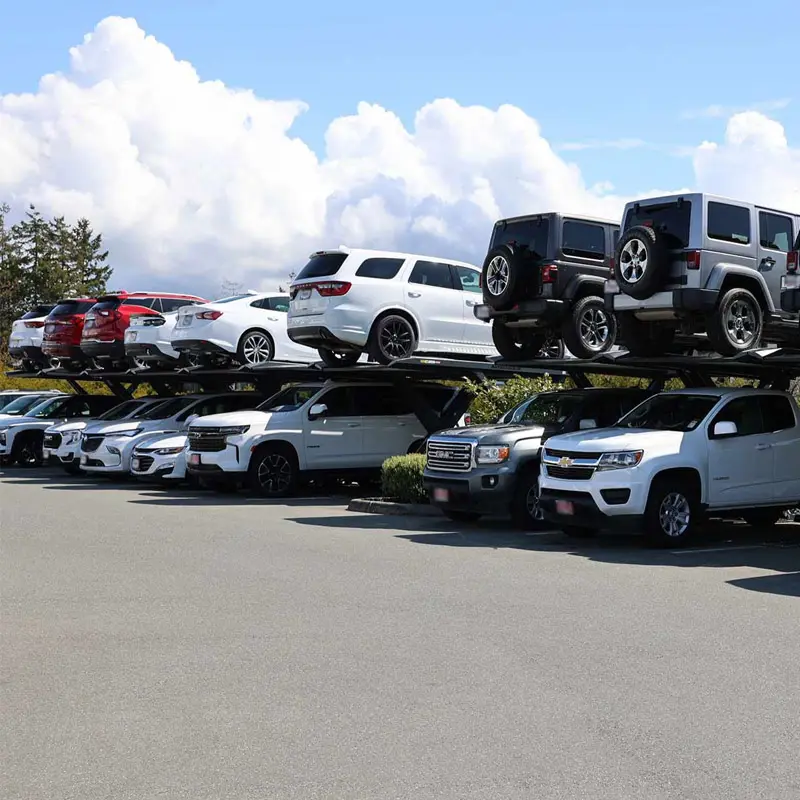

Installation Case 3

Frequently Asked Questions

What is the lifting capacity of the CHSPL2700 model?
The lifting capacity is 6000lbs or 2700 kg, making it suitable for a wide range of vehicles including pickups and SUVs.
Can the platform height be adjusted for different ceiling heights?
Yes, the platform is adjustable to various heights, allowing it to stop at positions that best fit your specific vehicle height and available ceiling space.
What kind of surface is required for installation?
This scissor parking lift is specifically engineered for concrete-surface installation to ensure maximum stability and safety.
How does the safety lock system work?
The unit utilizes a Multistage Dynamic Lock device for security. It comes standard with an electric release system, though a manual release option is also available.
Is the platform protected against corrosion?
Yes, the platform is galvanized for superior corrosion resistance and features a corrugated anti-slip surface for improved vehicle traction.
What are the power requirements for this lift?
The system supports both 220V and 380V power supplies (50Hz/60Hz, 1Ph or 3Ph) with a 2.2Kw motor capacity.
