High-Quality Triple Level Four Post Parking Lifts Car Stacker Product, Products

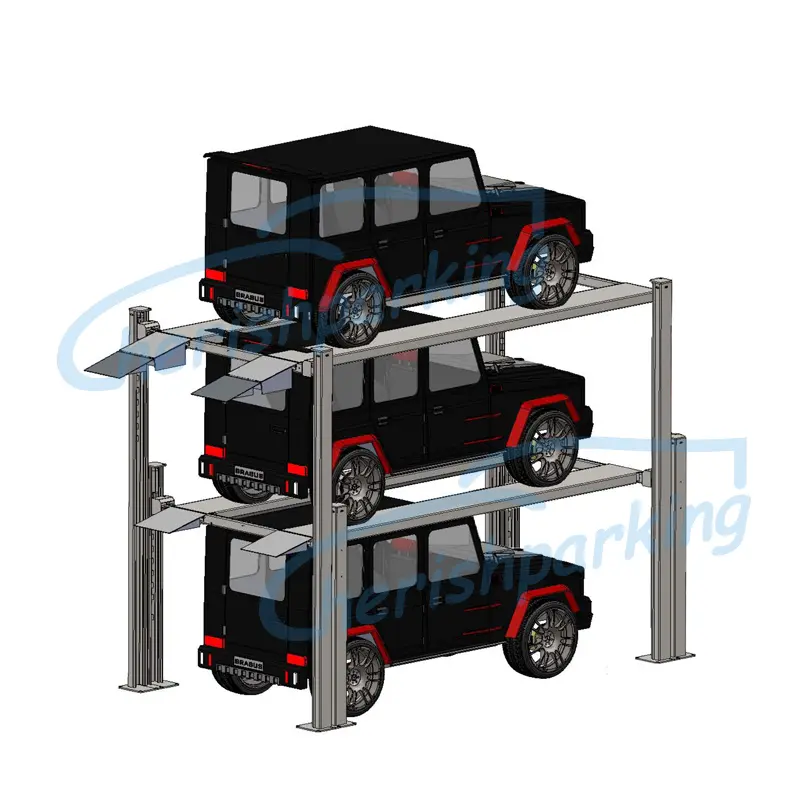

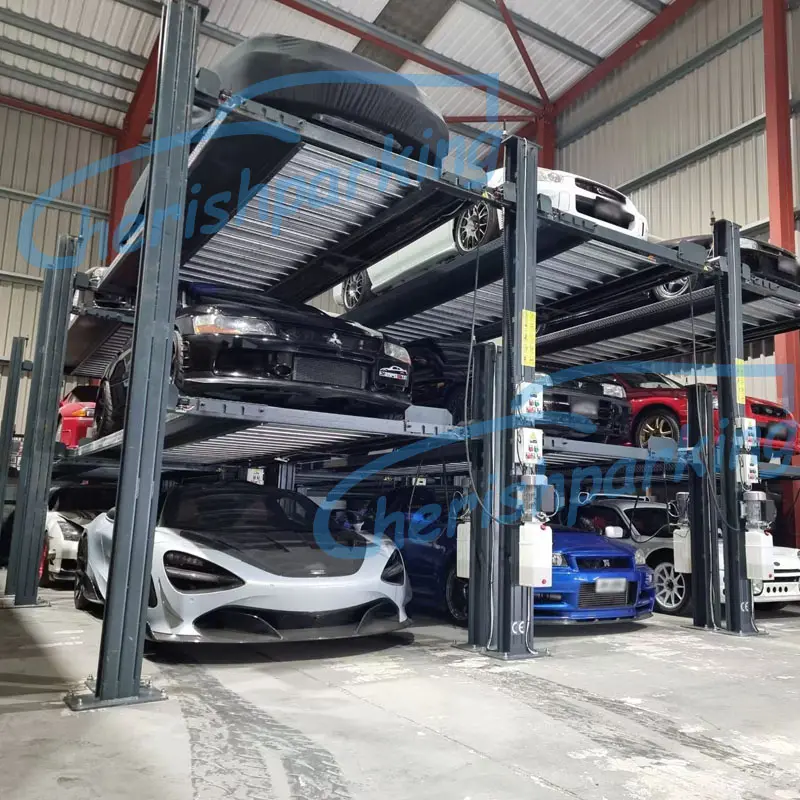

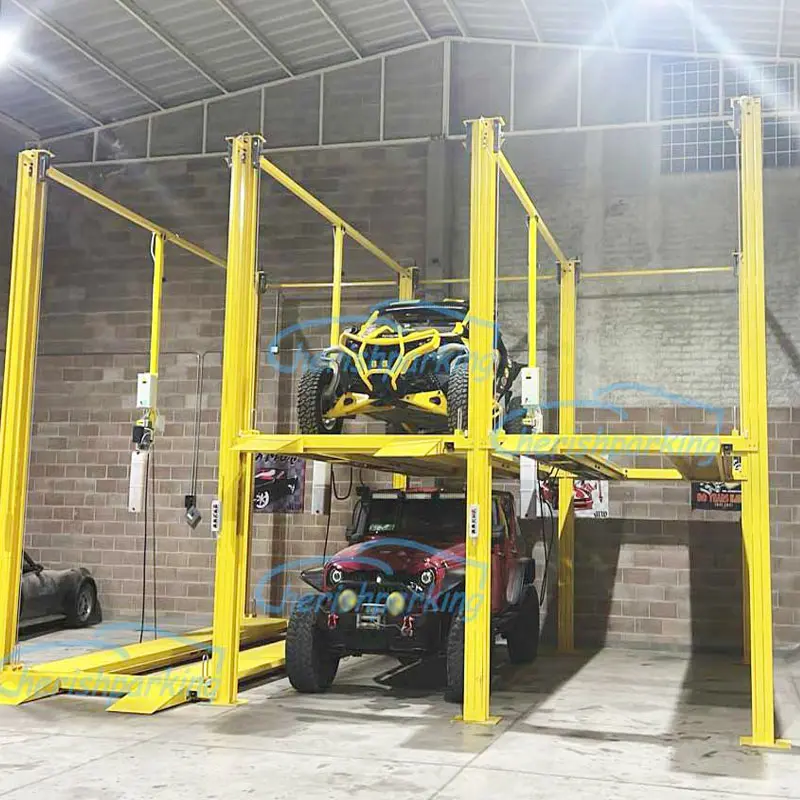

The four post parking lift is a triple car stacker that enables three vehicles to be parked within the footprint of a single parking space. Offering an ideal solution for maximizing storage capacity while minimizing space usage, it is cost-effective, easy to install, and equipped with comprehensive safety features. Perfect for car storage facilities, rental areas, valet parking, commercial sites, and car dealerships.

Send Inquiry

Product Description

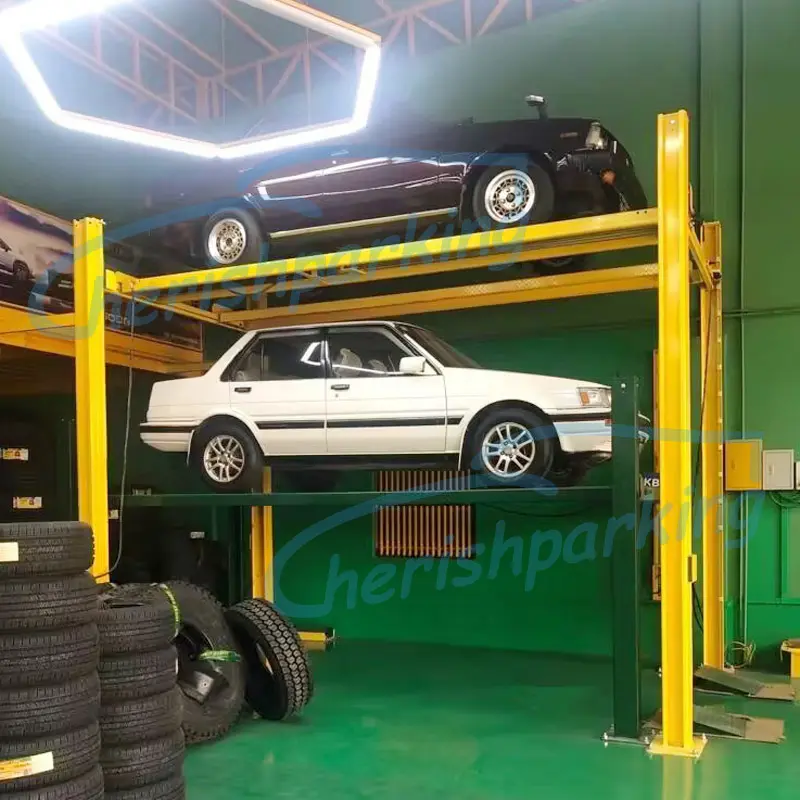

Products Feature

It can be applied in homes, commercial settings, and vehicle storage facilities, catering to a wide range of needs.
Two independent 4 - post parking lifts are installed together, one on the top and the other at the bottom, optimizing space utilization.
Hydraulic drive cylinders, combined with a pulley - wire rope lifting system, ensure smooth and stable lifting operations.
There is an automatic locking system for the internal latch of the ladder. Meanwhile, the electromagnetic lock can be released via a button on the operation box for easy access.

The hot - dip galvanized and corrugated platform is not only safe but also has a long service life, resistant to wear and tear.
The foldable ramp is designed for sports cars, taking up less space while facilitating vehicle entry and exit.
The anti - slip corrugated deck protects vehicles and drivers from potential slips and damage, enhancing safety during use.
Italian oil seals are used to ensure no oil leakage. The piston rod is chrome - plated to prevent corrosion, guaranteeing its long - term performance.

Specifications

Model: CHFL4-3	Upper Platform	Lower Platform
Lifting capacity	Ground floor unlimited, 2nd floor 3000kg, 3rd floor sedan 2000kg
Total width	2671 mm
Outside length	6120 mm
Height of post	3836mm	2276mm
Maximum lifting height	3540mm	1960mm
Distance between posts	2353mm
Runway width	473mm
Runway length	4630mm
Motor Power	2.2 kw
Power Supply	220V, 50Hz, 1 Ph (special voltages available upon request)
Surface treatment	Powder coating or galvanizing
Operation Model	Key switch + control button
Safety	4 safety lock per floor and auto protection device

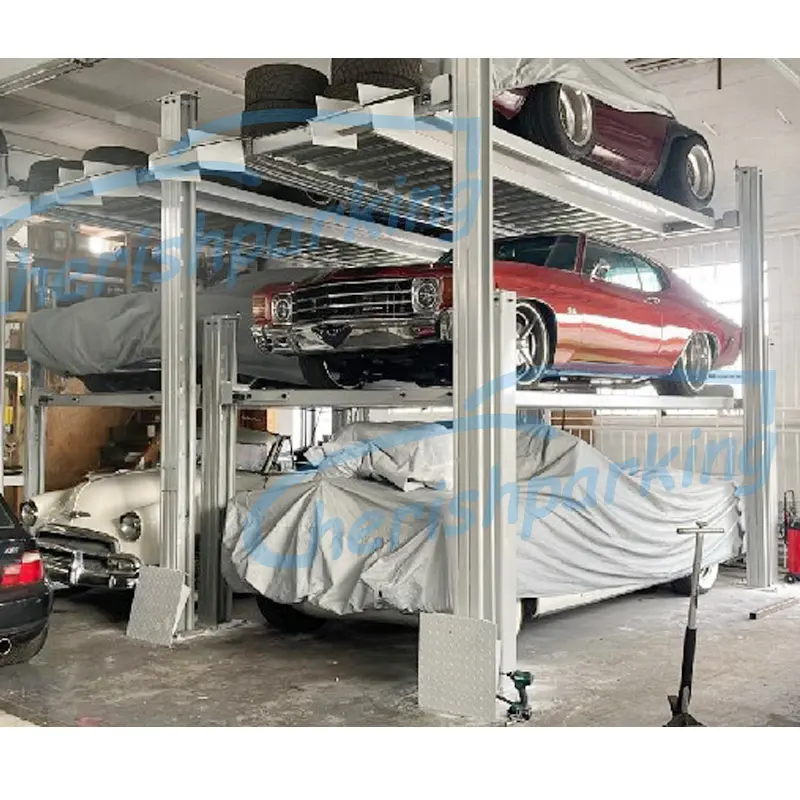

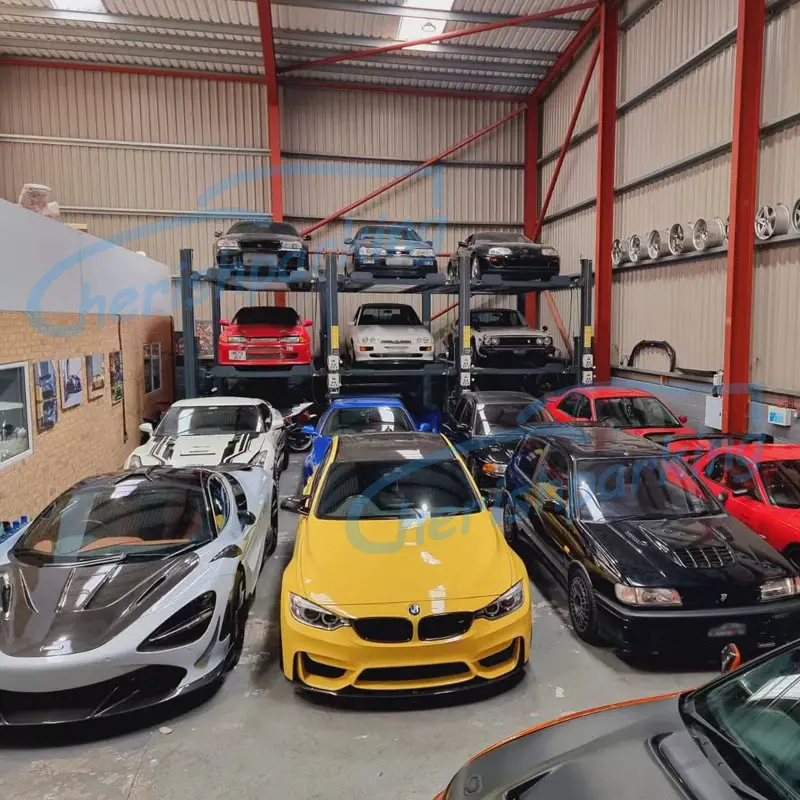

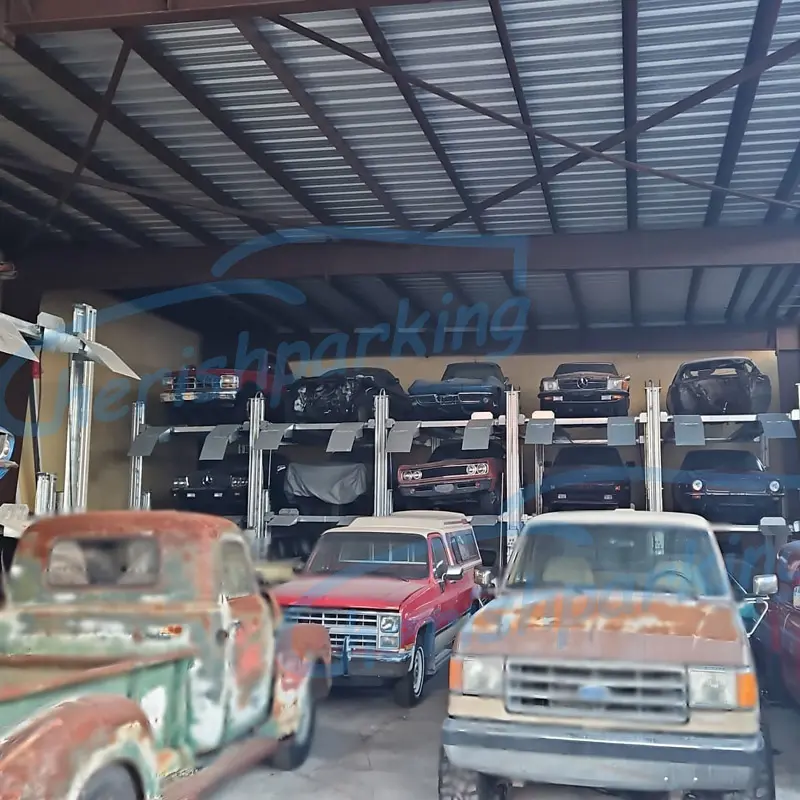

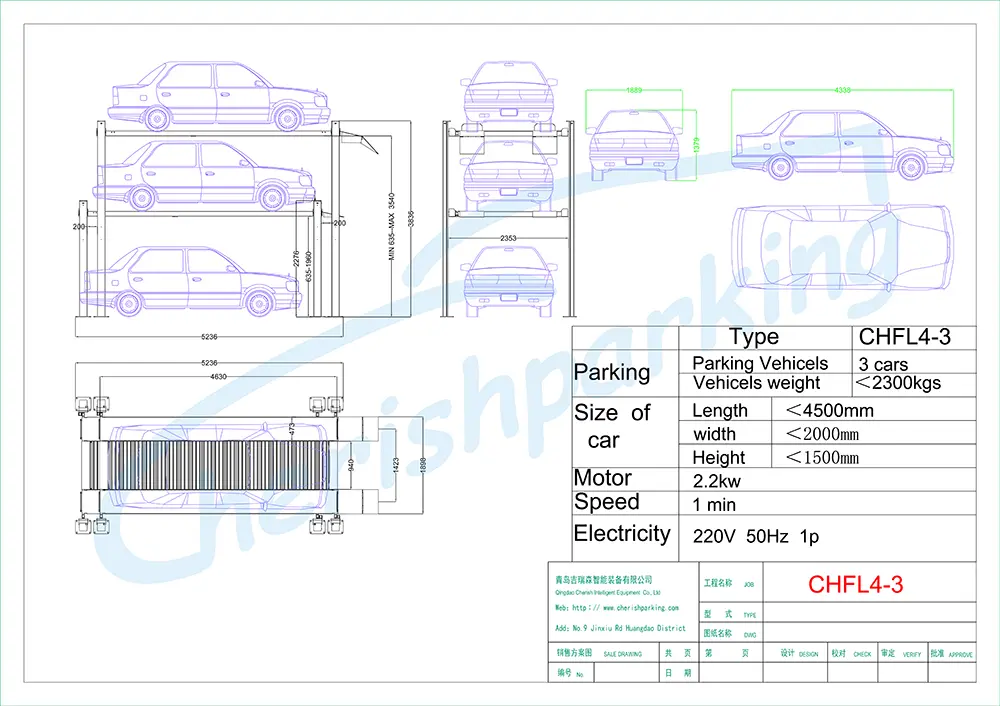

Drawing & Case

Frequently Asked Questions

What is the weight capacity for each level of the CHFL4-3 lift?

The ground floor has unlimited capacity, the second floor can support up to 3000kg, and the third floor is designed for sedans with a capacity of 2000kg.

Is this parking lift suitable for low-clearance sports cars?

Yes, the system features a specially designed foldable ramp that facilitates easy entry and exit for sports cars while saving space.

How does the safety locking mechanism work?

The lift includes an automatic internal ladder locking system and 4 safety locks per floor. The electromagnetic lock can be easily released via a button on the control box.

What prevents oil leakage and corrosion in the hydraulic system?

We use high-quality Italian oil seals to prevent leakage and chrome-plated piston rods to ensure long-term resistance against corrosion.

Can the power supply be customized for different regions?

Standard configuration is 220V, 50Hz, 1 Phase, but special voltages can be customized upon request to meet local electrical requirements.

What surface treatments are available for durability?

The lift is available with either powder coating or galvanizing surface treatments to ensure long-lasting protection against wear and environmental factors.
