High-Quality Triple Level Car Stacker Four Post Car Parking Lift Manufacturer, Products

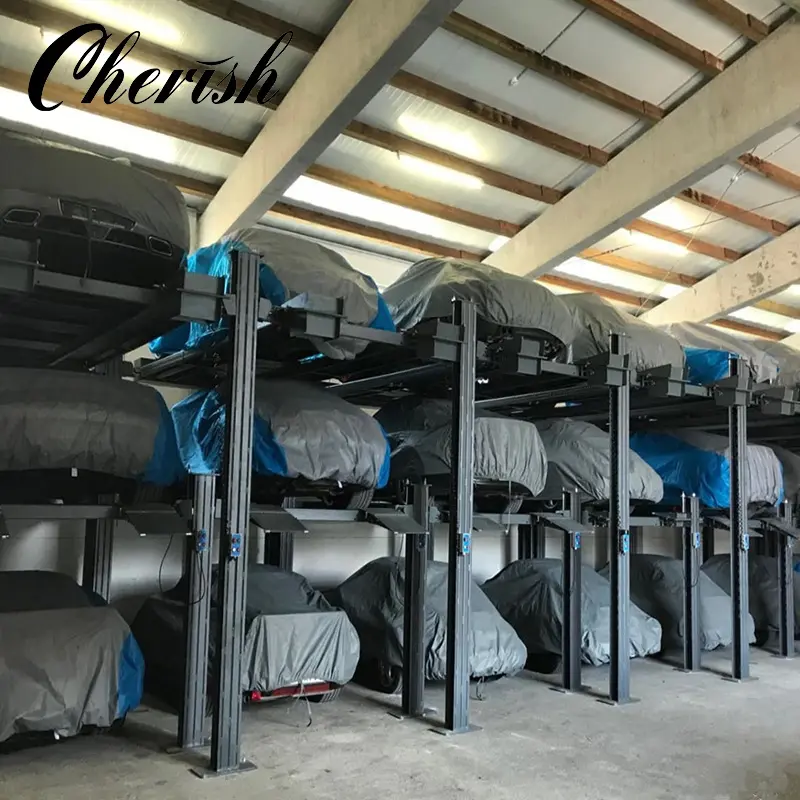

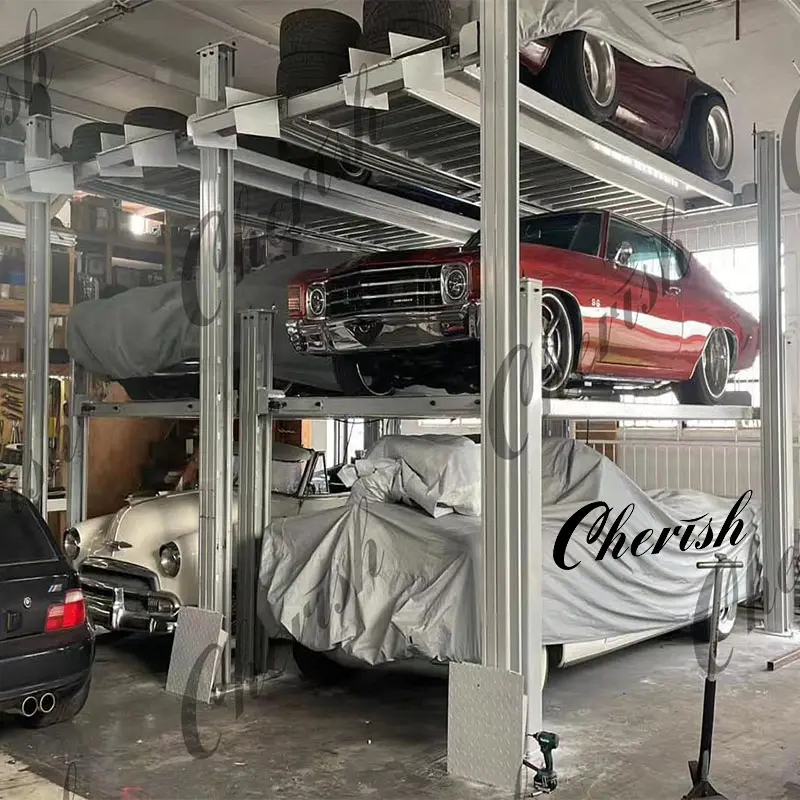

Triple Parking Lifts, or triple stackers, enable three vehicles to be stored in the footprint of a single parking space, making them a highly efficient solution for maximizing storage capacity. The design integrates an extra-tall four-post lift stacked above a standard-height four-post lift, creating a practical multi-level system. Engineered for functionality, safety, and ease of operation, these lifts are ideal for commercial facilities and vehicle storage businesses seeking to optimize floor space. With adequate ceiling clearance, they can also be installed in residential garages or barn-style structures, offering private owners a versatile and space-saving parking option.

Product Description

Products Feature

3 Cars Four Post Parking Lift
It can be applied in homes, commercial settings, and vehicle storage facilities, catering to a wide range of needs.
Two independent 4-post parking lifts are installed together, one on the top and the other at the bottom, optimizing space utilization.
Hydraulic drive cylinders, combined with a pulley-wire rope lifting system, ensure smooth and stable lifting operations.
There is an automatic locking system for the internal latch of the ladder. Meanwhile, the electromagnetic lock can be released via a button on the operation box for easy access.
The hot-dip galvanized and corrugated platform is not only safe but also has a long service life, resistant to wear and tear.
The foldable ramp is designed for sports cars, taking up less space while facilitating vehicle entry and exit.
The anti-slip corrugated deck protects vehicles and drivers from potential slips and damage, enhancing safety during use.
Italian oil seals are used to ensure no oil leakage. The piston rod is chrome-plated to prevent corrosion, guaranteeing its long-term performance.
Three Cars Parking Lift Details

Specifications

CHFL4-3 Upper Platform Lower Platform
Lifting capacity Ground floor unlimited, 2nd floor 3000kg, 3rd floor sedan 2000kg
Total width 2671 mm
Outside length 6120 mm
Height of post 3836mm 2276mm
Maximum lifting height 3540mm 1960mm
Distance between posts 2353mm
Runway width 473mm
Runway length 4630mm
Motor Power 2.2 kw
Voltage 220V, 50Hz, 1 Ph (special voltages available upon request)
Surface treatment Powder coating or galvanizing
Operation Model Key switch + control button
Safety 4 safety lock per floor and auto protection device

Drawing & Case

Technical Drawing

Frequently Asked Questions

What is the total lifting capacity of this 3-car parking lift?
The lift supports an unlimited weight on the ground floor, 3000kg on the second floor platform, and 2000kg for sedans on the third floor platform.
Is the platform durable enough for long-term outdoor use?
Yes, the platform is made of hot-dip galvanized and corrugated steel, providing excellent resistance to wear, tear, and corrosion.
Can this lift accommodate low-chassis sports cars?
Absolutely. The lift features a specially designed foldable ramp that facilitates easy entry and exit for sports cars with low ground clearance.
What safety mechanisms are included?
It is equipped with an automatic locking system for the internal ladder latches and 4 safety locks per floor, ensuring the platforms remain secure at all times.
Does the hydraulic system require frequent maintenance?
The system uses high-quality Italian oil seals to prevent leakage and chrome-plated piston rods to prevent corrosion, significantly reducing maintenance needs and ensuring stable long-term operation.
What power supply is required for the motor?
The standard motor is 2.2kw, 220V, 50Hz, 1 Phase. However, special voltage configurations are available upon request to meet local electrical standards.
