CE Certification 3 Level Car Parking Lift for Car Storage Manufacturers, Factories

Our Triple-Level Car Stacker is engineered for efficient vertical parking, allowing up to three vehicles to be stored in a single footprint. It comes in two standard configurations—Sedan Type and SUV Type—to accommodate a variety of vehicle sizes and storage needs. For clients with unique space or operational requirements, we also provide customized solutions tailored to specific dimensions, ceiling heights, or weight capacities. Designed for residential, commercial, and urban applications, this system maximizes parking capacity, optimizes land use, and ensures safe, reliable, and convenient vehicle storage for any environment.

Product Description

Products Features
Triple Stacker
  • It perfectly triples the number of parking spaces, efficiently optimizing parking capacity.
  • The upper layer has a load-bearing capacity of 2000 kg, the lower layer 3000 kg, and the bottom layer has no restrictions.
  • Short-column design suitable for areas with low ceilings, solving limited vertical space issues.
  • Flexible installation indoors or outdoors with a rain shelter.
  • Specifically designed for concrete-surface installation to ensure a stable foundation.
  • Wide-deck platform accommodates SUVs, sedans, sports cars, and vans.
  • Equipped with a PLC control system for precise and automated operation.
  • 4 safety locks per platform to ensure maximum vehicle security.
  • Multiple anti-fall locks on each column prevent unexpected platform falls.
  • Up-down key switches restrict unauthorized operations.
  • Photo-electric induction system prevents contact between upper and lower vehicles.
  • Hydraulic overload protection safeguards components from excessive loads.
Triple Stacker Detail
📋
Specifications
Model No. NEW CHFL4-3 Sedan NEW CHFL4-3 SUV
Lifting Capacity Ground: Unlimited / Lower: 2700 kg / Upper: 2000 kg Ground: Unlimited / Lower: 3000 kg / Upper: 2000 kg
Ground Floor Usable Height 1600 - 2100 mm 2100 mm
Second Floor Usable Height 1300 - 1800 mm 2100 mm
Column Height 4100 mm 4896 mm
Total Length 5750 mm 6200 mm
Total Width 3000 mm 3000 mm
Usable Width 2367 mm 2367 mm
Power 220/380V 50/60HZ 1/3Ph 2.2Kw
Operation Model Key Switch + Button
Drive Mode Hydraulic Drive + Steel Wire Rope
🖼

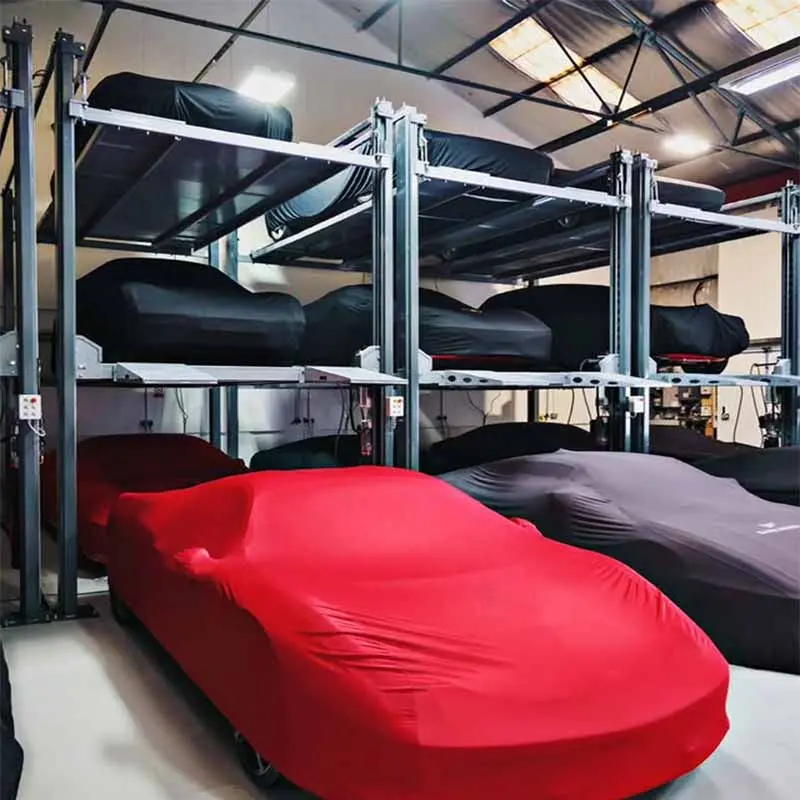

Drawing & Case
?
Frequently Asked Questions
How many cars can this system park in one space?
The system is a Triple Stacker, meaning it can perfectly triple your parking capacity by stacking three vehicles vertically in the footprint of a single parking spot.
What are the weight limits for each platform?
Depending on the model, the lower level can support up to 3000 kg, while the upper level supports up to 2000 kg. The ground floor has no load restriction.
Can this lift be installed in garages with low ceilings?
Yes, the system features a short-column design specifically engineered for areas with limited vertical clearance, making it ideal for basement or low-ceiling applications.
Is it safe for multi-vehicle storage?
Absolutely. Safety features include 4 safety locks per platform, multiple anti-fall locks on columns, PLC control, and a photo-electric induction system to prevent platform collisions.
What types of vehicles can I park on the platforms?
The wide-deck design is versatile enough to accommodate sedans, SUVs, sports cars, and vans, providing flexibility for mixed vehicle storage.
Can I install this system outdoors?
Yes, the system is suitable for both indoor and outdoor installation. For outdoor use, it is recommended to install a rain shelter to protect the hydraulic and electrical components.
