High-Quality Smart Loading Dock Solutions Pit Installation Hydraulic Dock Leveler with Fall Prevention System Product, Products

The automatic dock leveler is an essential solution for logistics centers, warehouses, and factory loading areas, allowing a smooth transition between the loading bay and truck containers. Since truck floors often sit at different heights from the bay, manual handling becomes slow and labor-intensive.

When a stationary dock leveler is installed in a dedicated concrete pit, its hydraulic system raises and lowers the platform to match the truck floor precisely. This enables forklifts and trolleys to move goods efficiently and safely, greatly enhancing loading and unloading speed, reducing manpower demand, and improving overall operational productivity.

Product Description

Products Feature

01
Fully hydraulic drive, easy operation and reliable operation.
02
16mm whole thickened pattern lip plate, moving load bearing stronger.
03
Main table adopts 8mm steel plate without splicing.
04
The lip plate and the platform are connected with open hinge ear, with high coaxial degree.
05
Table main beam: 8 high strength I-steel, spacing does not exceed 200mm.
06
The rectangular base structure enhances stability.
07
Precision seals ensure excellent hydraulic system sealing performance.
08
Forefoot skirt on both sides for enhanced safety.
09
Push-button control box with emergency stop button.
10
Spray paint treatment for superior rust resistance.

Specifications

Loading Capacity 8000kgs
Adjustable Height Range -300 to +400 mm
Platform Size 2000*2000mm
Pit Size 2030*2000*610mm
Drive Mode Hydraulic
Voltage 220v/380v

Drawing & Case

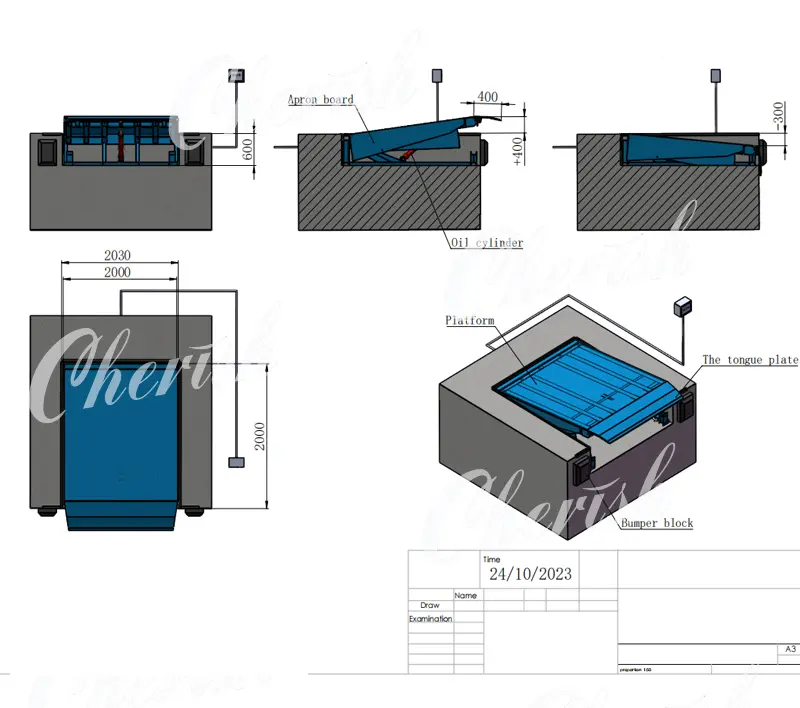

technical drawing

Frequently Asked Questions

What is the maximum loading capacity of this dock leveler?
The standard loading capacity is 8000kgs, designed to handle heavy industrial logistics requirements.
What power supply is required for operation?
The system supports both 220V and 380V voltage options to suit different regional industrial power standards.
How does the hydraulic system ensure safety during use?
It features a fully hydraulic drive for smooth operation, precision seals to prevent leaks, and an emergency stop button on the control box for immediate shutdown.
Is the platform durable enough for long-term heavy use?
Yes, the main table uses a non-spliced 8mm steel plate, supported by 8 high-strength I-steel beams spaced no more than 200mm apart.
What are the pit requirements for installation?
The standard pit size required is 2030*2000*610mm to accommodate the 2000*2000mm platform.
How is the product protected against rust?
The entire structure undergoes a professional spray paint treatment, which provides excellent resistance against rust and corrosion.
