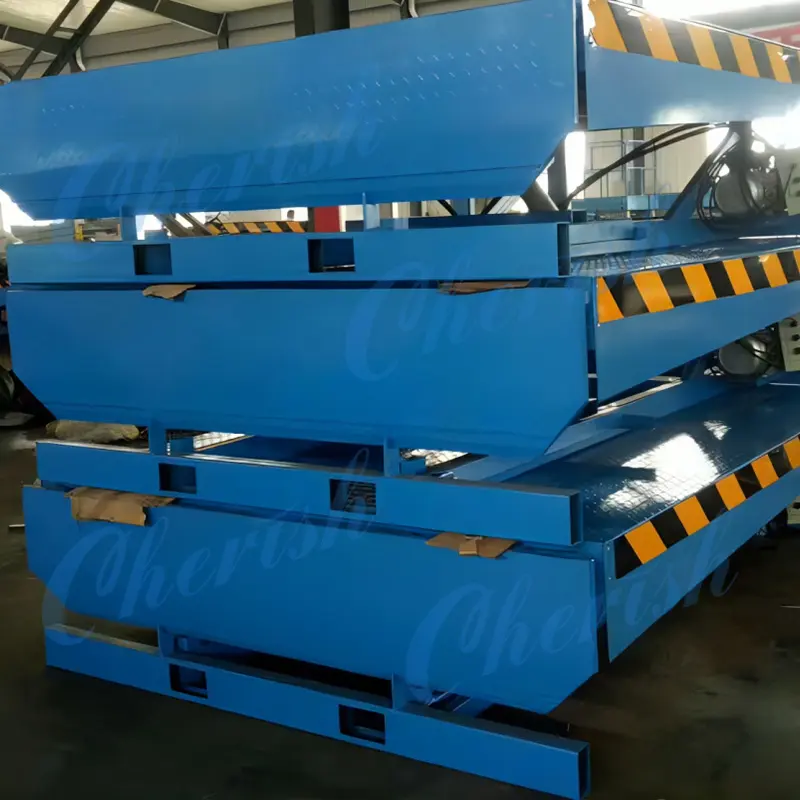

High-Quality 8t Stationary Dock Ramp Hydraulic Loading Dock Leveller Manufacturer, Product

The automatic dock leveler is widely used in logistics centers, warehouses, and factory dispatch areas to bridge the gap between the loading bay and truck containers. Often, the container floor does not align with the bay floor, making manual handling of goods inefficient and labor-intensive.
By installing a stationary dock leveler in a pre-built concrete pit, the hydraulic motor-driven platform adjusts seamlessly to the truck floor height. Forklifts and trolleys can then move goods smoothly, significantly improving loading and unloading efficiency, reducing labor costs, and streamlining warehouse operations.

Product Description

Products Feature

01Fully hydraulic drive, easy operation and reliable operation.
0216mm whole thickened pattern lip plate, moving load bearing stronger.
03Main table adopts 8mm steel plate without splicing.
04The lip plate and the platform are connected with open hinge ear, with high coaxial degree and no hidden trouble.
05Table main beam: 8 high strength I-steel, the spacing between the main beam does not exceed 200mm.
06The rectangular base structure enhances stability.
07Precision seals are used to ensure that the hydraulic system has excellent sealing performance.
08Forefoot skirt on both sides for safety protection.
09Push-button control box, with emergency stop button, simpler and safer.
10Spray paint treatment, better rust resistance.
dock leveler operation
hydraulic dock component

Specifications

Loading Capacity8000kgs
Adjustable Height Range-300 to 400 mm
Platform Size2000 * 2000mm
Pit Size2030 * 2000 * 610mm
Drive ModeHydraulic
Voltage220v / 380v
📐

Drawing & Case

technical drawing size
hydraulic dock leveler installation
?

Frequently Asked Questions

What is the maximum loading capacity of this dock leveler?
This hydraulic dock leveler has a standard loading capacity of 8000kgs, designed for heavy-duty industrial use.
What materials are used for the main platform?
The main table is constructed from an 8mm high-strength steel plate without splicing, and the lip plate uses a 16mm thickened pattern plate for superior durability.
What are the power requirements for operation?
The system supports both 220V and 380V voltage options to accommodate different industrial power supplies.
How does the hydraulic system ensure safety?
It includes a push-button control box equipped with an emergency stop button, precision seals to prevent leaks, and side skirts for foot protection.
What is the adjustable height range?
The height can be adjusted within a range of -300mm to +400mm to bridge the gap between the warehouse floor and various truck bed heights.
How is the structure stabilized?
The stability is enhanced by a rectangular base structure and a main beam consisting of 8 high-strength I-steels with spacing not exceeding 200mm.
