High-Quality Hydraulic Underground Tilting Car Elevator Vehicle Parking Storage Lift Manufacturers, Products

The CPL - 2A Pit car elevator offers an ingenious and space - saving vehicle - parking solution. Its design is characterized by a two - level structure combined with an inclined platform, boasting the shortest pit height requirements among similar products. Despite its compact footprint, it has a remarkable capacity to accommodate two cars with ease. One level is set at ground level, enabling convenient and quick vehicle access for daily use, while the other is situated underground, making the most of the vertical space available. When retrieving a vehicle parked underground, there's no need for the hassle of relocating the car on the ground. A simple operation of lifting the underground - parked vehicle to the ground level is all it takes, saving you both time and effort.

Product Description

Products Feature

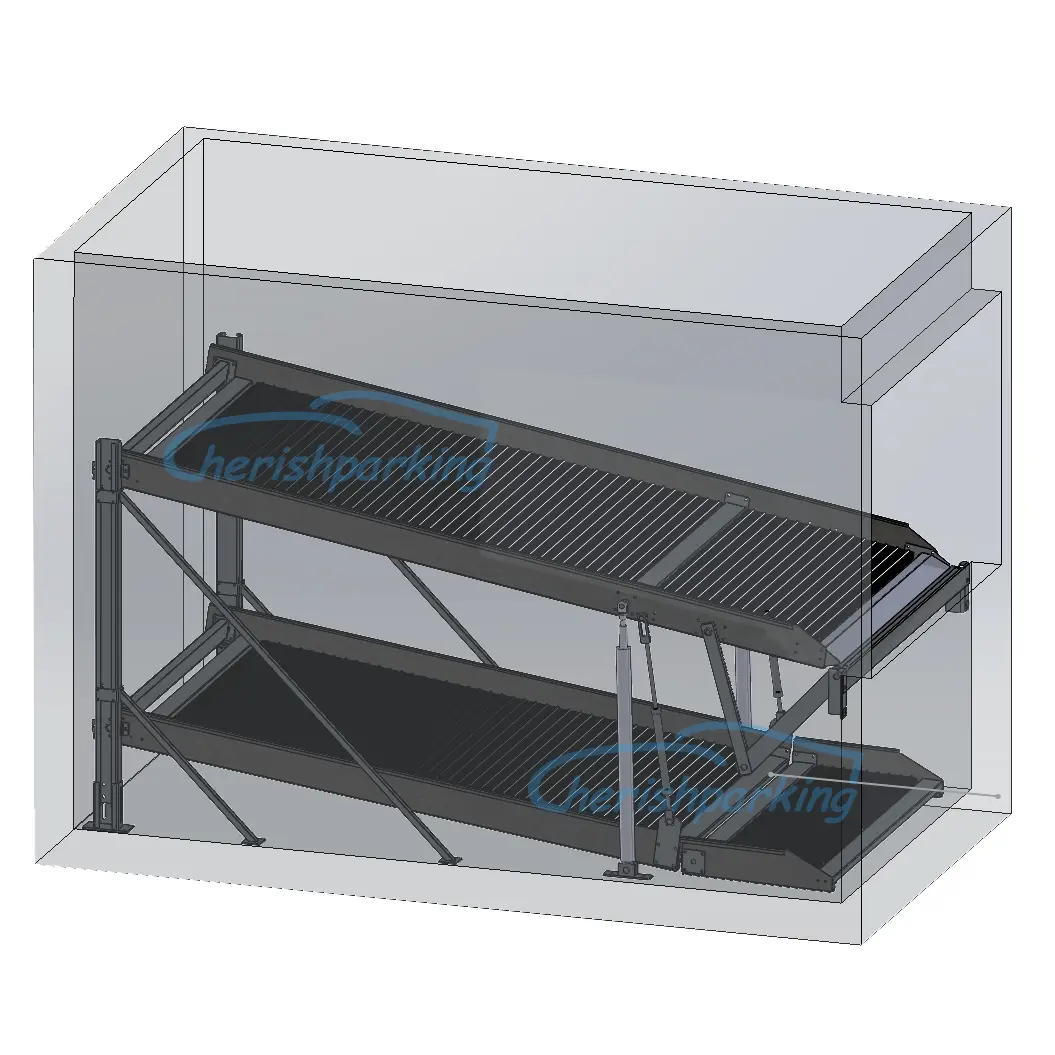

Products features
⚙️
The standard - type CPL - 2A Pit Car Elevator requires a remarkably shallow pit depth, ranging from merely 1500 to 1600mm, which is a significant advantage in space - constrained installations.
🚗
It can accommodate a wide variety of vehicles with ease. The ideal vehicle dimensions it can handle are a height of 1450 - 1500mm and a length of 4900 - 5000mm.
↔️
The standard - type usable platform width measures 2200mm, providing ample space for vehicle maneuvering.
🏋️
Each parking space is designed with a robust load - bearing capacity of 2000 kg, making it suitable for most sedans on the market.
↘️
All parking levels are designed with a slightly inclined access, ensuring smooth and convenient vehicle entry and exit, whether it's for daily use or during peak traffic periods.
It is directly driven by dual master - slave hydraulic lifting cylinders. Each unit is equipped with an independent hydraulic power unit and control panel.
🛡️
The load - bearing capacity for sedans can reach up to 2000 kg. Once the operator releases the key switch, the equipment automatically stops running.
🅿️
It is suitable for independent parking scenarios. A single platform can accommodate two cars, while a double platform can park four cars.
🌱
The operating cost is low. When the platform descends, it is driven by gravity, eliminating the need for an electric motor.
📦
Professional packaging and delivery services are provided. Compact packaging size simplifies the unloading and handling processes.

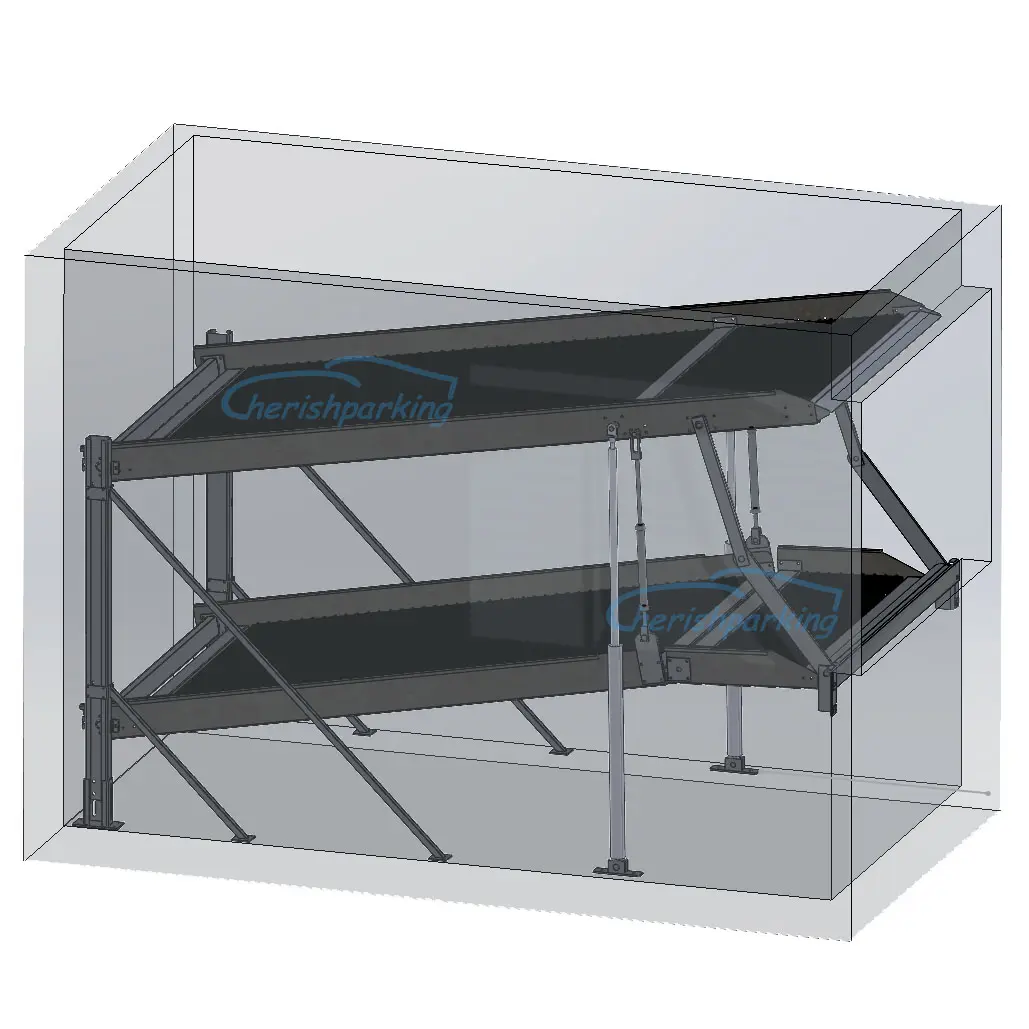

Products features details

Specifications

Model No. CPT-2 CPT-4
Lifting Capacity 2000kgs 4000kgs
Lifting Height 1750mm 1750mm
Usable Platform width 2330mm 4502mm
Overall Height 4580mm 4580mm
Overall Length 5300mm 5300mm
Overall Width 2700mm 4900mm
Power Supply/Motor 380V, 50Hz / 60Hz, 3Ph, 5.5Kw
Lock Release Electric Release
Drive Mode Hydraulic Drive + Chain

Drawing & Case

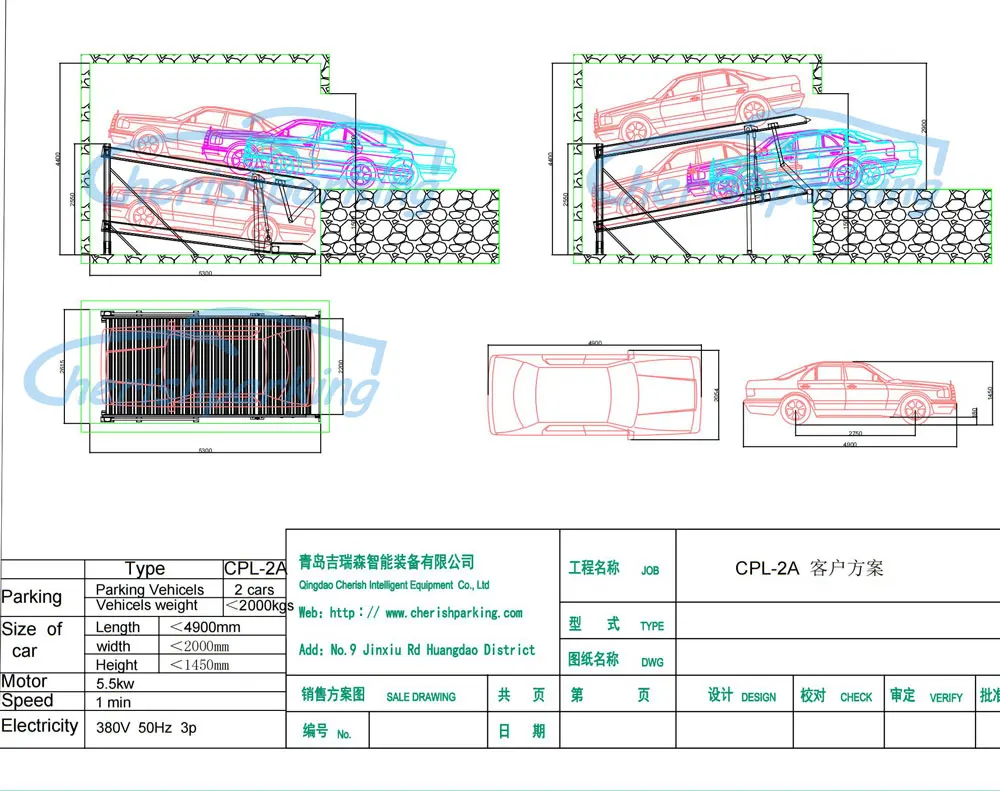

Technical Drawing

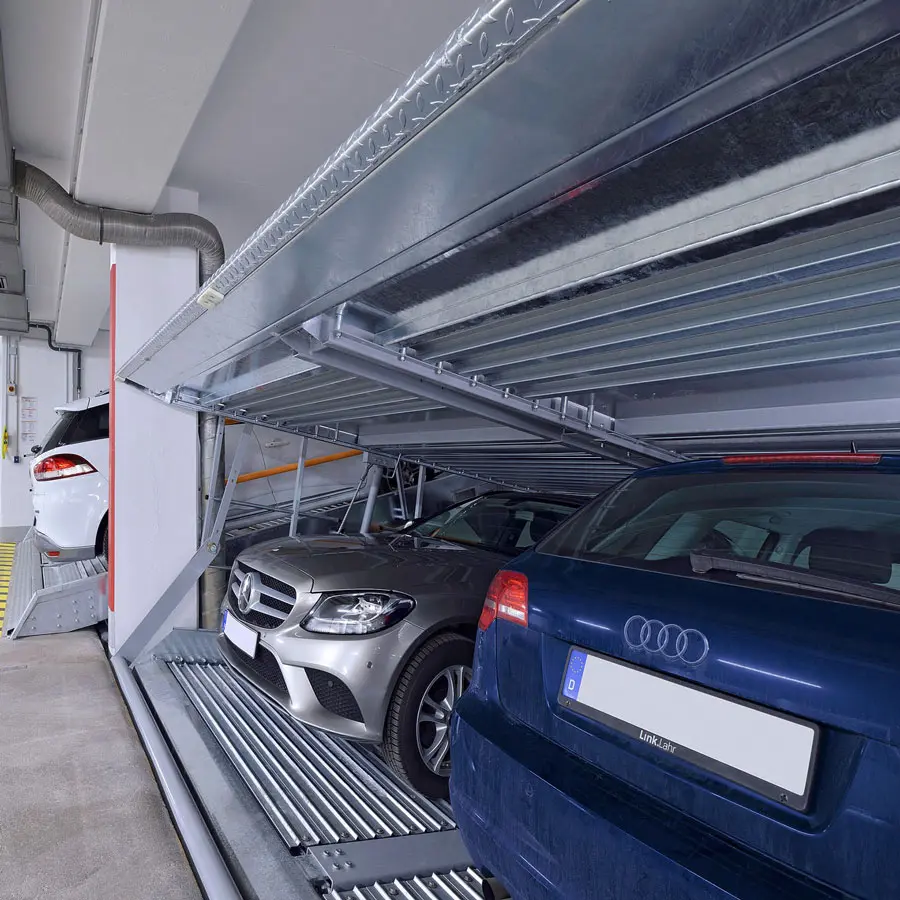

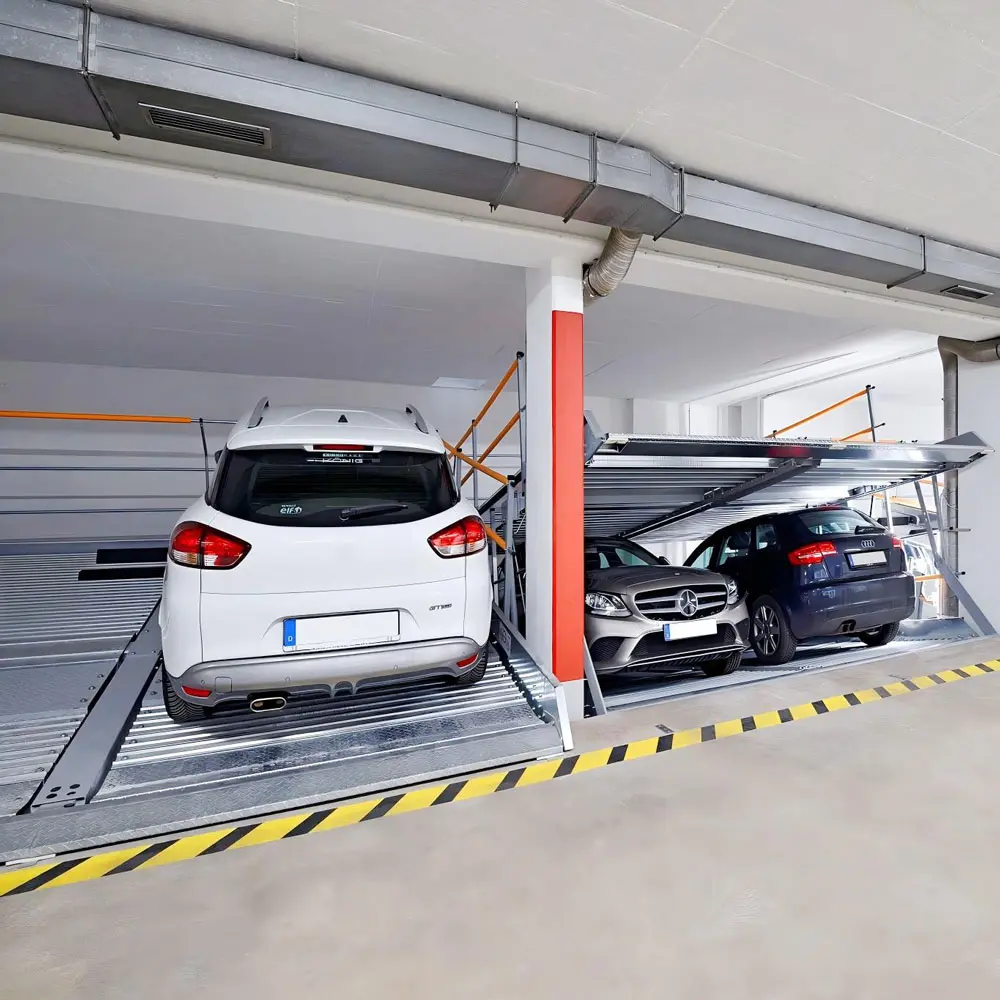

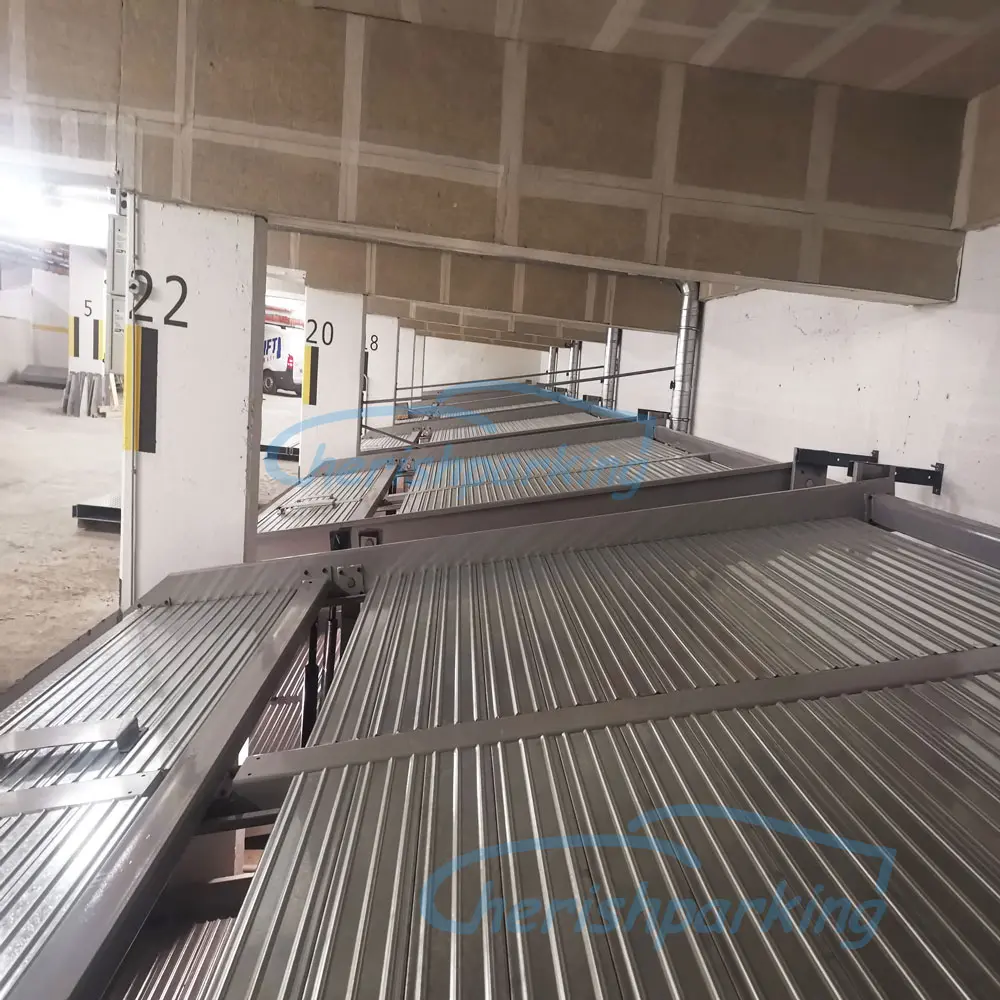

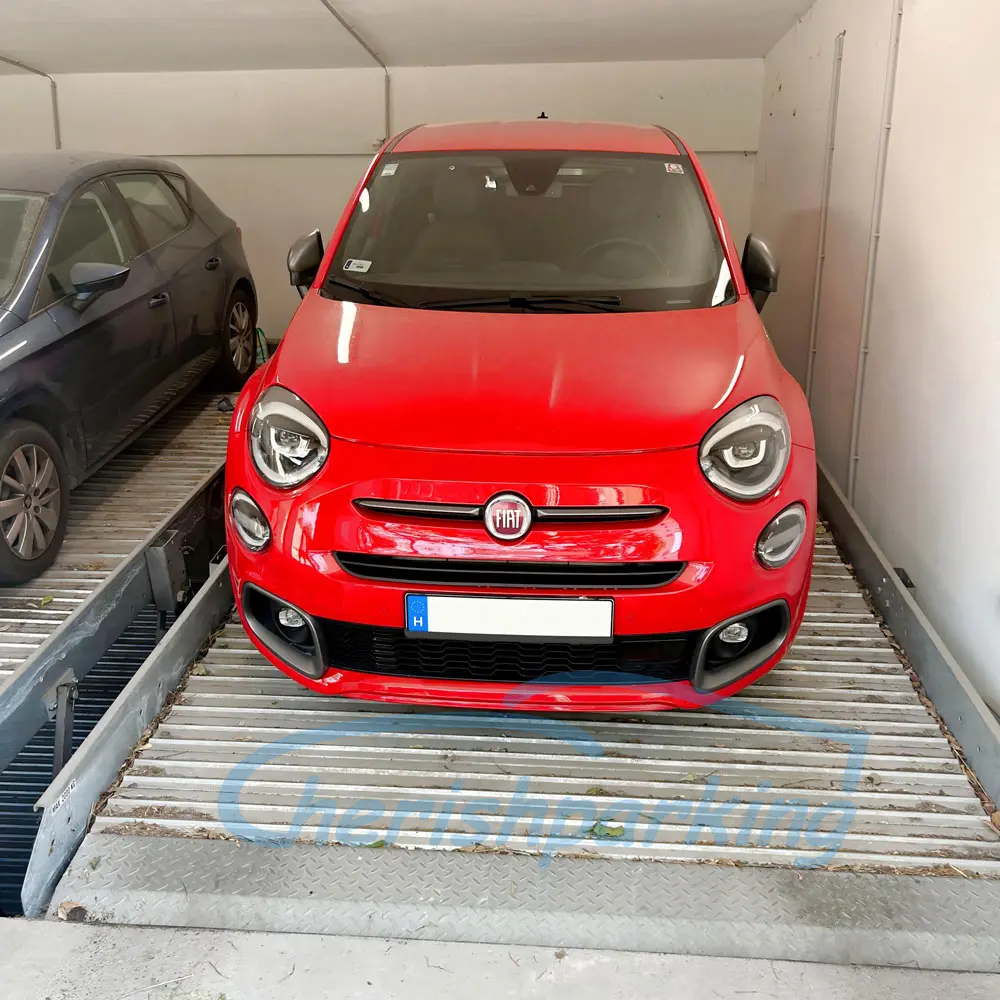

Case 1 Case 2 Case 3

Frequently Asked Questions

What is the required pit depth for the CPL-2A Pit Car Elevator?
The standard CPL-2A requires a remarkably shallow pit depth, ranging from only 1500mm to 1600mm.
What is the maximum lifting capacity of the lift?
The lifting capacity is 2000kg for the CPT-2 (single platform) and 4000kg for the CPT-4 (double platform).
How does the system ensure safety during operation?
The equipment features a key switch operation; once the operator releases the key, the equipment automatically stops running for maximum safety.
Is the car lift energy efficient?
Yes, it is very cost-effective. While lifting is hydraulic, the platform descends using gravity, which eliminates the need for electric motor power during the downward phase.
What car sizes are suitable for this elevator?
It is ideal for vehicles with a height of 1450-1500mm and a length of 4900-5000mm, accommodating most standard sedans.
Can I park more than two cars on one unit?
Yes, while a single platform unit accommodates two cars, we offer double platform configurations that can park four cars simultaneously.
