High-Quality Hydraulic Underground Tilting Car Parking Stacker Elevator Pit Vehicle Hoist Product, Products

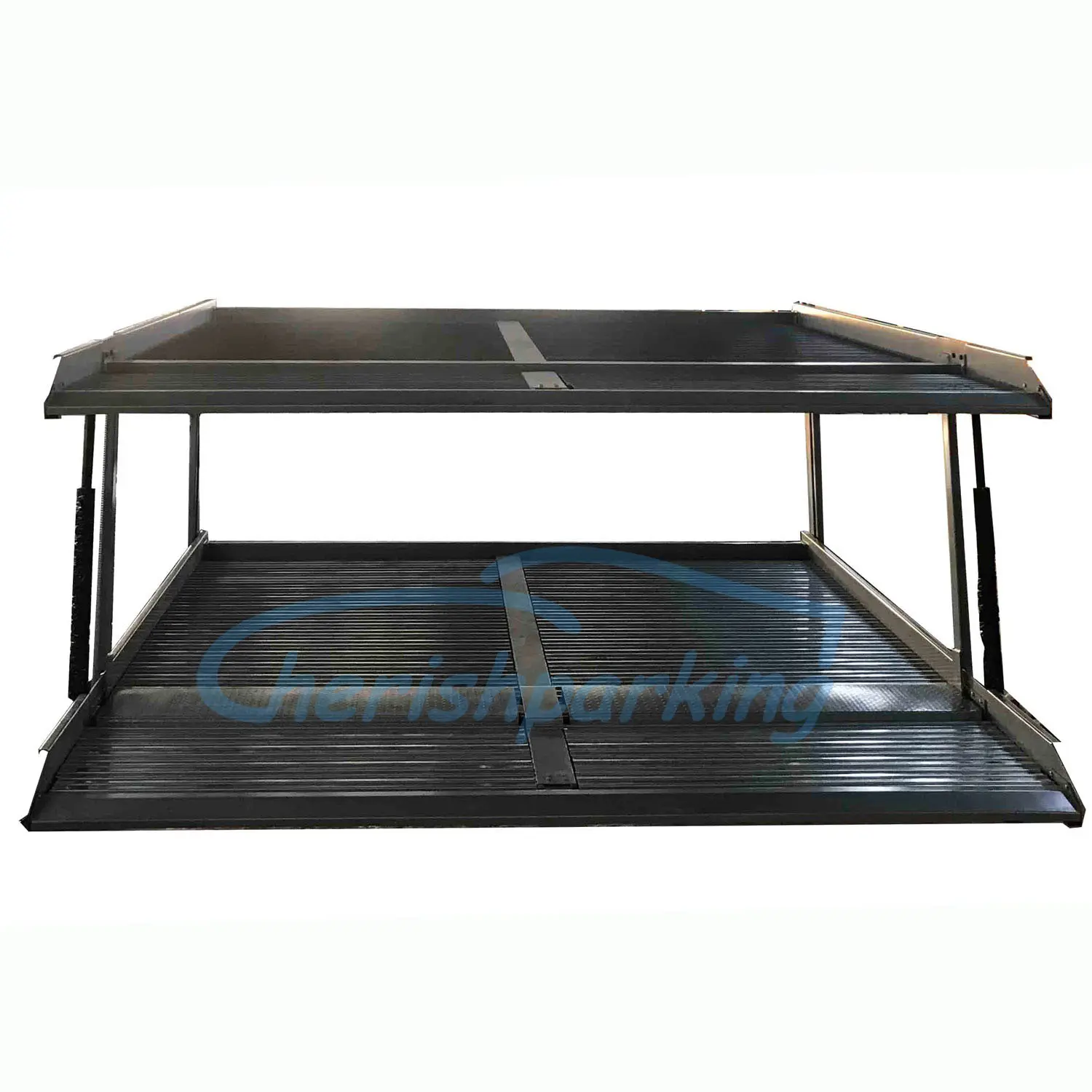

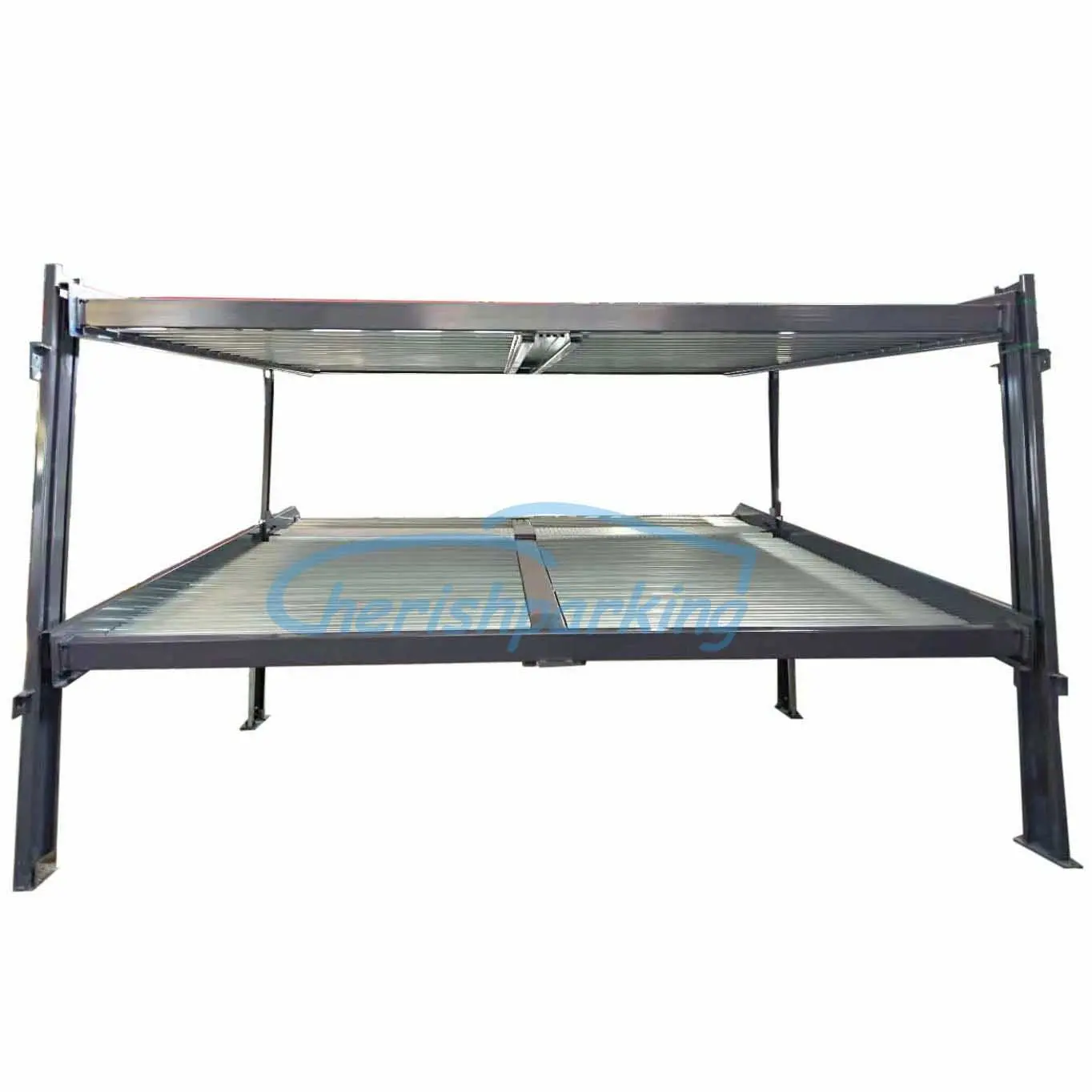

The CPT - 2/4 parking system offers a highly space - efficient vehicle parking solution. With its innovative two - tiered structure and tilted platform, shorter pit height requirements. it has the flexibility to house either 2 or 4 vehicles. One tier is located at ground level, while the other is positioned underground. A remarkable feature of this system is that when retrieving a vehicle parked underground, there's no requirement to relocate the car on the ground. Instead, a simple operation of elevating the underground vehicle to the ground level suffices. This parking system can be seamlessly installed in basements or pits, effectively maximizing the utilization of ground space.

Product Description

Products Feature
Parking solution feature

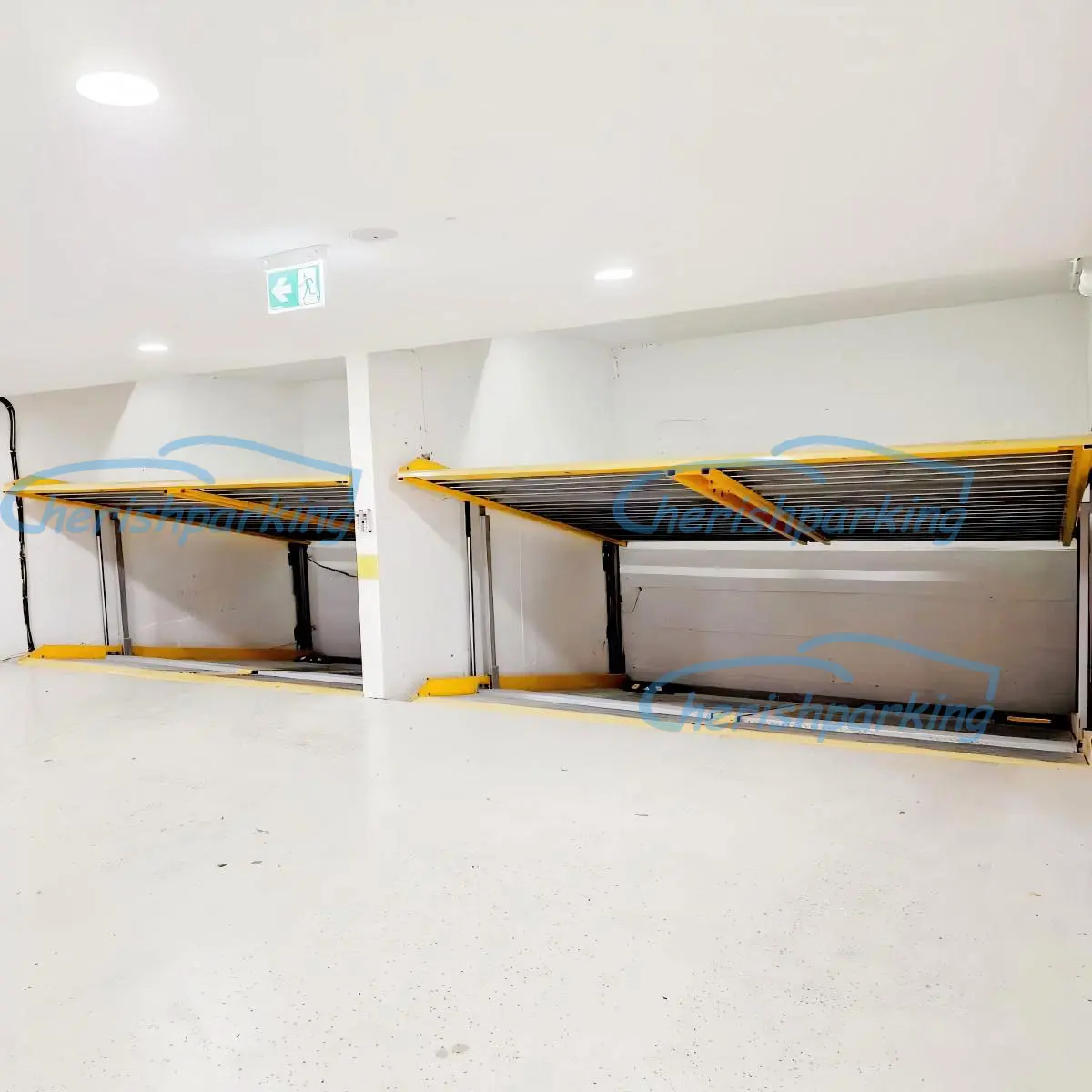

A parking solution designed for basement garages in residential and commercial buildings, eliminating the need to move the vehicles on the ground.
The combination of galvanized corrugated plates and diamond-patterned plates offers a more premium parking experience.
It is directly driven by dual master-slave hydraulic lifting cylinders. Each unit is equipped with an independent hydraulic power unit and control panel.
The load-bearing capacity for sedans can reach up to 2000 kg. Once the operator releases the key switch, the equipment automatically stops running.
It is suitable for independent parking scenarios. A single platform can accommodate two cars, while a double platform can park four cars.

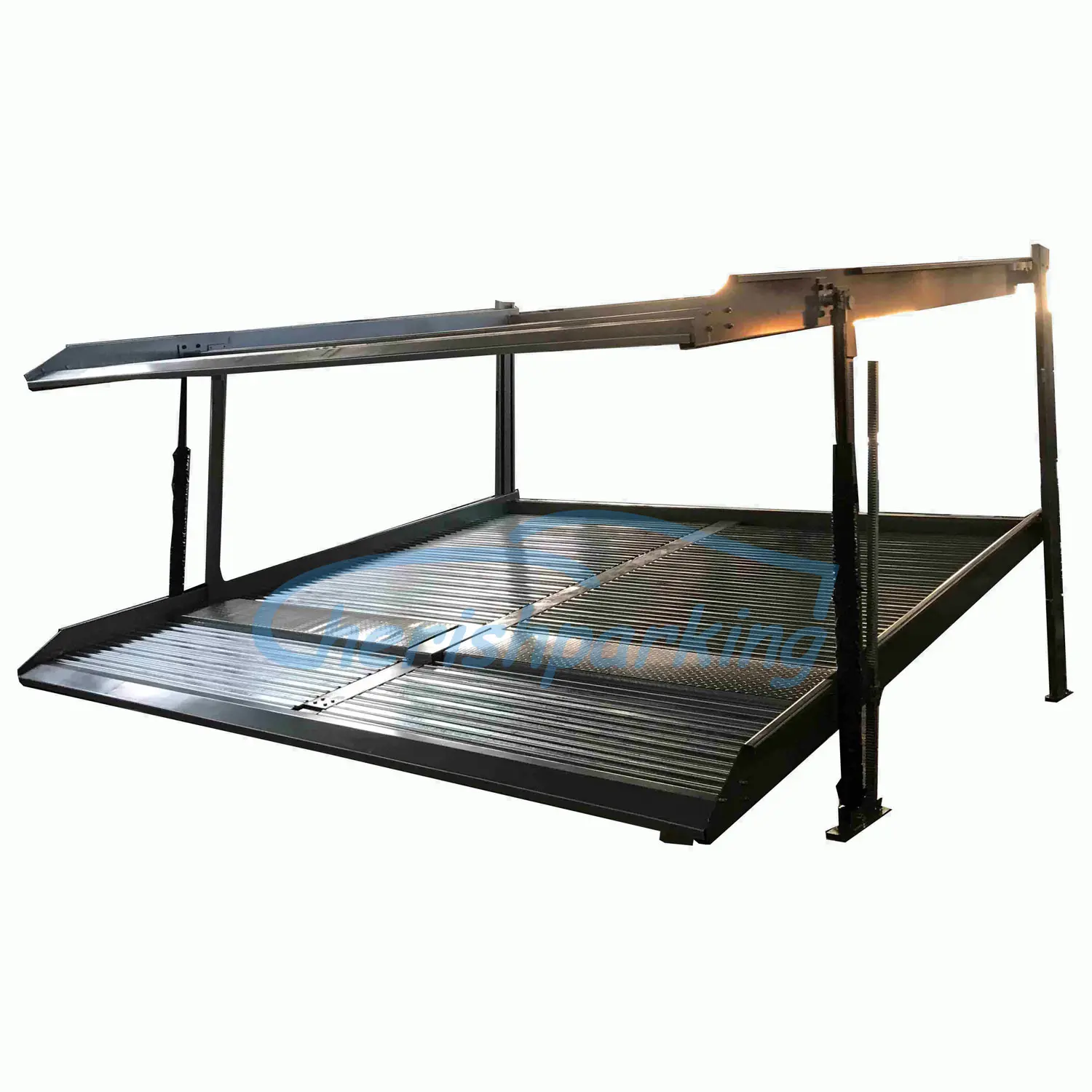

All parking levels can be accessed in an inclined manner.
The operating cost is low. When the platform descends, it is driven by gravity, eliminating the need for an electric motor.
Professional packaging and delivery services are provided. Our professional packaging ensures products delivered in perfect condition. The compact packaging size simplifies unloading and handling.
Operational feature
Specifications
Model No. CPT-2 CPT-4
Lifting Capacity 2000kgs 4000kgs
Lifting Height 1750mm 1750mm
Usable Platform width 2330mm 4502mm
Overall Height 4580mm 4580mm
Overall Length 5300mm 5300mm
Overall Width 2700mm 4900mm
Power Supply/Motor Capacity 380V, 50Hz / 60Hz, 3Ph, 5.5Kw
Lock Release Electric Release
Drive Mode Hydraulic Drive + Chain
Drawing & Case Study
Technical Drawing
Frequently Asked Questions
What is the maximum lifting capacity of the CPT series?
The CPT-2 model can lift up to 2000kg, while the double-platform CPT-4 model has a capacity of 4000kg.
Is this parking system suitable for residential basements?
Yes, it is specifically designed for basement garages in both residential and commercial buildings to maximize parking space without moving ground vehicles.
How does the system save on operating costs?
The system utilizes gravity for platform descent, which eliminates the need for electric motor power during the lowering process, resulting in lower energy consumption.
What safety features are included in the operation?
The equipment features an automatic stop function that triggers immediately when the operator releases the key switch, ensuring safe control at all times.
What type of power supply is required for installation?
The system requires a 380V, 50Hz / 60Hz, 3-Phase power supply with a 5.5Kw motor capacity.
How are the platforms finished for durability?
The platforms use a combination of galvanized corrugated plates and diamond-patterned plates, providing both a premium appearance and long-lasting durability.
