CE Certification Hydraulic Underground Car Parking Lift Elevator Pit Vehicle Hoist Manufacturer, Factory
CE Certification Hydraulic Underground Car Parking Lift Elevator Pit Vehicle Hoist Manufacturer, Factory
CE Certification Hydraulic Underground Car Parking Lift Elevator Pit Vehicle Hoist Manufacturer, Factory
CE Certification Hydraulic Underground Car Parking Lift Elevator Pit Vehicle Hoist Manufacturer, Factory
1 / 4
CE Certification Hydraulic Underground Car Parking Lift Elevator Pit Vehicle Hoist Manufacturer, Factory
CE Certification Hydraulic Underground Car Parking Lift Elevator Pit Vehicle Hoist Manufacturer, Factory
CE Certification Hydraulic Underground Car Parking Lift Elevator Pit Vehicle Hoist Manufacturer, Factory
CE Certification Hydraulic Underground Car Parking Lift Elevator Pit Vehicle Hoist Manufacturer, Factory

CE Certification Hydraulic Underground Car Parking Lift Elevator Pit Vehicle Hoist Manufacturer, Factory

The CPL - 2/4 parking system parks vehicles in a space - saving way. It features a two - level design, capable of accommodating either 2 or 4 cars. One level is on the ground and the other is underground. When you want to drive the car parked underground, there is no need to move the car on the ground. All you need to do is lift the underground car to the ground level. It can be installed in basements or pits, thus saving more ground space.

Send Inquiry

Product Description

Products Feature
products features 1
  • Parking solutions for basement garages in residential and commercial buildings.
  • The galvanized wave plate, paired with diamond plates, provides a better parking experience.
  • It is directly driven by dual master-slave hydraulic lifting cylinders.
  • There is an independent hydraulic power unit and control panel.
  • The load-bearing capacity can reach 2000 kg for sedans.
  • It automatically shuts down once the operator releases the key switch.
  • Suitable for independent parking. A single platform can park two cars, and a double platform can park four cars.
  • All parking levels can be accessed horizontally.
  • Low operating costs. The platform is driven by gravity when descending, eliminating the need for an electric motor.
  • Professional packaging and delivery ensures that products are delivered to customers intact.
products features 2
Specifications
Model No. CPL-2 CPL-4
Lifting Capacity 2000kgs 4000kgs
Lifting Height 1885mm 1885mm
Usable Platform width 2237mm 4502mm
Overall Height 4270mm 4270mm
Overall Length 5078mm 5078mm
Overall Width 2696mm 4776mm
Power Supply/Motor Capacity 380V, 50Hz / 60Hz, 3Ph, 5.5Kw
Lock Release Electric Release
Drive Mode Hydraulic Drive + Chain
Drawing & Case

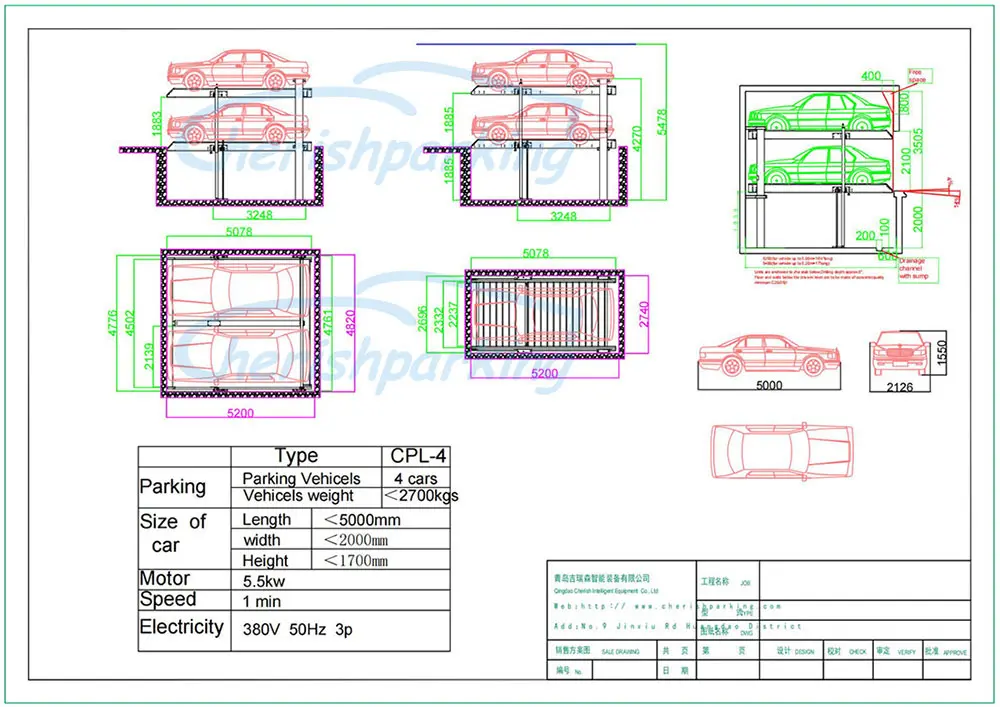

drawing

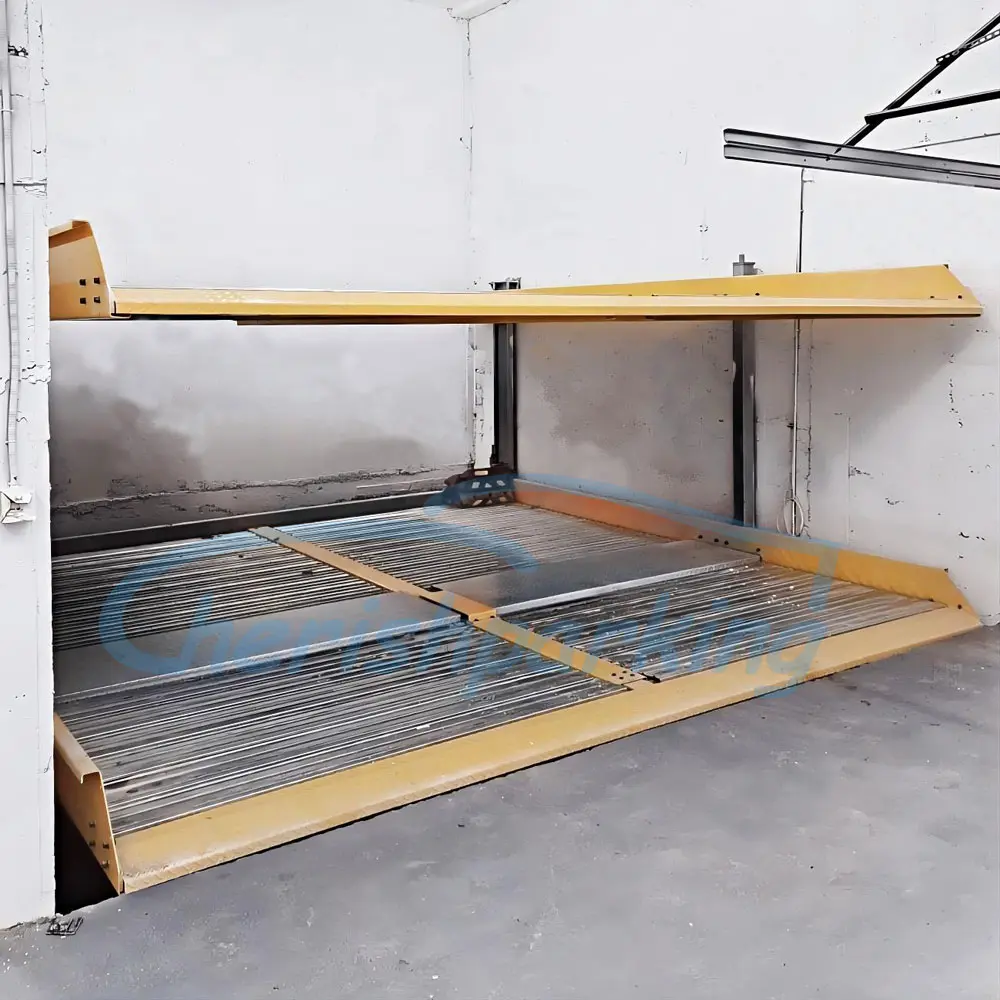

cases-1

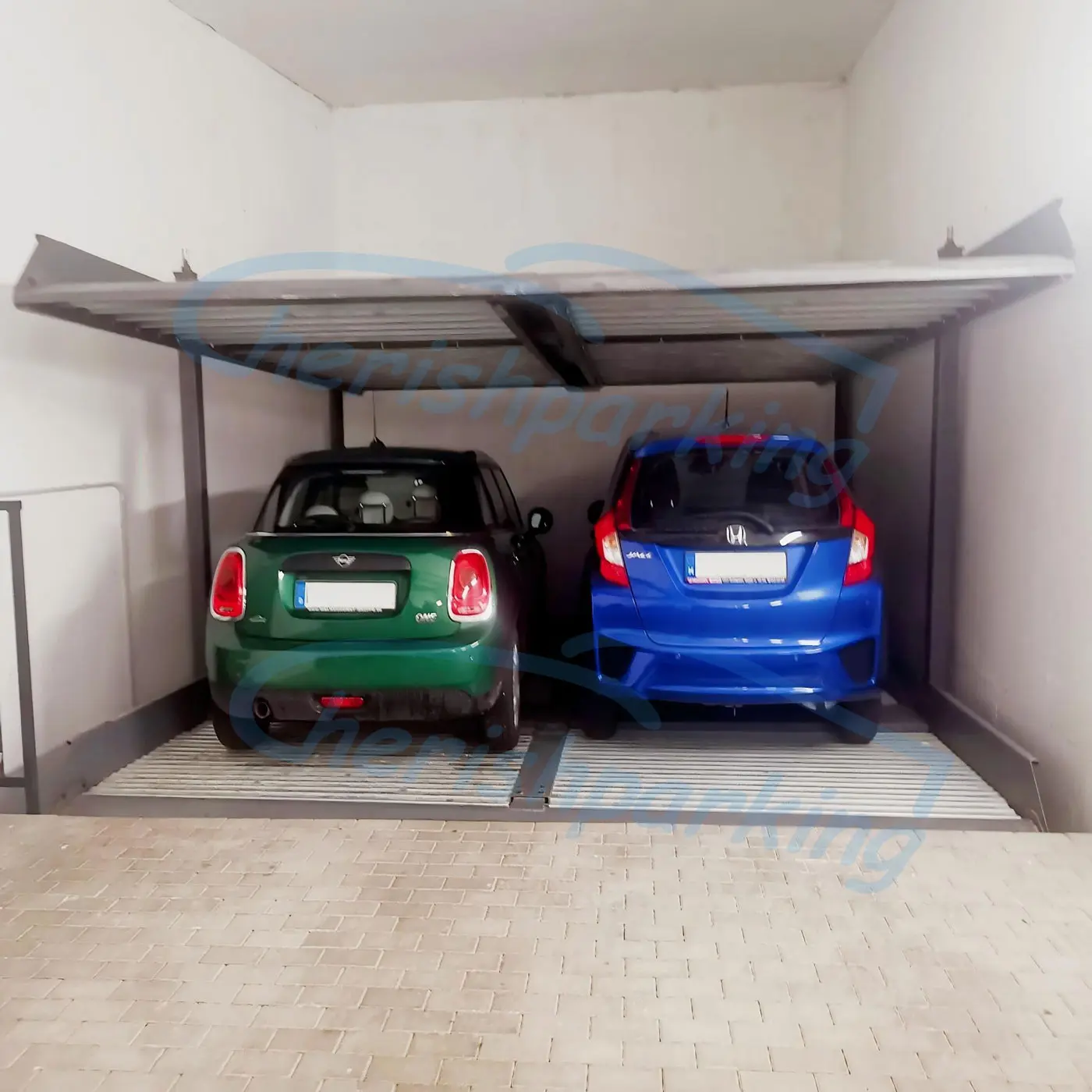

cases-2

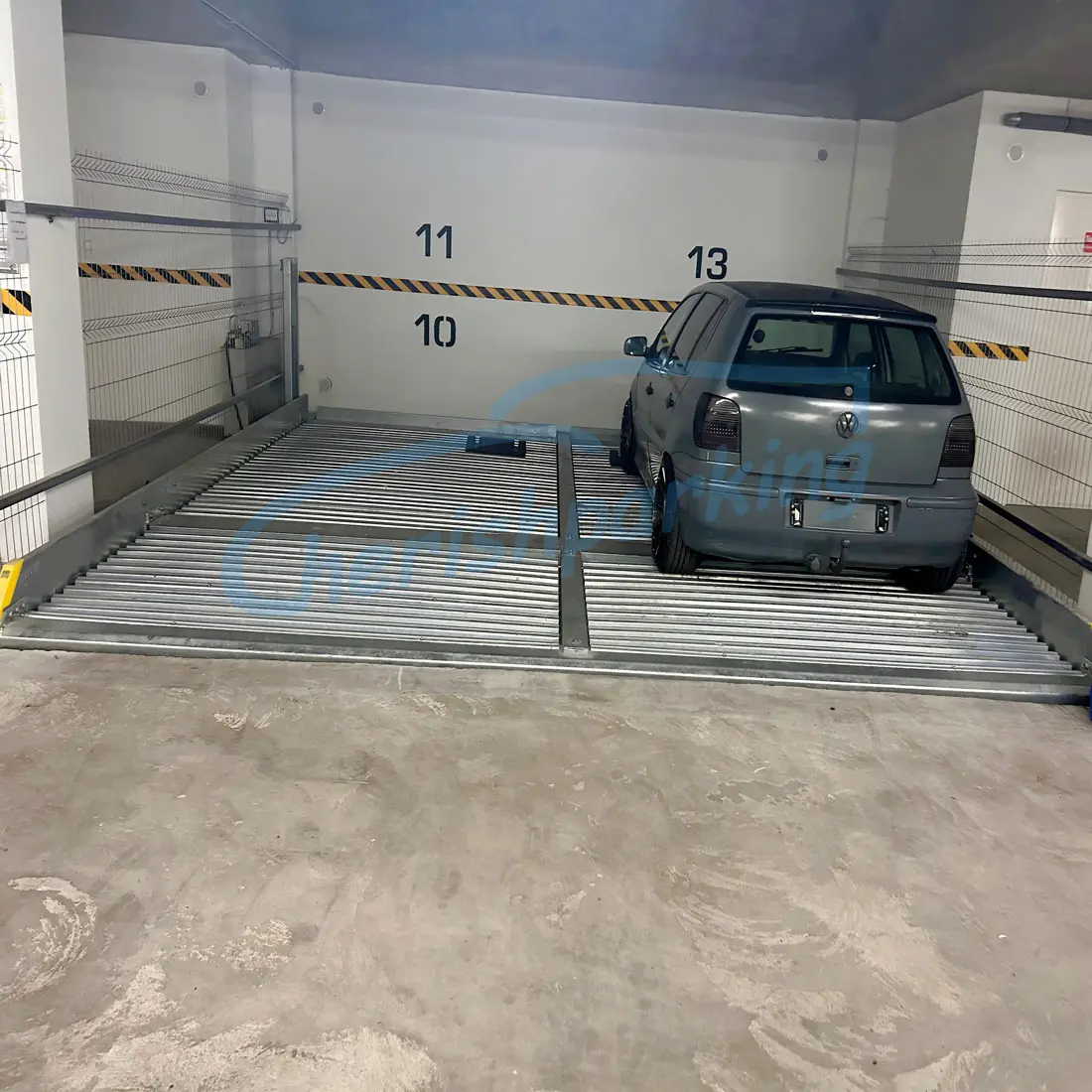

cases-3
Frequently Asked Questions
What is the primary application for the CPL series parking lifts?
The CPL series is designed as an ideal parking solution for basement garages in both residential and commercial buildings.
What is the lifting capacity for these units?
The CPL-2 model has a lifting capacity of 2000kg, while the CPL-4 double platform model can handle up to 4000kg.
How does the lift operate during the descent phase?
The platform is driven by gravity when descending. This eliminates the need for an electric motor during the lowering process, resulting in lower operating costs.
What are the power requirements for installation?
The system requires a power supply of 380V, 50Hz/60Hz, 3 Phase, with a 5.5Kw motor capacity.
Are the parking platforms easy to drive on?
Yes, the lifts feature galvanized wave plates paired with diamond plates to provide a smooth and durable surface for a better parking experience.
Is the safety system automated?
Yes, the system is designed for safety; it automatically shuts down as soon as the operator releases the key switch. It also features an electric lock release and hydraulic drive with chain reinforcement.
