CE Certification Hydraulic Triple Level Stacker Triple Car Parking Lift Manufacturers, Products

Our Triple-Level Car Stacker is specially designed for efficient vehicle storage. It is available in two configurations: Sedan Type and SUV Type, catering to a variety of storage needs. To meet unique requirements, we also offer customized solutions upon request.

Product Description

Products Feature

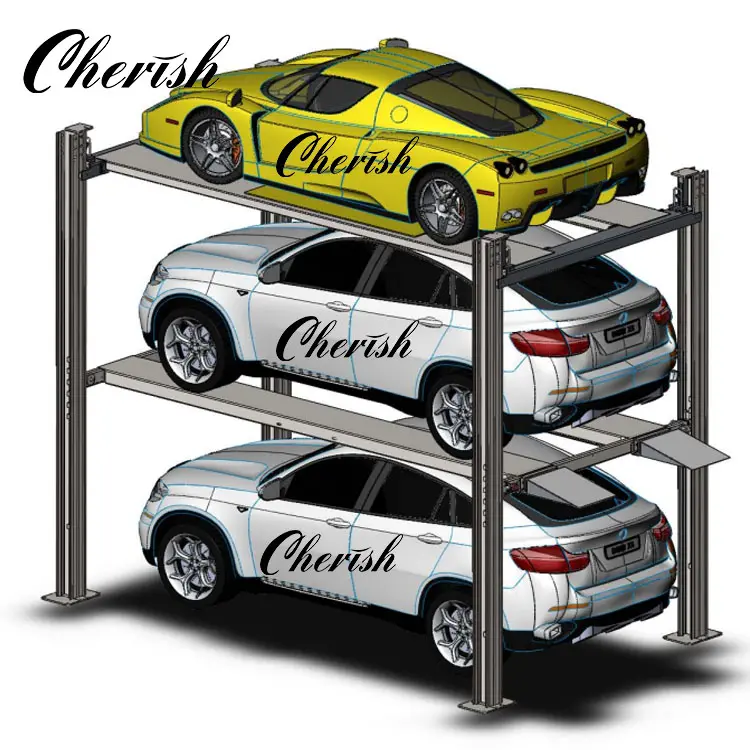

Triple Stacker Parking Lift
It perfectly triples the number of parking spaces, efficiently optimizing parking capacity.
The upper layer has a load-bearing capacity of 2000 kg, the lower layer 3000 kg, and the bottom layer has no restrictions.
Short-column design, suitable for areas with low ceilings, solving vertical space limitations.
Flexible installation: suitable for indoor or outdoor use with a rain shelter.
Designed for concrete-surface installation to ensure a stable foundation.
Wide-deck platform accommodates SUVs, sedans, sports cars, and vans.
Triple Stacker Safety System
🛡️ Equipped with a PLC control system for precise and automated operation.
🛡️ 4 safety locks on each platform to ensure maximum vehicle safety.
🛡️ Multiple anti-fall locks on each column prevent any accidental platform falls.
🛡️ Up-down key switches restrict unauthorized operation.
🛡️ Photo-electric induction system prevents contact between platforms.
🛡️ Hydraulic overload protection safeguards all components from excessive loads.
Specifications
Model No. NEW Sedan Version NEW SUV Version
Lifting Capacity Ground: Unlimited
Lower: 2700 kg
Upper: 2000 kg
Ground: Unlimited
Lower: 3000 kg
Upper: 2000 kg
Ground Floor Usable Height 1600 - 2100 mm 2100 mm
Second Floor Usable Height 1300 - 1800 mm 2100 mm
Column Height 4100 mm 4896 mm
Total Length 5750 mm 6200 mm
Total Width 3000 mm 3000 mm
Usable Width 2367 mm 2367 mm
Power 220/380V 50/60HZ 1/3Ph 2.2Kw
Operation Model Key Switch + Button
Drive Mode Hydraulic Drive + Steel Wire Rope
Drawing & Case
Frequently Asked Questions
How many cars can this system park?
The system is a triple stacker designed to park three vehicles in the space of one by utilizing vertical space.
What is the lifting capacity for each platform?
The upper level supports up to 2000 kg, the lower level supports up to 3000 kg (SUV version), and the ground level has unlimited capacity.
Can it be installed in areas with low ceilings?
Yes, it features a short-column design specifically engineered for areas with limited vertical clearance.
Is this parking lift safe for daily use?
Absolutely. It includes PLC control, 4 safety locks per platform, anti-fall mechanisms, and photo-electric induction to prevent collisions.
What types of vehicles are compatible with the wide-deck platform?
The wide-deck platform is designed to accommodate a variety of vehicles including SUVs, sedans, sports cars, and vans.
Can I install this lift outdoors?
Yes, it can be installed outdoors, provided a rain shelter is used to protect the hydraulic and electrical components.
