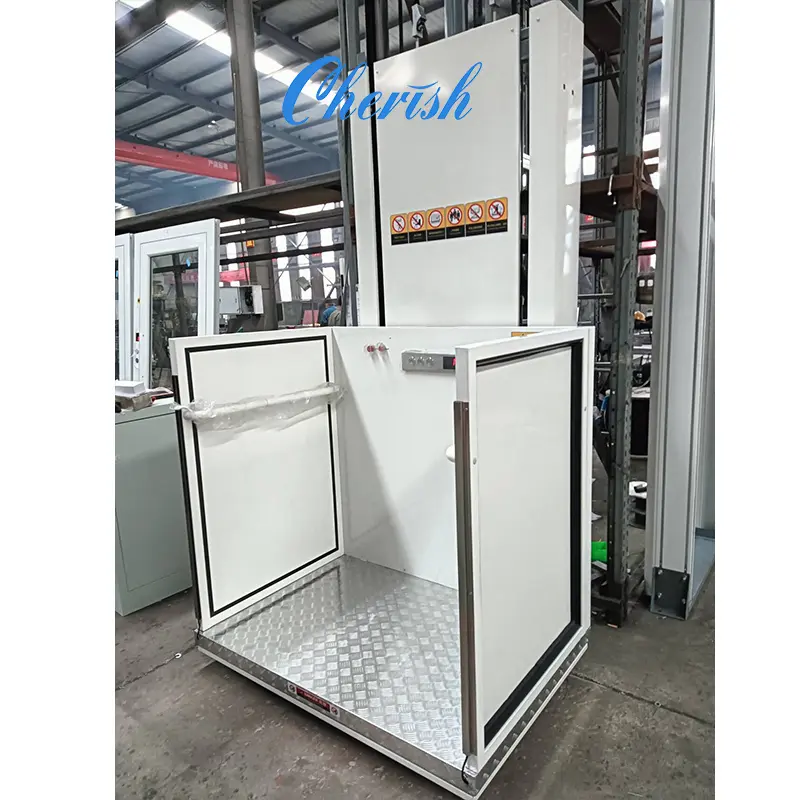

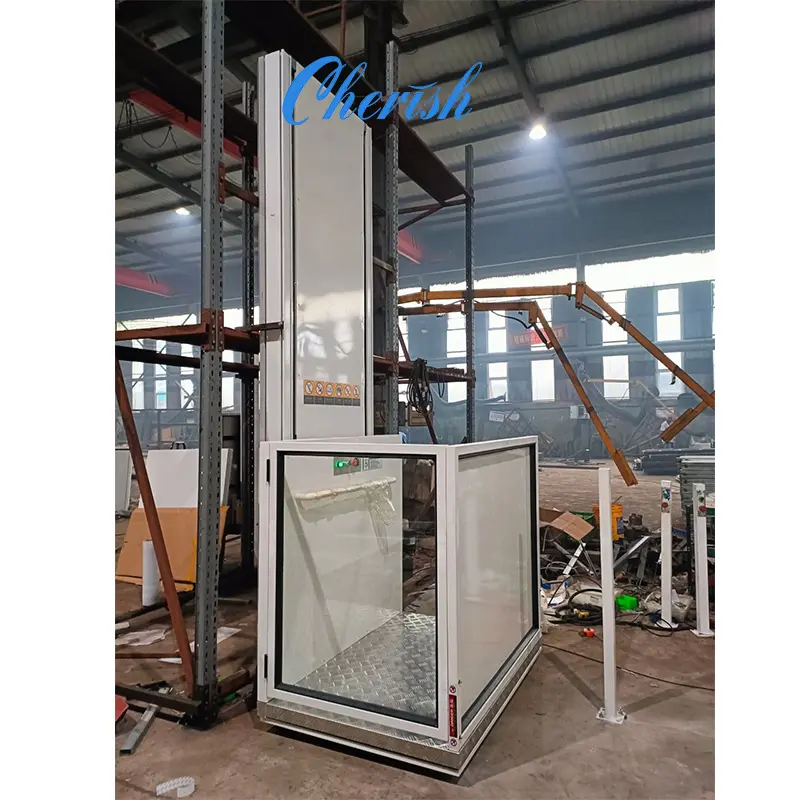

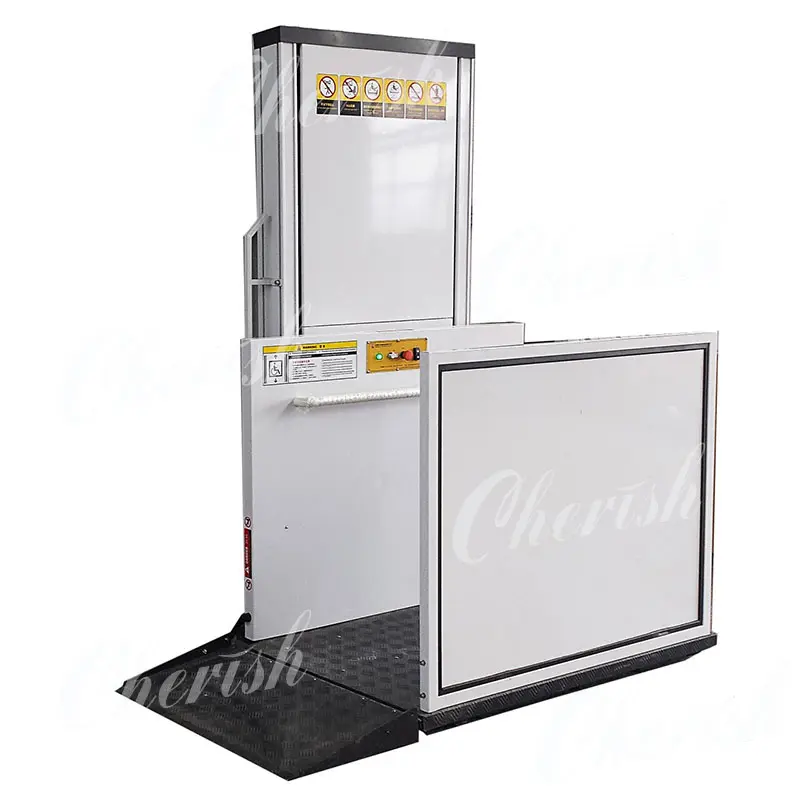

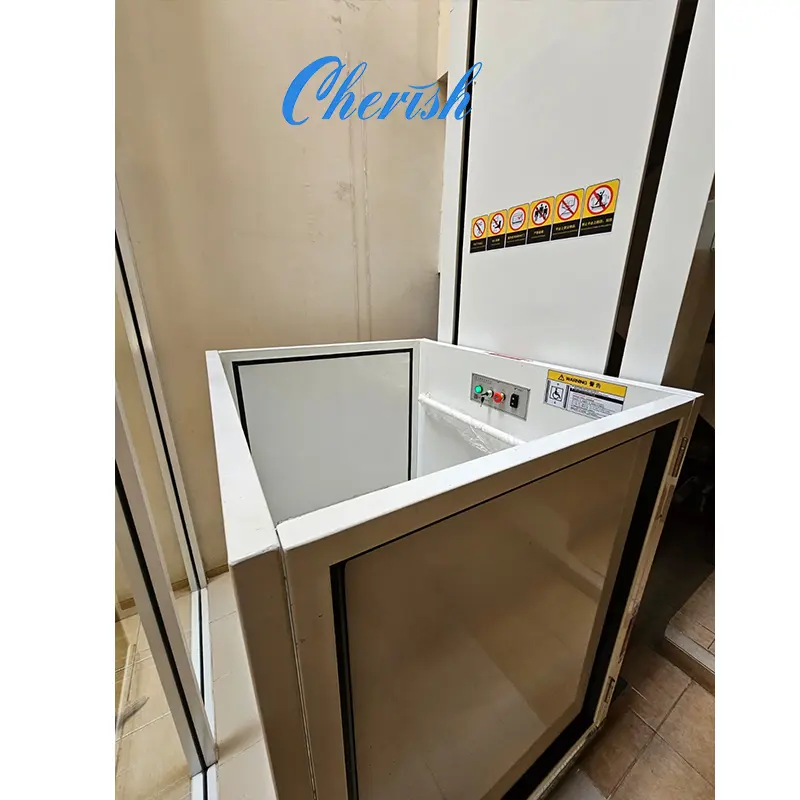

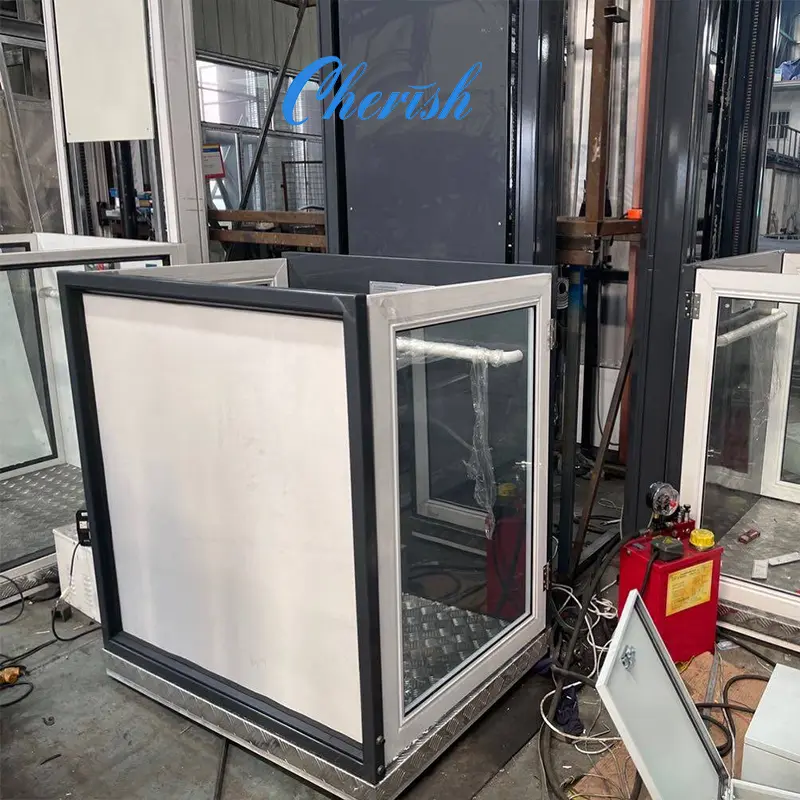

High-Quality Hydarulic Disable Patient Lift Disabled Lift Platform Person Elevator Factory, Product

The small home elevator lift is a space-efficient and practical vertical transport solution designed for both indoor and outdoor installation. Powered by a reliable hydraulic drive system, it delivers smooth, stable, and quiet performance. Simple, user-friendly controls make it easy to operate for all family members, including the elderly and people with limited mobility. With a compact footprint and customizable design options, this home lift enhances daily convenience, improves accessibility, and adds modern functionality to residential properties—without requiring major structural alterations.

Product Description

Products Feature

  • It is equipped with an anti-fall system. When a failure occurs, the lift will be locked and will not drop rapidly.
  • The anti-fall guardrail platform of small electric cargo lift ladder is equipped with guardrails, which can increase the number of lifted goods and prevent them from falling.
  • High-efficiency motor, low energy consumption and low failure rate, which can greatly improve work efficiency.

Specifications

Model No. CSL-3
Lifting Capacity 300kg
Voltage 220-480v
Lifting Height 6000mm
Platform Size 1400*900mm
Drive System Hydraulic
Material of Platform Steel or stainless steel
Working Condition Both indoors and outdoors
Control Device Calling column (installed beside lift) and remote controller (optional configuration)
Emergency Stop The lifting and lowering process can be stopped immediately by pressing the emergency stop button.
Safety device Safety Interlock: Lock the platform when it is out of control.
Emergency down: Can be lowered to ground if power failure.
Installation Non-pit installation, directly fixed to concrete floor.

Drawing

Frequently Asked Questions

What is the maximum lifting capacity of the CSL-3 model?
The CSL-3 model has a maximum lifting capacity of 300kg, making it ideal for small electric cargo transportation.
Can this cargo lift be installed outdoors?
Yes, the lift is designed to operate effectively in both indoor and outdoor environments.
What happens if there is a power failure during operation?
The system includes an emergency down feature, allowing the platform to be safely lowered to the ground manually if the power fails.
Is a pit required for installation?
No, this lift features a non-pit installation. It can be directly fixed to a level concrete floor.
What safety measures prevent the platform from falling?
The lift is equipped with an integrated anti-fall system and safety interlocks that lock the platform immediately if a failure is detected.
How is the lift controlled?
Standard operation is through a calling column installed beside the lift. A remote controller is also available as an optional configuration.
