High-Quality High Quality Home Elevator Lift Hydraulic Outdoor 2 3 4 Floor House Residential Villa Lift Factories, Factory

The small home elevator lift is a compact, efficient vertical mobility solution suitable for both indoor and outdoor applications. Driven by a stable and reliable hydraulic system, it ensures smooth and quiet operation. The intuitive control panel allows easy use for all household members, including seniors and those with reduced mobility. Designed to save space and support customized layouts, this home elevator improves everyday comfort and accessibility while adding modern value to residential spaces—without the need for extensive building modifications.

Product Description

Products Feature
  • Safety sensor on bottom of platform, lift will automatic stops once it meet obstacle.
  • Emergency stop: lifting and lowering process can be stopped immediately.
  • Small size install space required.
  • Non-Pit installed or pit installed options available.
  • Low noise motor designed for indoor home use.
  • T-Rail for stable and smooth running.
Specifications
Model No. CSL-3
Drive Mode Hydraulic
Lifting Height 2m / 3m / 5m / Customized
Loading Capacity 200kg / 500kg / 800kg / Customized
Platform size 1000*1000mm / Customized
Voltage 220v / 380v, 1ph / 3ph
Surface treatment Spraying

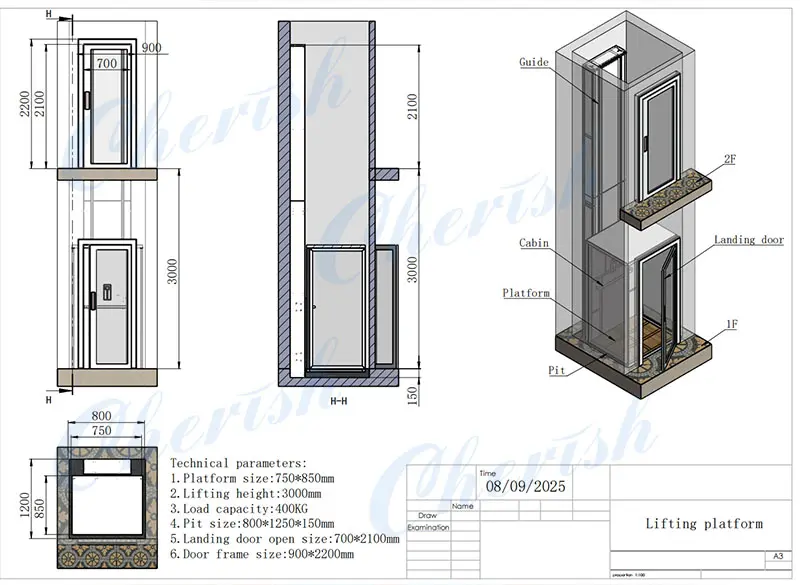

Drawing & Design
Frequently Asked Questions
Q: What happens if the lift encounters an obstacle during descent?

A: The lift is equipped with a safety sensor on the bottom of the platform. It will automatically stop immediately upon meeting any obstacle to ensure user safety.

Q: Can this elevator be installed in an existing house without a pit?

A: Yes, this model supports both non-pit installation and pit installation, making it highly flexible for different home structures.

Q: Is the motor loud during operation?

A: No, the system uses a low-noise motor specifically designed for indoor home use to ensure a quiet environment.

Q: What is the maximum loading capacity?

A: The standard loading capacity ranges from 200kg to 800kg, but it can also be customized based on your specific requirements.

Q: How does the T-Rail improve the performance of the lift?

A: The T-Rail provides a robust guide system that ensures the platform runs stably and smoothly without shaking during lifting and lowering.

Q: What power supply is required for installation?

A: The lift supports multiple voltage options, including 220v and 380v, in both single-phase (1ph) and three-phase (3ph) configurations.
