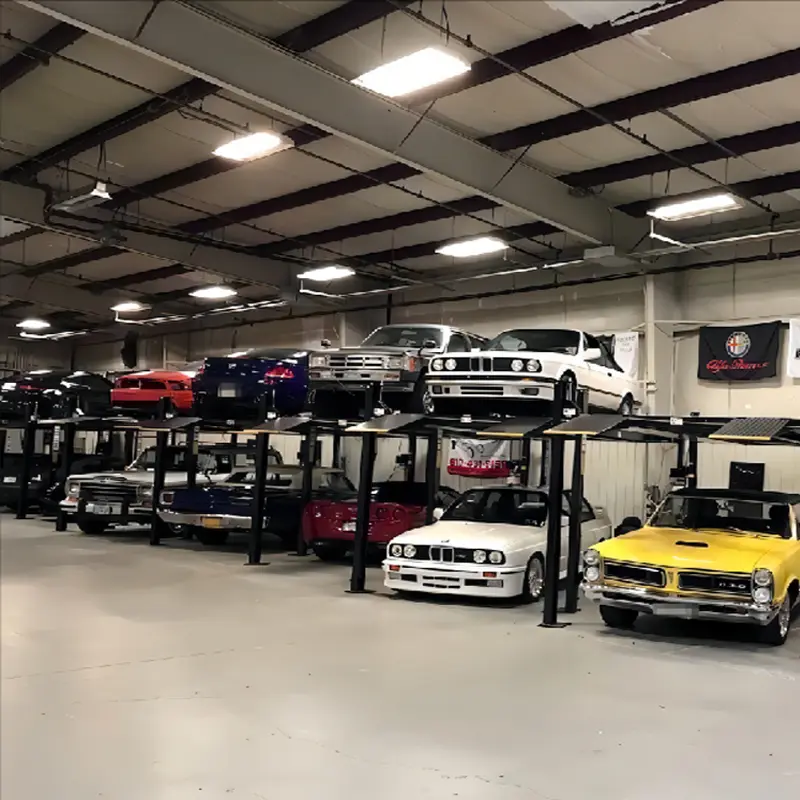

High-Quality Hydraulic 4 Post Car Parking Lift for Car Repair Factory, Product

The CHFL3700 is a highly efficient and practical two-level parking lift designed to maximize space utilization. With its ability to double the available parking capacity, it is an ideal solution for both residential and commercial applications.

Engineered to handle heavy-duty vehicles with ease, the CHFL3700 delivers dependable support and long-lasting performance. Its straightforward, rugged design ensures a smooth and hassle-free installation, saving both time and labor.

Beyond vehicle parking, this lift offers exceptional versatility—it’s also perfectly suited for secure boat storage, providing a stable and reliable platform for your marine equipment.

Whether for cars or boats, the CHFL3700 combines strength, simplicity, and adaptability in one smart solution.

Product Description

Products Feature

Four Post Parking Lift CHFL3700E Features
  • Easy to operate and well-designed with a 3500 kg load-bearing capacity, efficiently handling various vehicles.
  • Adjustable platform stops at different heights to adapt to various vehicles and garage ceiling heights.
  • High-strength platform runway and ramps made of stable diamond-shaped steel plates.
  • Anti-slip ramp surfaces enhance safety in wet or slippery conditions.
  • Anti-shake sliders on each column maintain platform stability and reduce vibration during operation.
  • Electric/hydraulic power system providing precise control and strong power output.
  • Single hydraulic cylinder installed below the runway for a simplified structure and smooth lifting.
  • Anti-fall mechanical locks at multiple heights on all four columns to prevent emergency falls.
  • Button-type pneumatic safety release for quick and easy safety mechanism activation.
  • Durable surface treatments: powder-coated for indoor use and hot-dip galvanized for outdoor use.
Parking Lift Mechanism

Specifications

Model No. CHFL3700
Lifting Capacity Max 3500kg
Lifting Height 1965mm
Height of Post 2276mm
Outside Edge of Runways 1897mm
Overall Width 2667mm
Outside Length 4883mm
Operation Mode Key Switch + Button
Power Supply / Motor Capacity 220/380v, 50 / 60Hz, 1/3Ph, 2.2Kw
Drive Mode Hydraulic Drive + Steel Wire Rope

Drawing & Case

Technical Drawing
Four Post Parking Lift Case 1
Four Post Parking Lift Case 2
Four Post Parking Lift Case 3

Frequently Asked Questions

What is the maximum lifting capacity of the CHFL3700?
The lift is designed with a heavy-duty load-bearing capacity of up to 3500 kg, making it suitable for a wide range of vehicles including SUVs and sedans.
Can this parking lift be installed outdoors?
Yes. While the standard version is powder-coated for indoor use, we offer a hot-dip galvanized surface treatment specifically designed to protect the lift from corrosion in outdoor environments.
How does the safety system work?
The lift features anti-fall mechanical locks on all four columns at various heights. It also includes a pneumatic safety release and anti-slip ramps to ensure maximum operator and vehicle safety.
Is the lifting height adjustable for low ceilings?
Yes, the platform can be stopped at different heights. This flexibility allows it to adapt to various vehicle profiles and different garage ceiling heights.
What type of power supply is required?
The system supports 220V or 380V power supplies at 50/60Hz, with a 2.2Kw motor capacity, available in both 1-phase and 3-phase configurations.
What makes the platform stable during operation?
Each column is equipped with anti-shake sliders that reduce vibrations and maintain platform stability throughout the lifting and lowering process.
