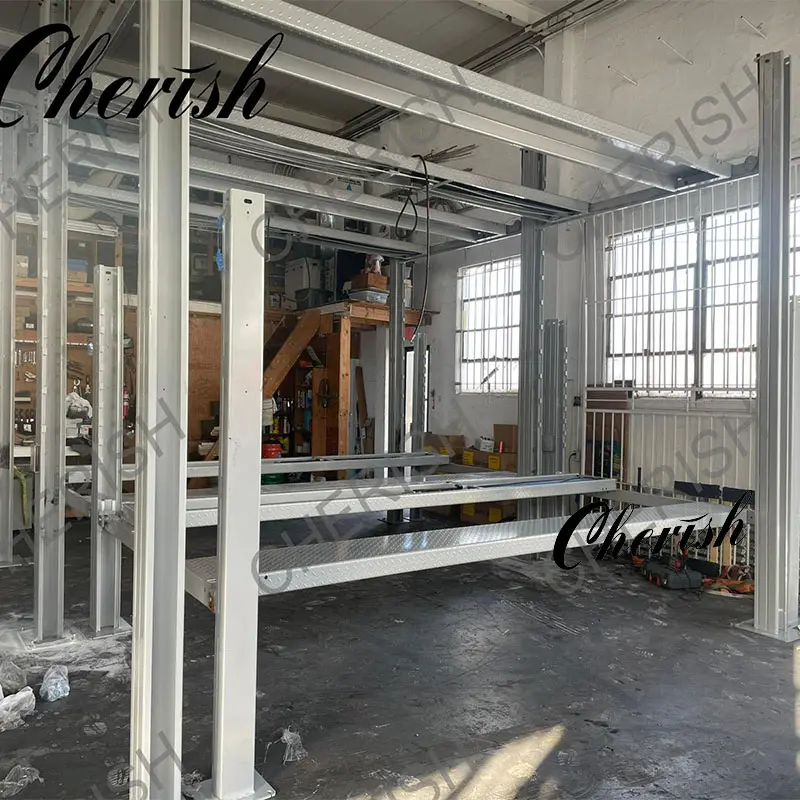

CE Certification Hydraulic 3 Level Four Post Car Lift Parking Car Stacker Manufacturer, Product

CHFL4-3 – Triple Car Storage with Maximum Flexibility
Triple-stack four-post car lift with separate large and small lifts. Flexible, secure, and ideal for maximizing storage and enabling
The Cherish CHFL4-3 is a four-post car lift designed for efficient vehicle storage, featuring a triple stacker system that can store up to three cars vertically. Combining a large 4 post lift and a small 4 post lift—each with its own control system—the CHFL4-3 offers enhanced security, flexibility, and cost performance compared to traditional storage lifts.
One of the standout features of the CHFL4-3 is its ability to operate as two independent lifts. While one lift is used for car storage, the other can serve for maintenance or repair, maximizing space and operational efficiency. Its robust four-post design provides a stable platform suitable for SUVs, trucks, and standard vehicles, while the triple-stacker configuration makes it ideal for garages or commercial parking facilities with limited space.
With separate control systems for each lift, the CHFL4-3 ensures enhanced safety, independent operation, and added security, reducing the risk of unauthorized access or accidental operation.

Product Description

Products Feature
3 Cars Four Post Parking Lift
Parking Lift Platform
🏠
Versatile Application: Suitable for homes, commercial settings, and vehicle storage facilities, catering to various professional needs.
🚀
Space Optimization: Two independent 4-post parking lifts installed together (top and bottom) to maximize vertical space utilization.
⚙️
Smooth Operation: Driven by hydraulic cylinders and a pulley-wire rope lifting system for consistent stability.
🛡️
Double Security: Features an automatic internal ladder locking system and an electromagnetic lock released via a simple button.
💎
Durable Build: Hot-dip galvanized and corrugated platforms provide anti-corrosion resistance and a long service life.
🏎️
Sports Car Friendly: Foldable ramp design specifically accommodates low-clearance vehicles while saving floor space.
🛑
Safety Deck: Anti-slip corrugated deck protects both vehicles and operators from accidental slips.
🛢️
Premium Components: Italian oil seals prevent leakage, and chrome-plated piston rods ensure long-term anti-corrosion performance.
Specifications
Model: CHFL4-3 Upper Platform Lower Platform
Lifting capacity Ground floor unlimited, 2nd floor 3000kg, 3rd floor sedan 2000kg
Total width 2671 mm
Outside length 6120 mm
Height of post 3836mm 2276mm
Maximum lifting height 3540mm 1960mm
Distance between posts 2353mm
Runway width 473mm
Runway length 4630mm
Motor Power 2.2 kw
Power Supply 220V, 50Hz, 1 Ph (special voltages available upon request)
Surface treatment Powder coating or galvanizing
Operation Model Key switch + control button
Safety System 4 safety locks per floor and auto protection device
Drawing & Case Studies
Technical Drawing
Installation Case 1
Installation Case 2
Installation Case 3
Frequently Asked Questions
What is the maximum lifting capacity for this triple parking lift?
The ground floor has unlimited capacity. The second floor can support up to 3000kg, and the third floor is designed for sedans with a capacity of up to 2000kg.
Is this lift suitable for sports cars with low ground clearance?
Yes, it features a specialized foldable ramp designed for sports cars, facilitating easy entry and exit while occupying minimal space.
How does the safety locking system work?
The system includes an automatic internal ladder latch lock for every floor and an electromagnetic lock that can be easily released via the operation control box.
Can the power supply be customized for different regions?
Standard configuration is 220V, 50Hz, 1 Phase, but special voltage requirements can be accommodated upon request.
What kind of maintenance is required for the hydraulic system?
The lift uses high-quality Italian oil seals and chrome-plated piston rods to prevent leaks and corrosion, ensuring long-term performance with minimal maintenance.
What are the available surface treatments?
Customers can choose between high-quality powder coating or galvanizing for superior weather resistance and durability.
