Products Feature
✔
Double-wide Design: Accommodates four vehicles efficiently utilizing space, ideal for areas with limited parking.
✔
Customizable Layout: Compact design that can be tailored to fit small garages or large parking lots.
✔
Dual Safety Locks: Features an integrated adjustable safety lock ladder and an automatic break-protection mechanism.
✔
Versatile Runway: Designed to accommodate both wide and narrow vehicles for flexible entry and exit.
✔
High Capacity: Total lifting capacity of 3000 kg, suitable for sedans and SUVs.
✔
Multi-position Locks: Each column is equipped with multi-position safety locks for enhanced stability.
✔
Hidden Hydraulic Cylinder: Sleek look with smooth and efficient operation.
✔
Reduced Cable Fatigue: Increased pulley diameter extends the service life of cables.
✔
Mechanical Anti-fall Locks: Allows for multiple stop heights for parking and maintenance convenience.
✔
Adjustable Components: Customizable positions for both the power unit and control panel.
✔
Protective Devices: Systems to prevent wire rope loosening and breakage.
✔
Premium Finish: Powder-coated surface for aesthetic appeal and long-term corrosion protection.
Specifications
| Model No. |
CHFL2+2 |
| Lifting Capacity |
3000 kg |
| Lifting Height |
1965 mm |
| Width between Runways |
3823 mm |
| Lock Device |
Dynamic |
| Lock Release |
Electric auto release |
| Drive Mode |
Hydraulic Driven + Cable |
| Power Supply / Motor |
220/380v, 50 / 60Hz, 1/3Ph, 2.2Kw |
| Safety Device |
Anti-falling Device |
| Operation Mode |
Hydraulic Drive + Steel Wire Rope |

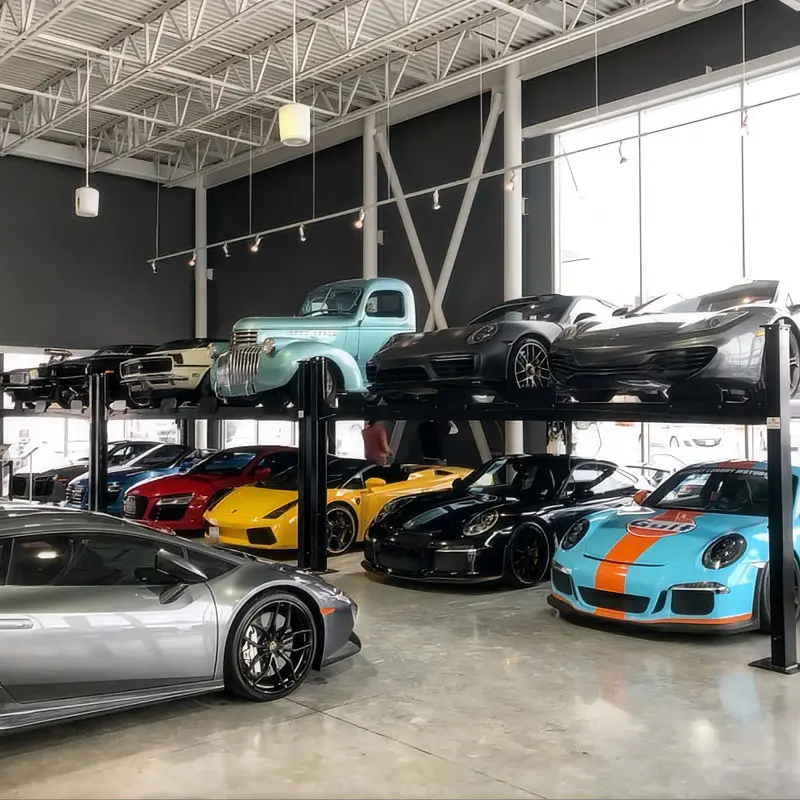

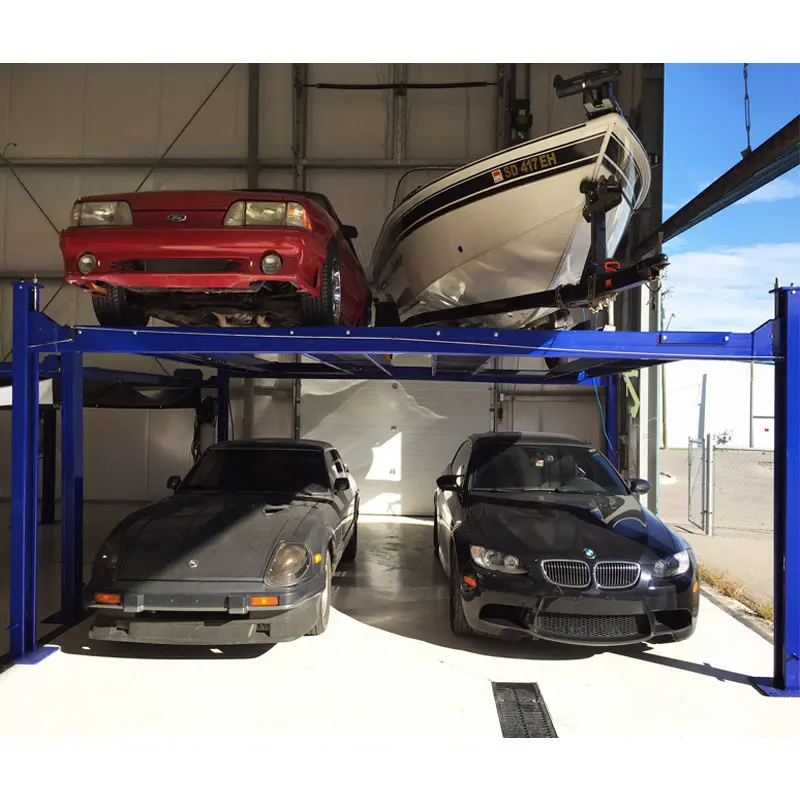

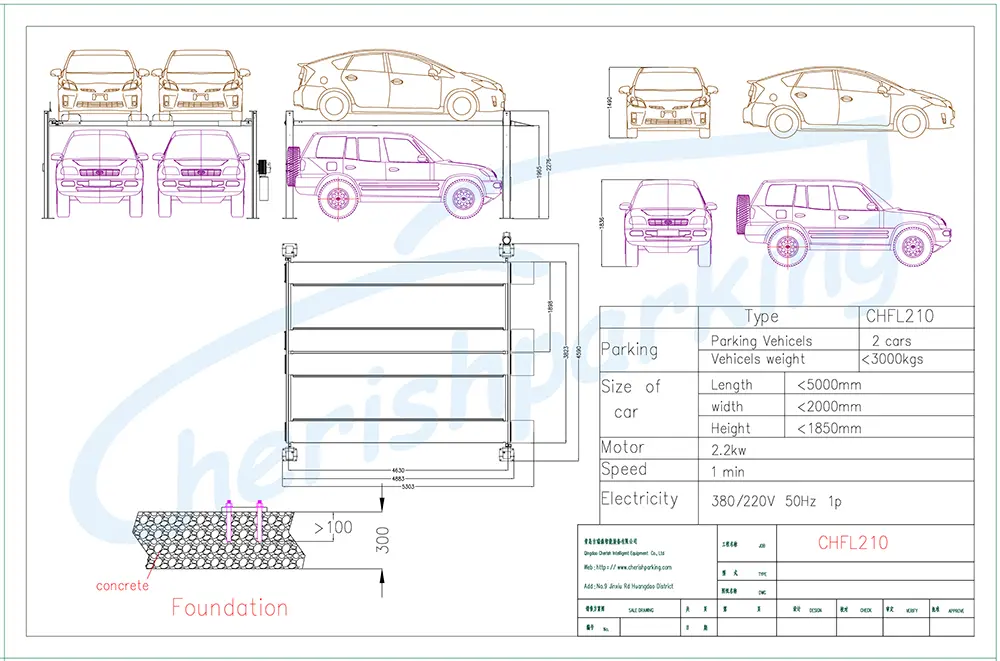

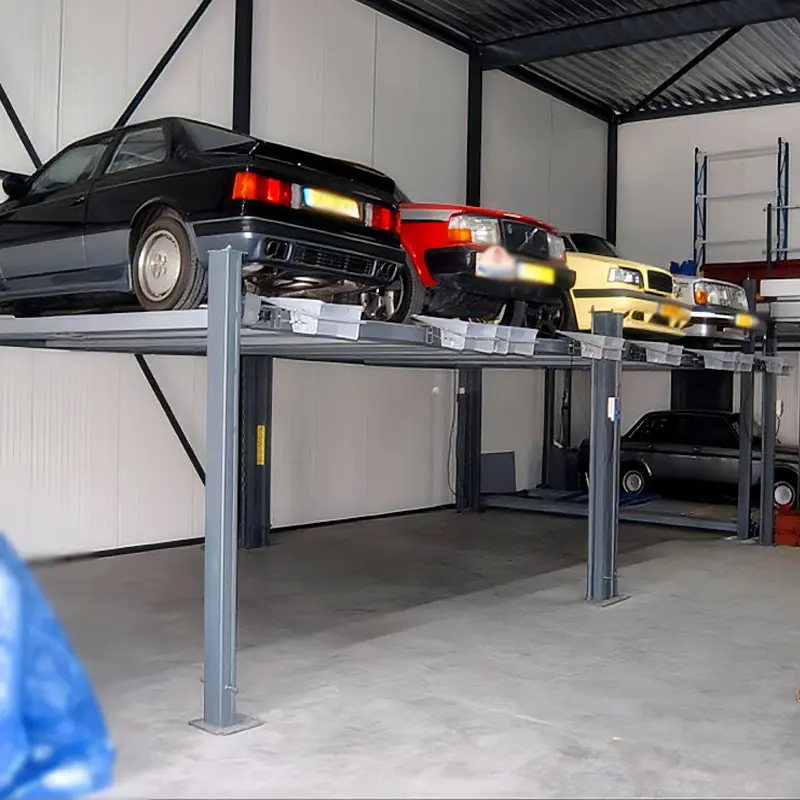

Drawing & Case Studies
Frequently Asked Questions
Q1: How many vehicles can this parking lift accommodate?
A: This is a double-wide four-post design that can park up to four vehicles simultaneously in a single setup.
Q2: What is the maximum lifting capacity of the unit?
A: The lift has a total lifting capacity of 3000 kg, making it suitable for a wide range of vehicles including sedans and SUVs.
Q3: What safety features are included to protect my cars?
A: It features dual safety locks (adjustable ladders and wire rope break activation), multi-position column locks, and mechanical anti-fall devices.
Q4: Can the installation be customized for my garage layout?
A: Yes, the positions of the power unit and the control panel are adjustable to fit various environmental requirements and space constraints.
Q5: Is the equipment durable against corrosion?
A: Yes, the entire surface is treated with a high-quality powder coating, providing an aesthetic finish and protection against corrosion.
Q6: What type of vehicles can use the runways?
A: The runways are designed with flexibility to accommodate both wide and narrow vehicles, ensuring easy access for different car types.
