The puzzle parking system is a cutting-edge solution designed to maximize parking lot efficiency in densely populated areas. By utilizing automatic sliding and lifting platforms, it offers a seamless multi-level parking experience, allowing for optimal space utilization. This innovative system is easy to operate, accommodating most types of vehicles, from sedans to SUVs. Its compact design significantly reduces the space needed for parking, making it an ideal choice for urban environments where space is at a premium. Whether for residential, commercial, or public facilities, the puzzle parking system addresses the growing demand for parking spaces. With its modern automation, it simplifies parking challenges, reduces traffic congestion, and enhances the overall user experience. Additionally, it contributes to a more sustainable approach by maximizing the available land area for parking.

Product Description

Products Feature

  • Customized according to your land and requirements.
  • Suitable for most cars, including sedan, SUV, and half-SUV models.
  • Independent parking available in 2-6 levels.
  • Advanced motor and cable drive system.
  • Easy operation with maximum parking comfort.
  • ID card and manual operation support.
  • Control panel equipped with PLC control system.
  • Reliable mechanical 4 points anti-falling protection.
  • Full CE approval for safety standards.

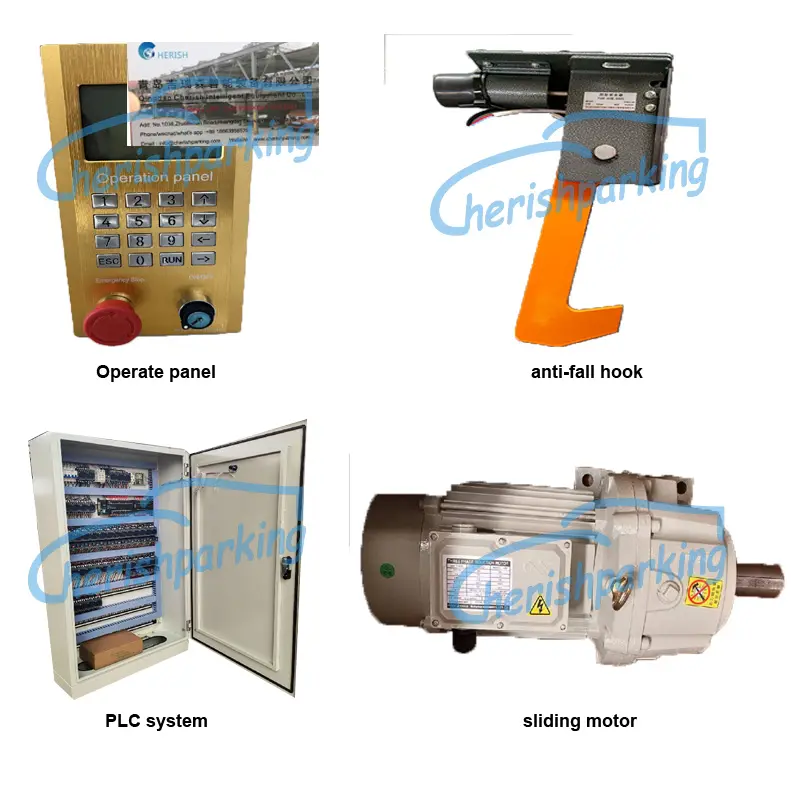

car parking system 1

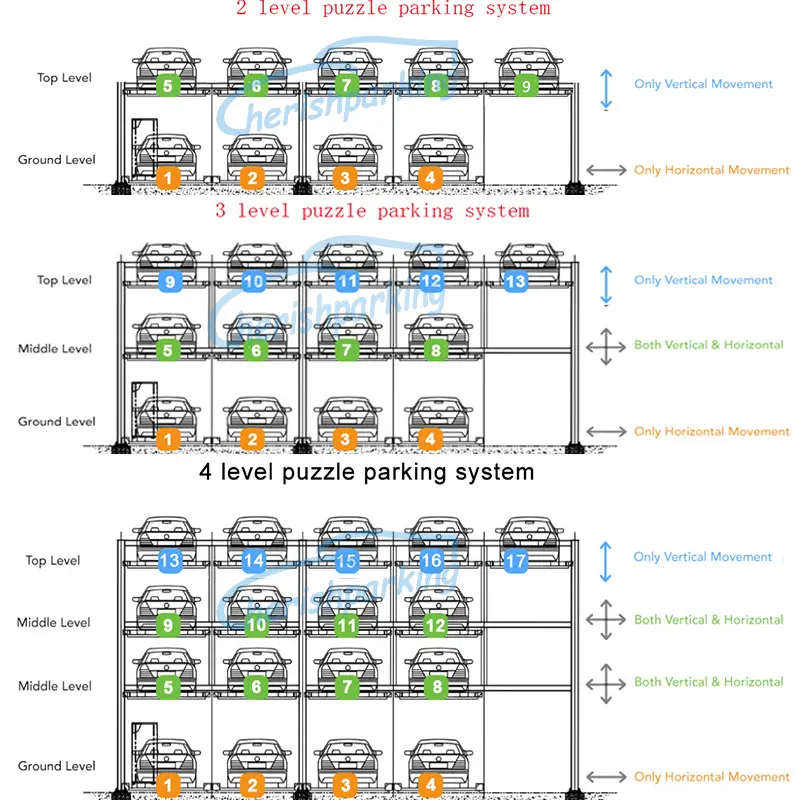

car parking system 2

Applications: Ideal for parking lots, residential buildings, commercial buildings, home garages, hotels, car dealerships, car collectors, and car storage facilities.

📋

Specifications

Parameters PSH-sedan PSH-SUV
Lifting Capacity 2000 kg 2500 kg
Lifting Height 1700 mm 2100 mm
Usable Platform Width 2400 mm 2500 mm
Overall Height 2-6 level / customized
Overall Length 6000 mm
Motor Capacity 0.2kw / 2.2kw / 3.7kw
Power Supply 380V, 50Hz / 60Hz, 3Ph
Safe Device Mechanical 4 points anti-fall hook
Drive Mode Motor + Chain / Cable
📐

Drawing & Case

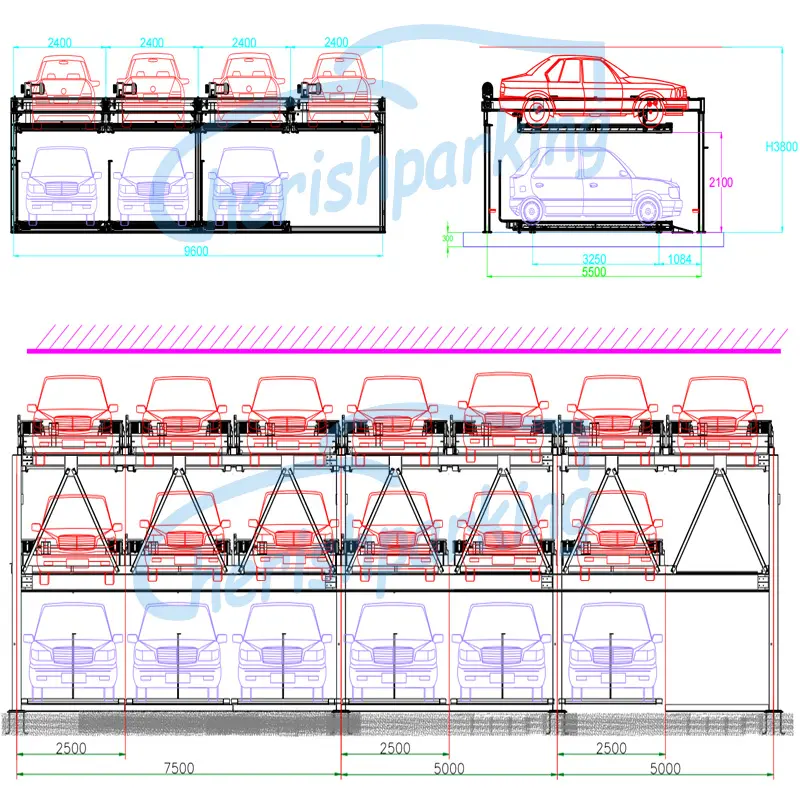

drawing of puzzle parking system

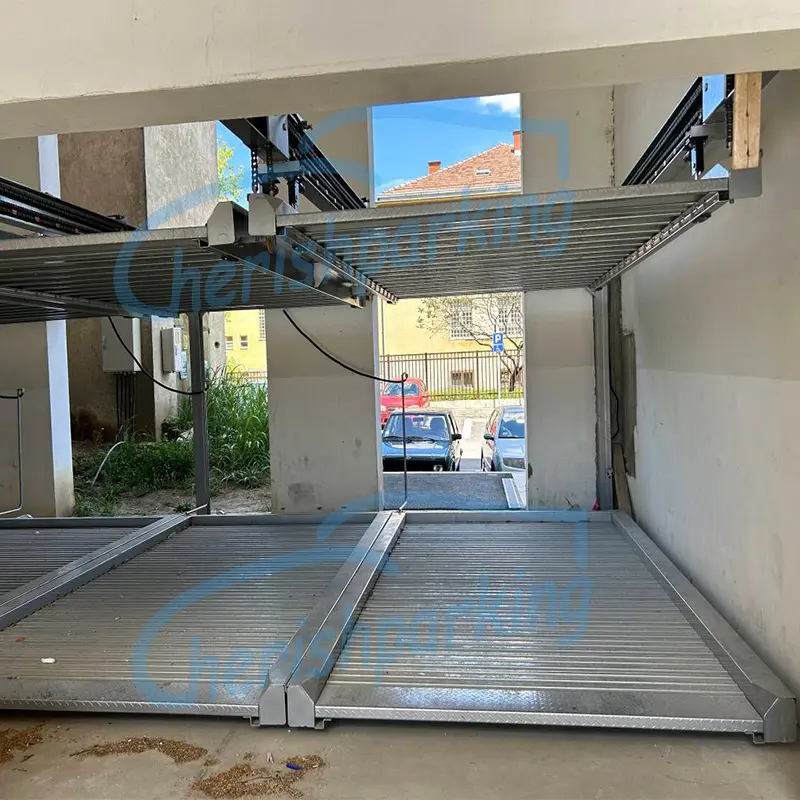

auto parking system 1

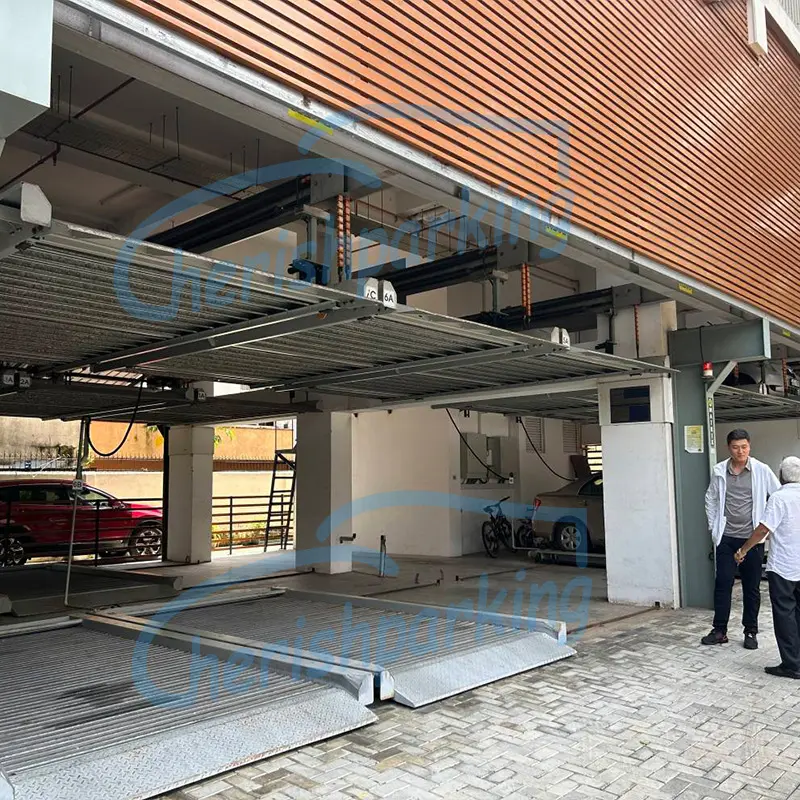

auto parking system 2

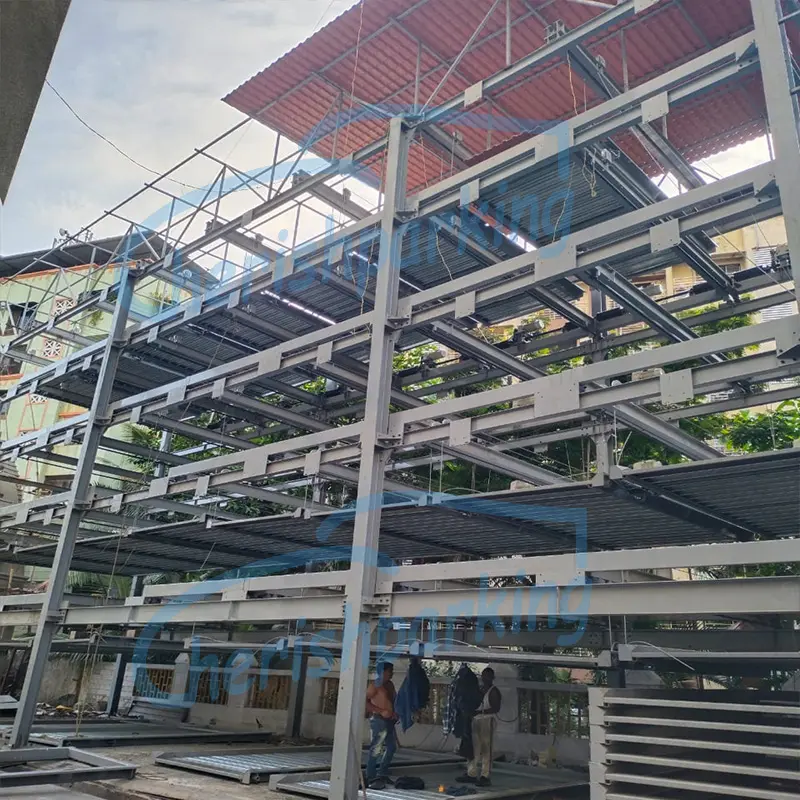

auto parking system 3
?

Frequently Asked Questions

How many levels can be customized for this parking system?
The system supports independent parking across 2 to 6 levels, and can be customized based on your specific land availability and height requirements.
Is this system suitable for heavy SUVs?
Yes, the PSH-SUV model has a lifting capacity of 2500 kg and a platform width of 2500 mm, making it ideal for most SUV models.
What safety mechanisms are included to prevent falls?
The system is equipped with a reliable mechanical 4-point anti-falling protection system (safety hooks) and is fully CE approved.
What are the power requirements for installation?
The standard power supply required is 380V, 50Hz or 60Hz, 3-Phase.
How is the system operated by the user?
It features a user-friendly PLC control system that can be operated via ID cards or manual controls for convenient parking and retrieval.
Where can this parking system be installed?
It is highly versatile and suitable for residential buildings, commercial complexes, car dealerships, hotels, and private collector garages.
