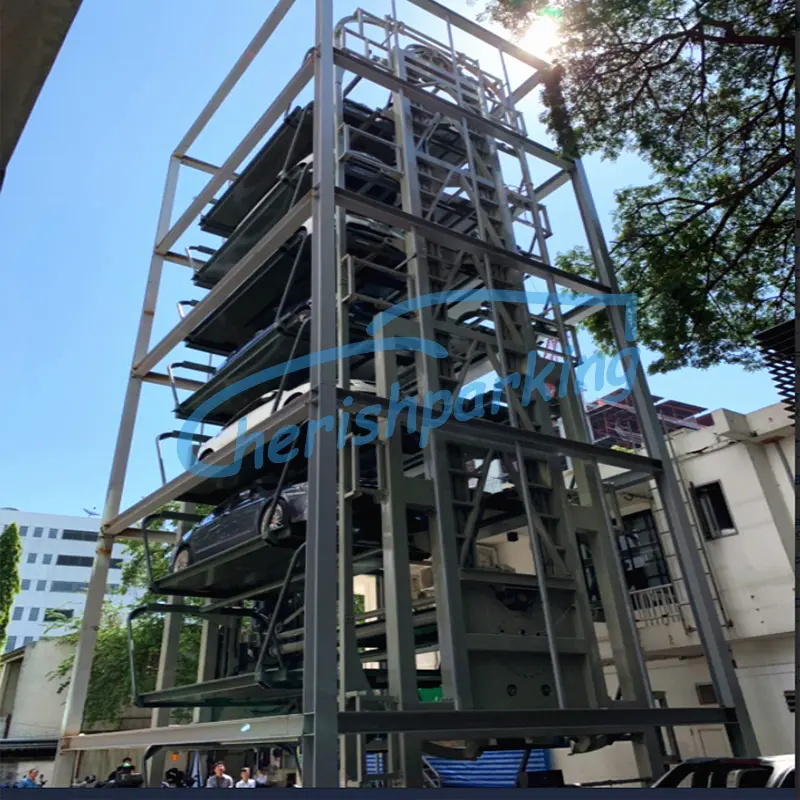

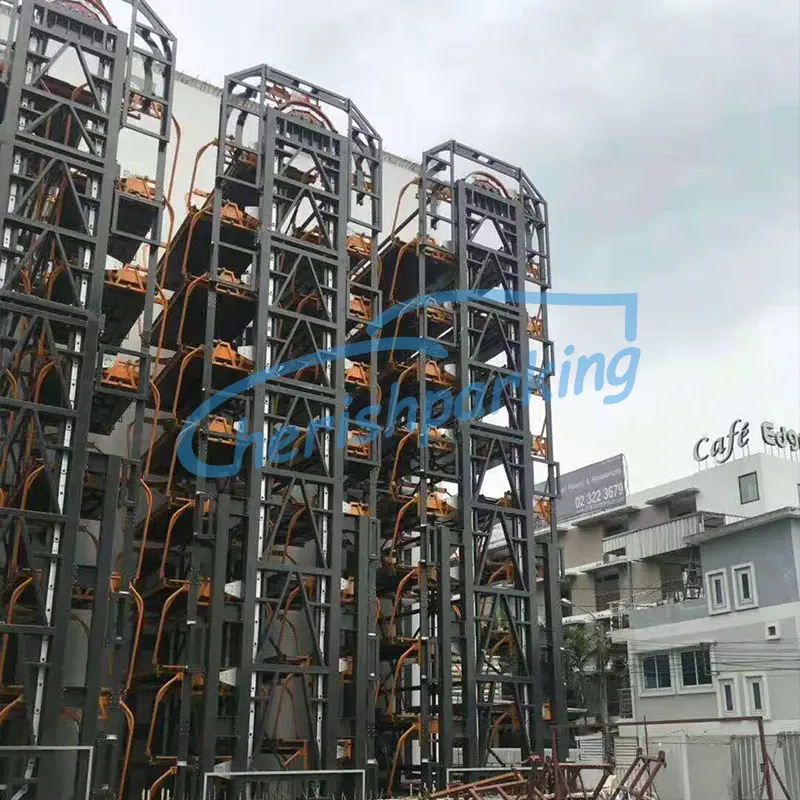

High-Quality Automatic Carousel Vertical Rotary Parking System Factory, Products

Rotary parking system is one of the most space-saving systems that allows you to park up to 16 SUVs or 20 sedans in only 2 conventional parking spaces. The system is independent, parking attendant is not required. By inputting a space code or swiping a pre-assigned card, the system can recognize your car automatically and find the faster path to deliver your car down to ground either clockwise or counterclockwise. Urbanization and increasing vehicular ownership have led to a significant demand for efficient parking solutions, especially in space-constrained areas. Among innovative parking systems, the automatic rotary parking system stands out as a compact and efficient solution. It leverages a carousel-based, vertical parking mechanism, offering a space-saving, multi-level arrangement that optimizes land usage and minimizes operational complexity.

Product Description

Products Feature

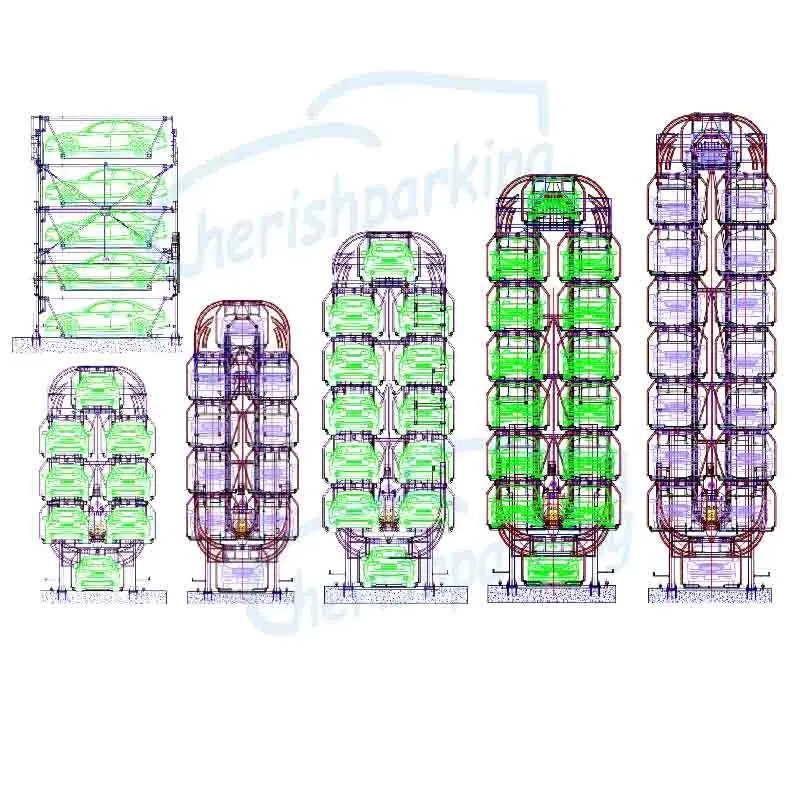

rotary parking system feature 1

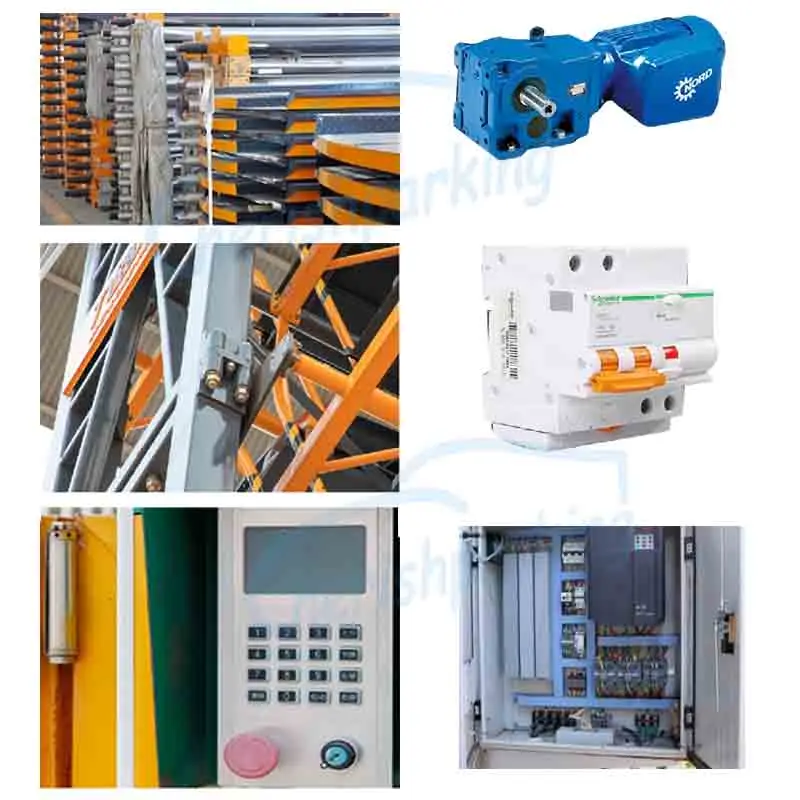

rotary parking system feature 2
Accommodating a wide variety of vehicles, including sedans, SUVs, and compact cars, making it highly adaptable for different parking needs.
Its compact design minimizes the area needed for installation, making it more efficient than traditional parking solutions.
Up to 10 times space saving compared to traditional parking.
Quick car retrieval and easy operation.
Modular design and simpler installation.
It runs quietly, reducing noise pollution and ensuring minimal disruption to nearby residents or businesses.
With its efficient use of space and low maintenance costs, the system offers a high return on investment.
Ideal for diverse environments such as public areas, office buildings, hotels, hospitals, and shopping malls.
Specifications
Model No. PCX
Car Space 8, 10, 12, 14, 16
Loading capacity 2000kg/2500kg
Operation type Button + card
Power 380v, 3ph
Parking manner Forward parking & Reverse retrieving
Control mode PLC
Running Control mode Double system Power frequency and frequency conversion
Drawing & Case Study

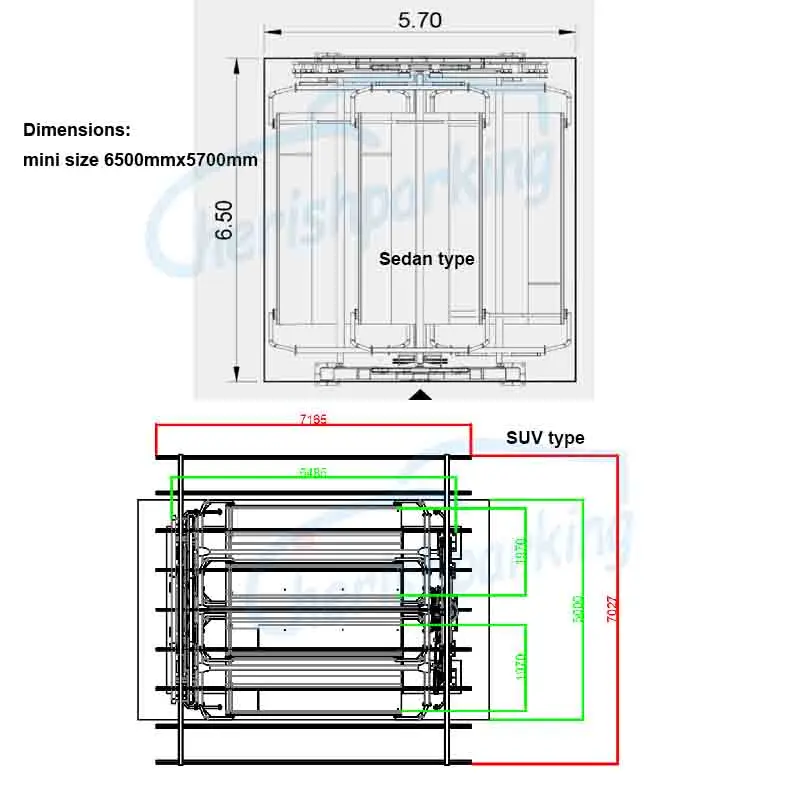

drawing of rotary parking system

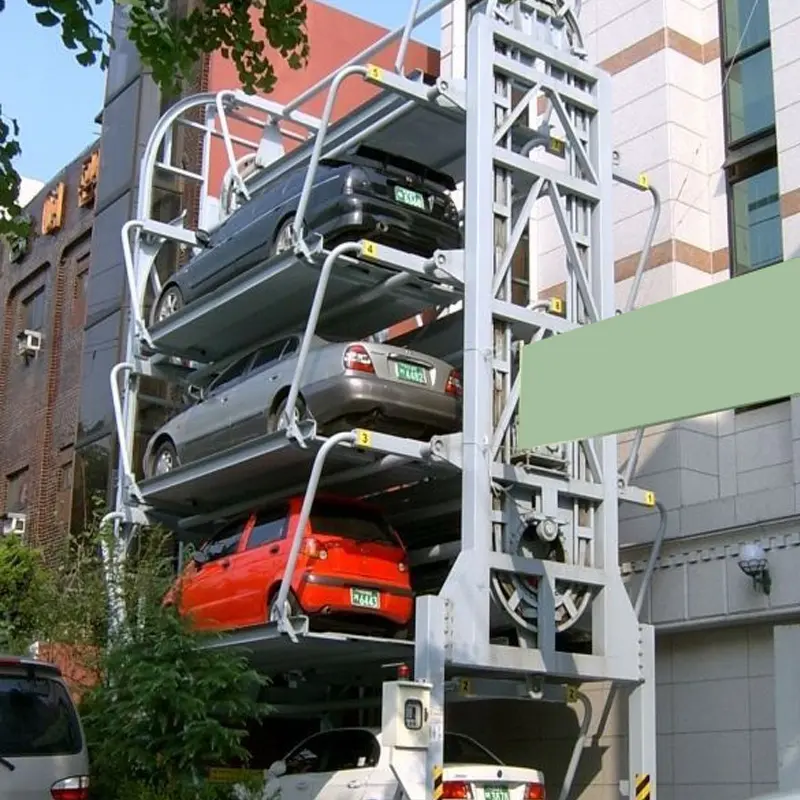

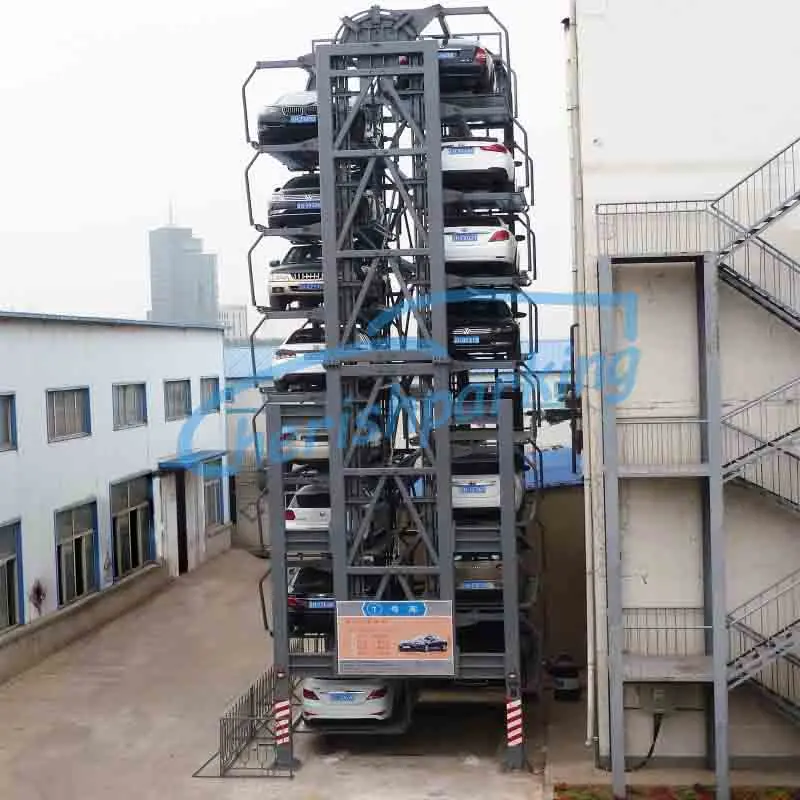

rotary parking system case 1

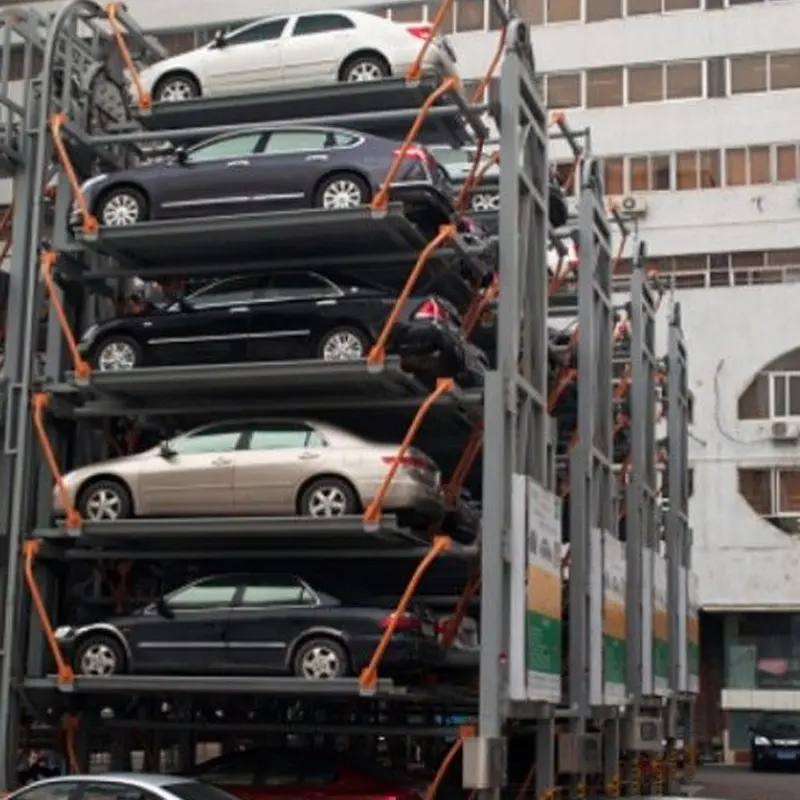

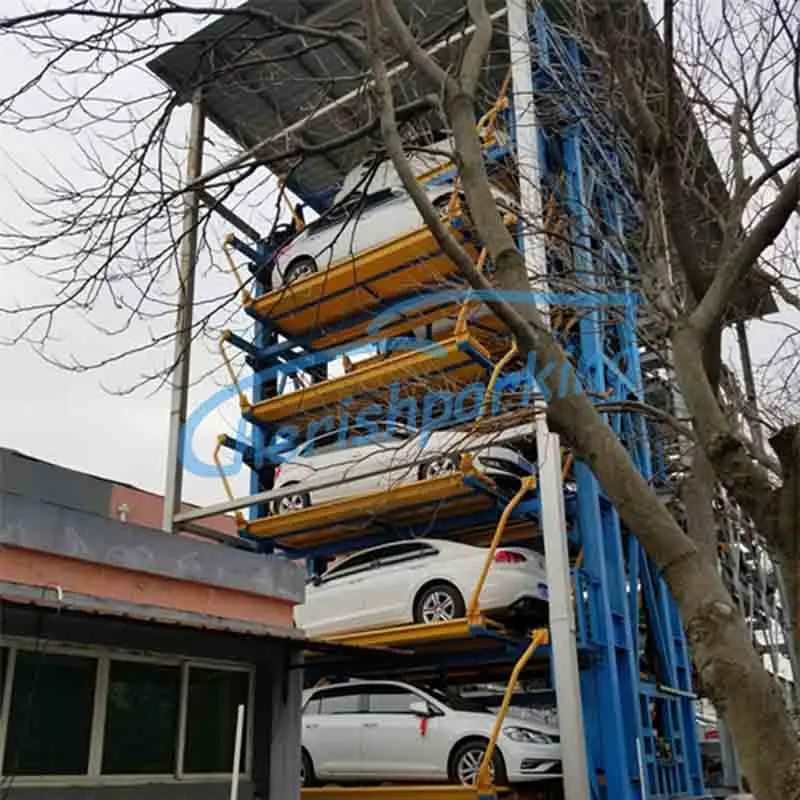

rotary parking system case 2

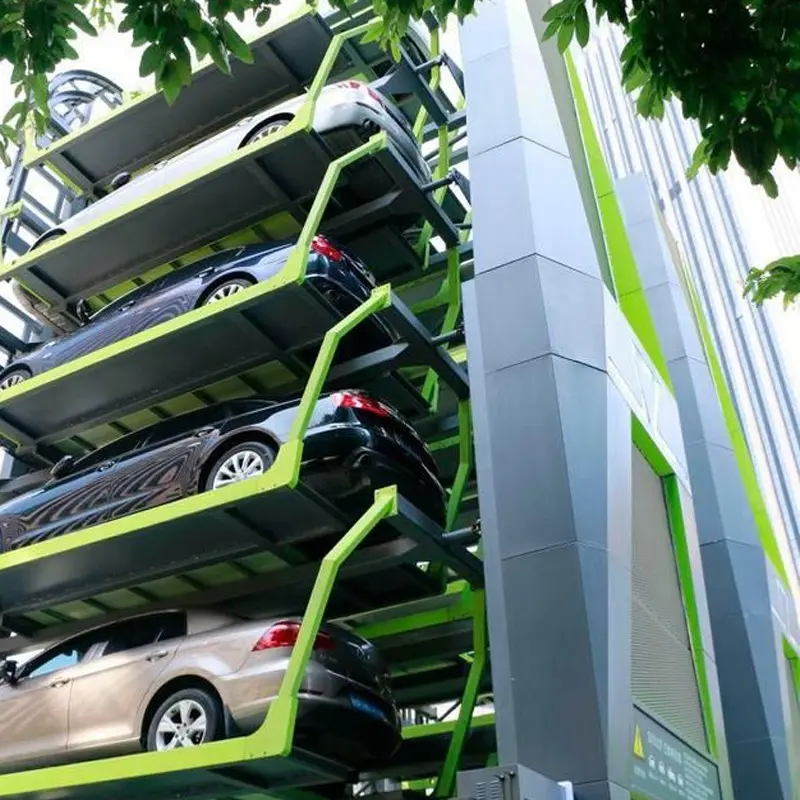

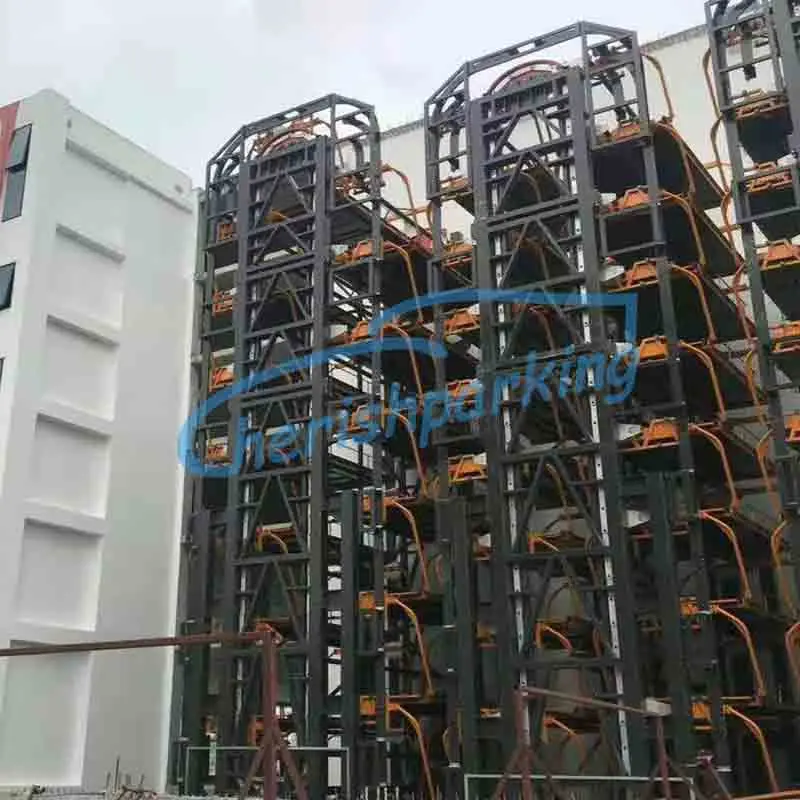

rotary parking system case 3
Frequently Asked Questions
🔹 How much space can the Rotary Parking System save?
The system can save up to 10 times the space compared to traditional parking layouts by utilizing vertical space efficiently.
🔹 What types of vehicles are compatible with the system?
It is highly adaptable and can accommodate a wide variety of vehicles, including sedans, SUVs, and compact cars with a loading capacity of up to 2500kg.
🔹 Is the operation complex for car retrieval?
No, the system is designed for quick car retrieval and easy operation using a simple button and card interface controlled by a PLC system.
🔹 Does the system generate a lot of noise during operation?
The system runs quietly, minimizing noise pollution, which makes it ideal for residential areas, hotels, and office buildings.
🔹 What are the power requirements for installation?
The standard power requirement for the PCX model rotary parking system is 380V, 3-phase power.
🔹 Is the installation process difficult?
Thanks to its modular design, the installation process is simplified, allowing for faster setup in diverse environments such as hospitals and shopping malls.
