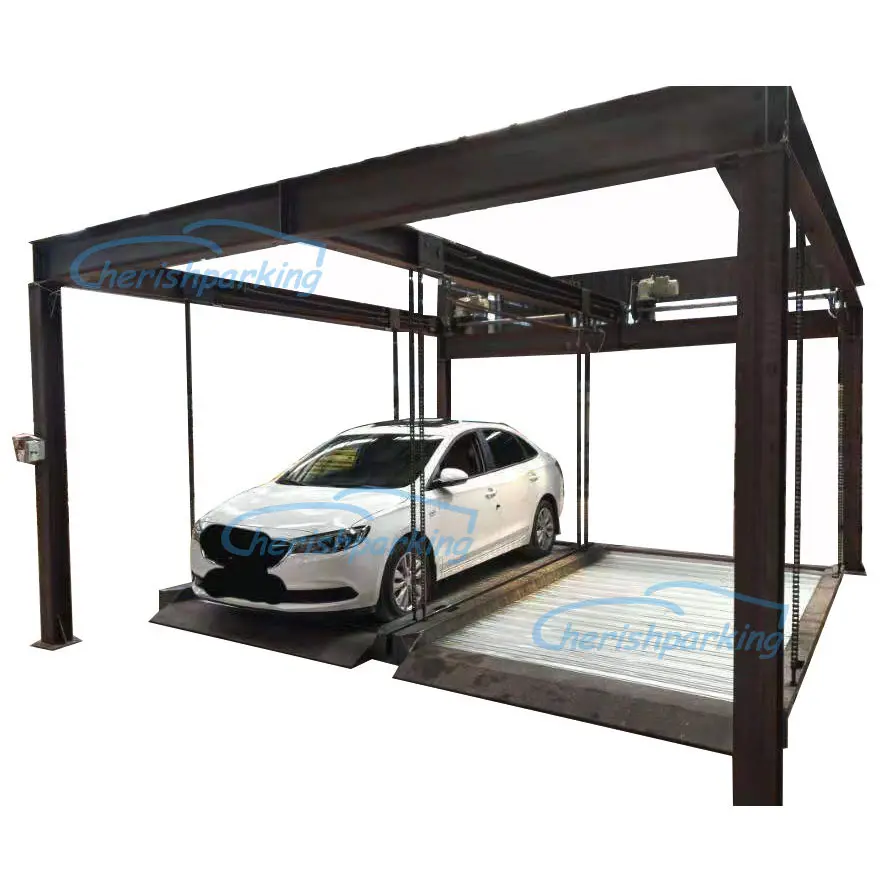

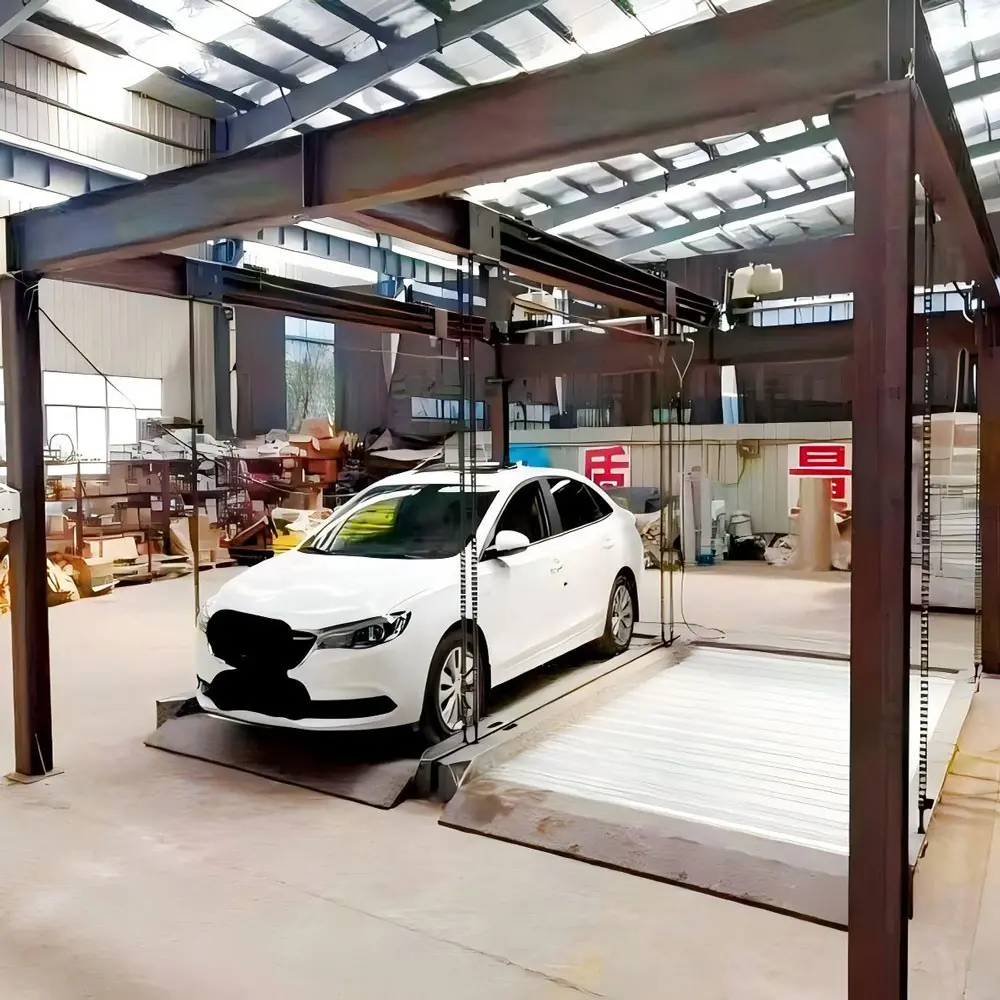

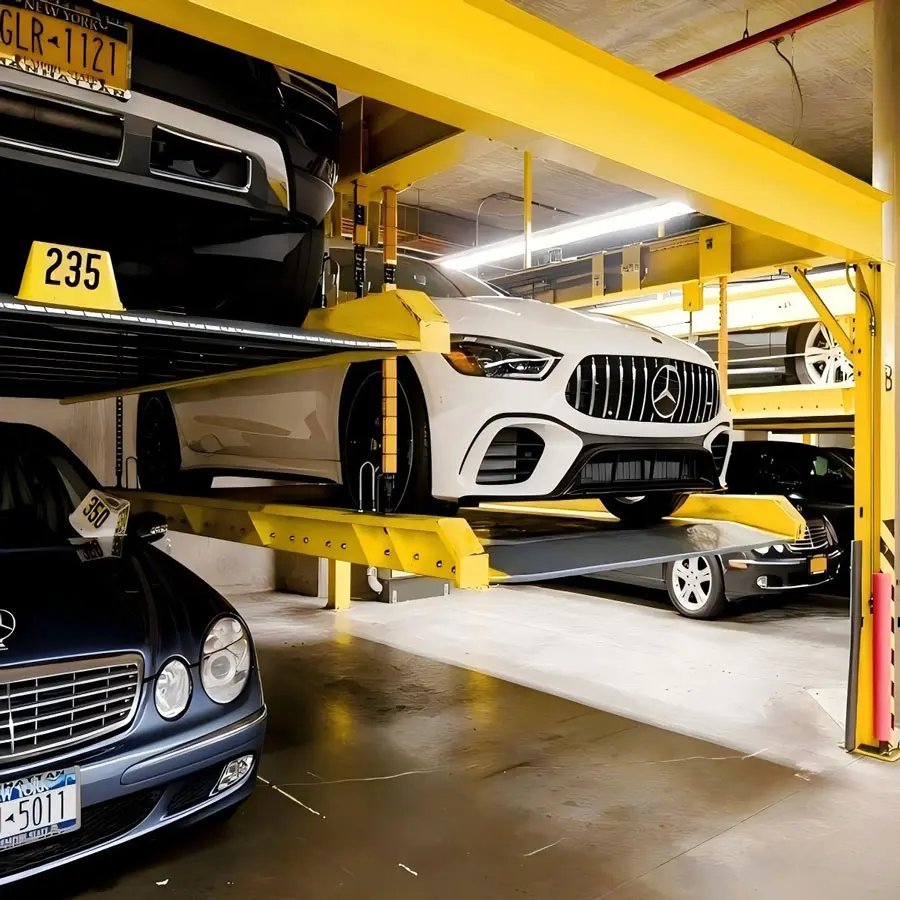

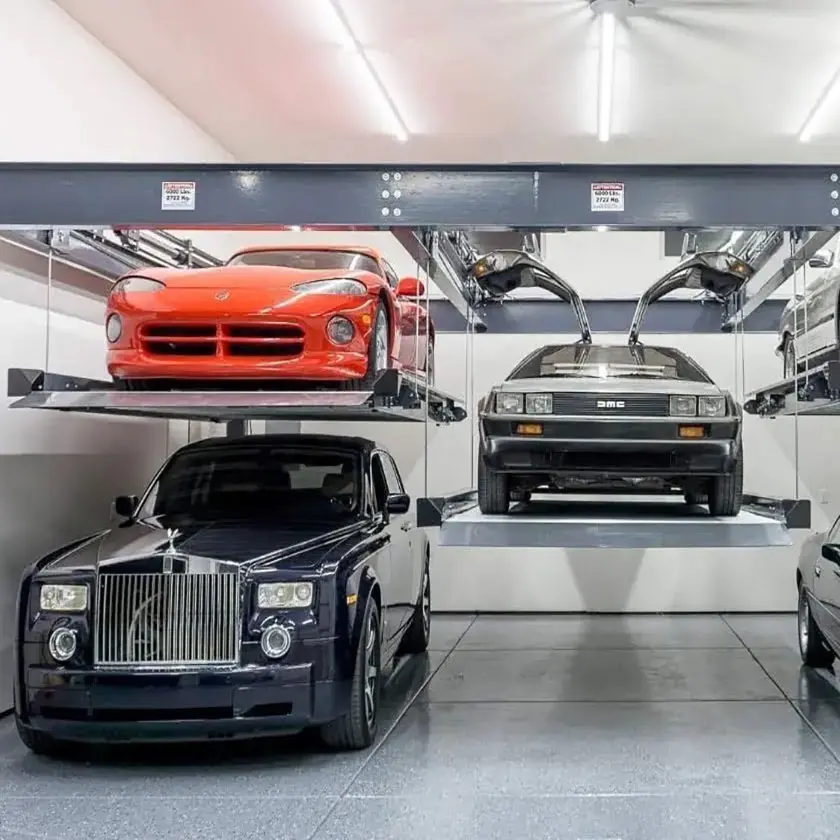

High-Quality Customized 2 Level Lifting Platform Car Parking System Product, Products

The Suspended Parking System is an innovative solution that unlocks the potential of overhead space—an area traditionally underutilized in most parking environments. Ideal for buildings designed with future garage development in mind, this system significantly reduces the pressure on ground-level parking capacity.

Available in a variety of span lengths, the system minimizes the need for vertical support pillars, which often obstruct vehicle flow. This key advantage allows for more flexible and creative layouts, enhancing maneuverability in tight or constrained areas.

By reclaiming previously unusable space and enabling installations above drive aisles, the Suspended Parking System offers a smarter, more efficient approach to modern parking design.

Product Description

Products Feature
The suspended platform is a two-level vehicle lift designed for vertical vehicle parking. The SP100 lifts vehicles through suspended platforms supported by an integrated framework and building structure, providing a column-free space below for additional uses.
The entire assembly is pre-welded and assembled on-site. The platforms can be installed as single-width, double-width, and triple-width modules in various arrangements. The platform is designed to be suspended from a structural framework that can be supported by either the floor or the ceiling and integrated with the building structure.

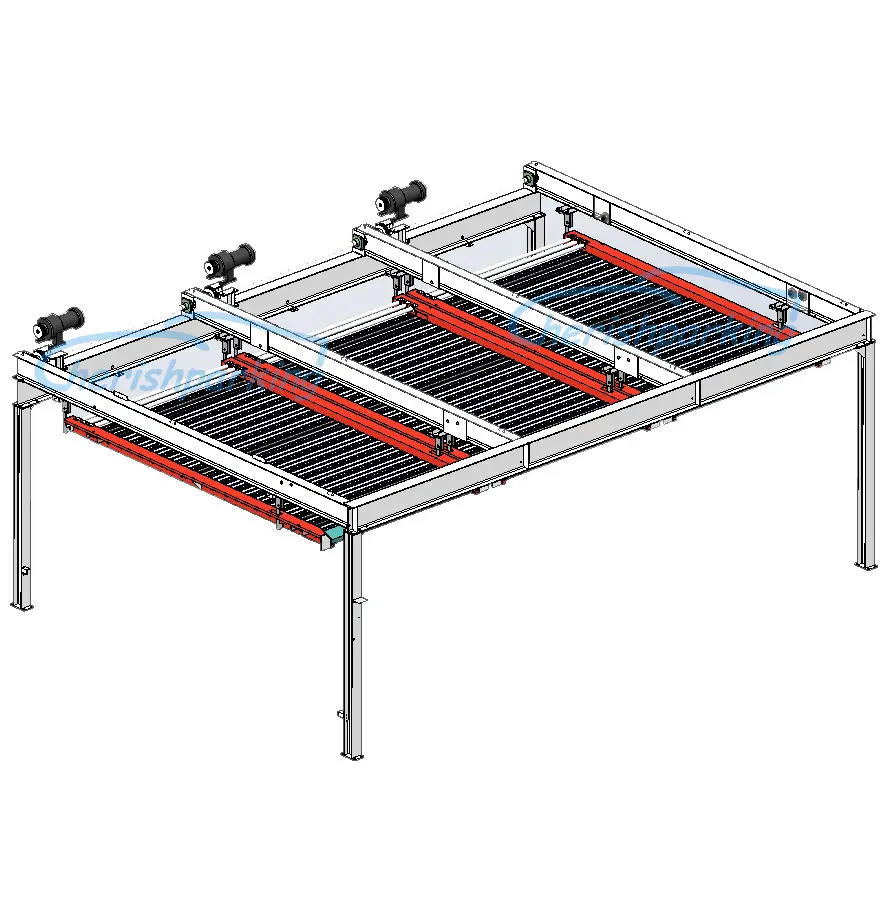

Products Feature 1

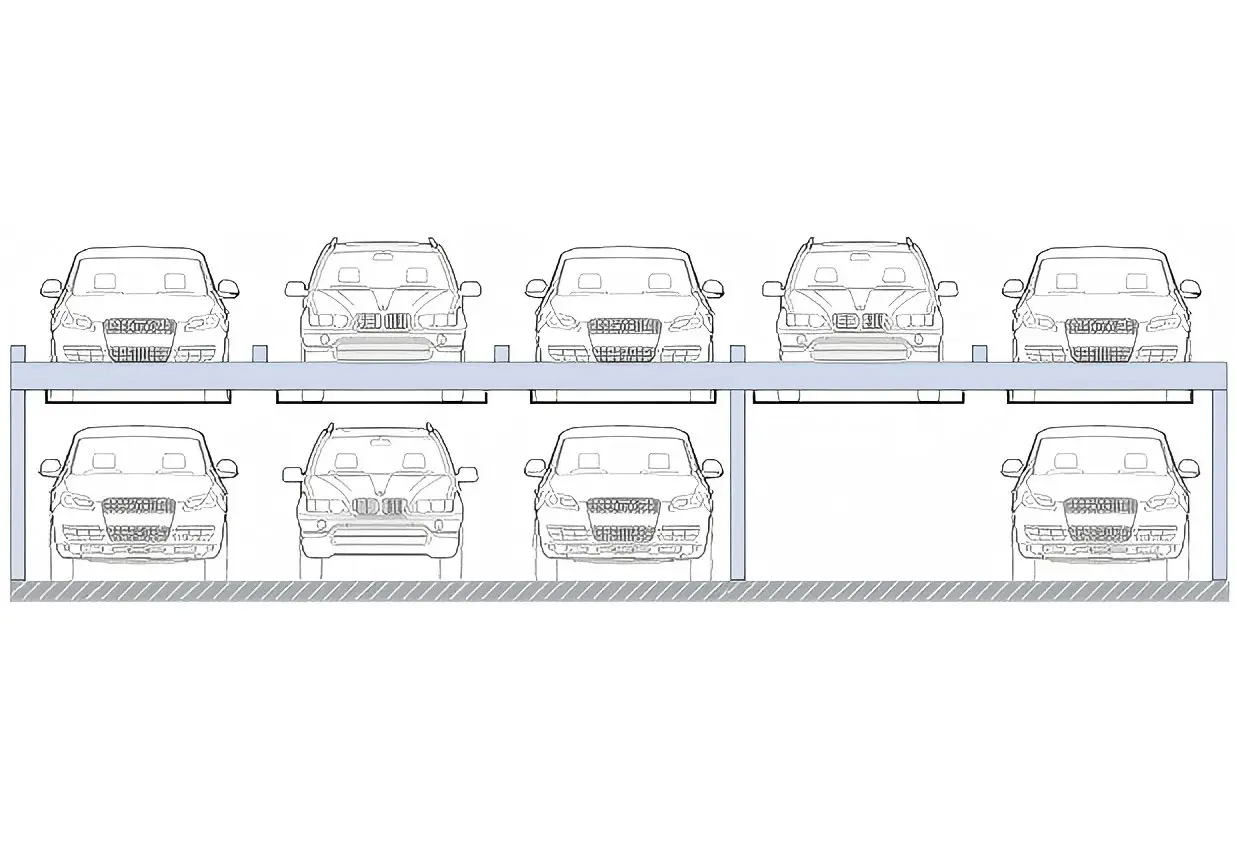

Products Feature 2
Designed for both indoor and outdoor installation. Suitable for single-family and multi-family residential buildings, low-rise and high-rise buildings, commercial buildings, surface lots, and both attended/valet and self-park applications.
Specifications
Product NameSuspended parking system
Max Loading Capacity2500kgs
Dimensions of vehicles5200mm x 1850mm x 1850mm
Drive ModeMotor Driven
Power Supply380V, 50Hz, 3Ph
Lock ReleaseElectric Release
Surface TreatmentPowder coating or Hot galvanized
Drawing & Case

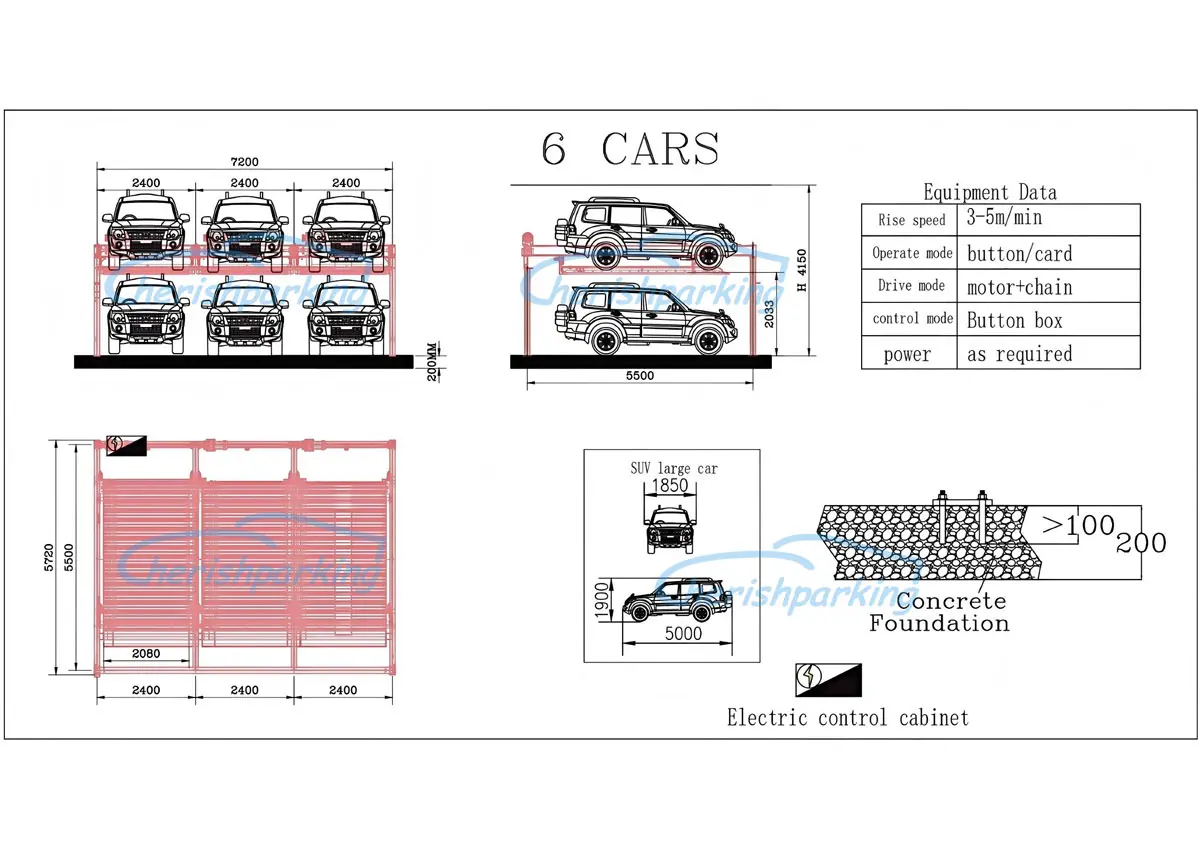

Technical Drawing

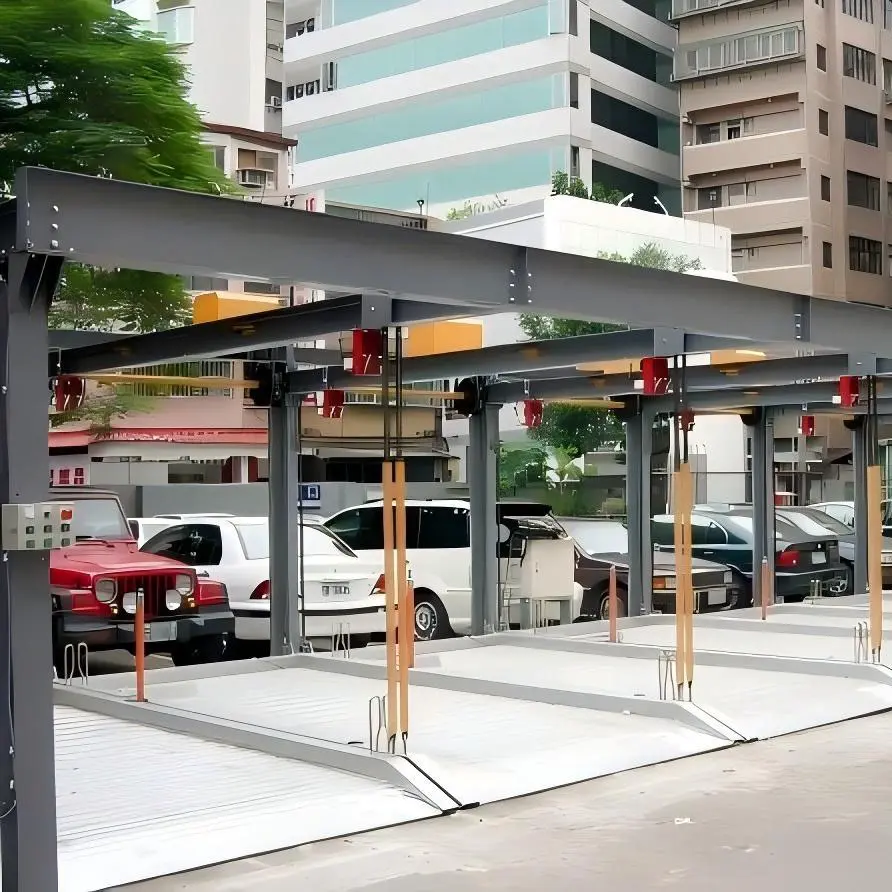

Case Study 1

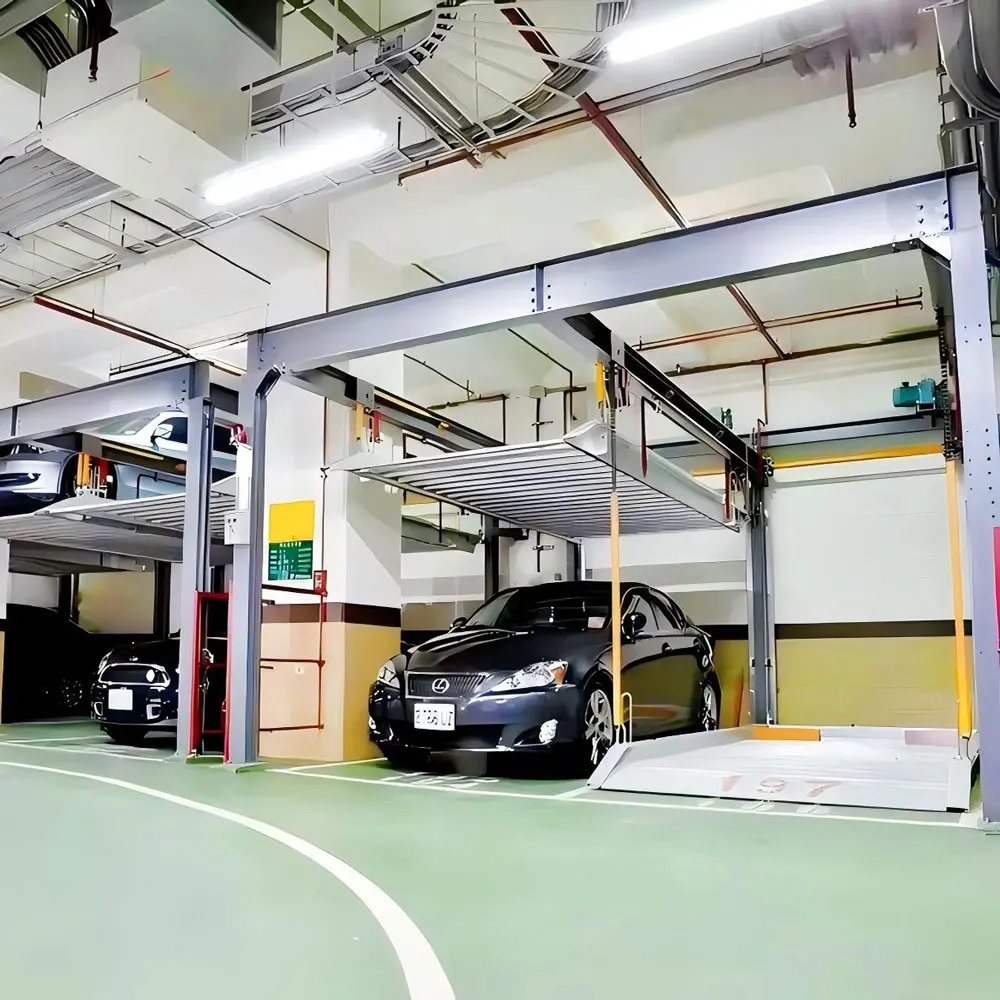

Case Study 2

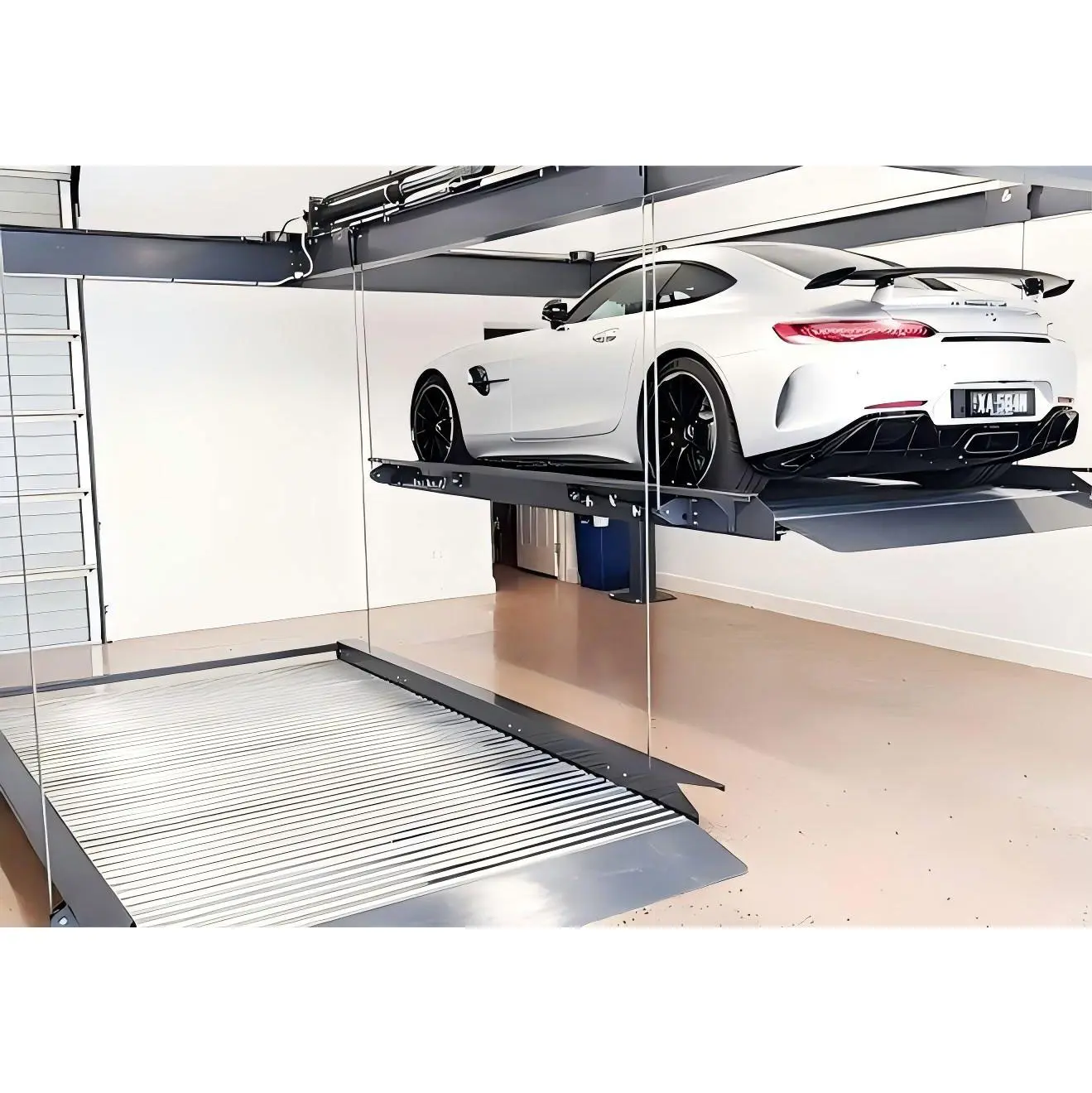

Case Study 3
Frequently Asked Questions
What is the maximum weight the suspended parking system can carry?
The system has a maximum loading capacity of 2500kgs per platform.
Can this system be installed outdoors?
Yes, the SP100 is designed for both indoor and outdoor installations, with surface treatment options like powder coating or hot galvanizing to withstand different environments.
How is the column-free space below the platform achieved?
The platform is suspended from an integrated framework that can be supported by the ceiling or floor structure, eliminating the need for ground-level columns.
What types of buildings are suitable for this parking system?
It is suitable for single-family homes, multi-family residential buildings, commercial buildings, and both low-rise and high-rise structures.
What are the power requirements for the motor?
The system requires a power supply of 380V, 50Hz, 3Ph for operation.
Is the platform customizable in size?
The platforms can be installed as single-width, double-width, or triple-width modules to accommodate different space requirements.
