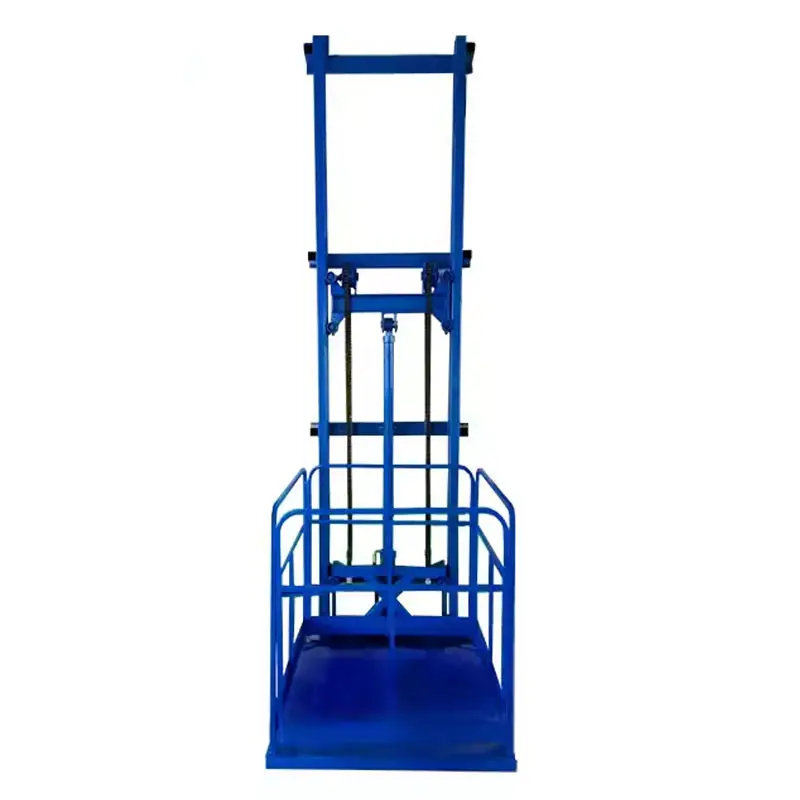

High-Quality Customized 300kg-800kg Small Cargo Elevator Hydraulic Cargo Goods Lift Factories, Products

This freight elevator is engineered to safely move goods, pallets, and oversized materials between floors. Unlike conventional elevators, it does not require a deep pit, making it well suited for locations with structural constraints such as warehouses, factories, mezzanines, stairwells, and confined work areas. Designed for heavy-duty vertical transportation, it efficiently handles large loads across multiple levels and is widely used in production lines, storage areas, and logistics centers. Featuring a strong structural frame, reliable hydraulic drive, and customizable platform dimensions, this lift offers a durable, space-saving, and practical solution for modern industrial material handling.

Product Description

Products Features
Products Feature
Cargo Lift Details
📦
High Load Capacity Designed to handle heavy-duty cargo, the lift provides strong load-bearing performance, making it suitable for transporting goods to higher levels with stability and ease.
⚙️
Simple and Reliable Operation The system features user-friendly controls and a dependable hydraulic mechanism, ensuring smooth, safe, and efficient lifting operations.
🛠️
Customizable Design The lift can be fully tailored to your specific requirements, including platform size, lifting height, load capacity, and installation environment—ensuring optimal performance for your unique application.
Specifications
Model No. CSL-3
Drive Mode Hydraulic
Lifting Height 2m/3m/5m/Customized
Loading Capacity 800kg/1000kg/2000kg/customized
Platform size 1000*1000mm/customized
Voltage 220v/380v, 1ph/3ph
Surface treatment Spraying
Technical Drawing
Freight Elevator Drawing
Frequently Asked Questions
1. What is the maximum load capacity for the CSL-3 model?
The standard loading capacity ranges from 800kg to 2000kg, but it can be fully customized to meet your specific heavy-duty requirements.
2. Can the platform size be adjusted for small spaces?
Yes, the platform size is customizable. While the standard size is 1000*1000mm, we can tailor the dimensions to fit your specific installation environment.
3. What power supply is required for the hydraulic cargo lift?
The lift supports multiple voltage options, including 220v or 380v, and is available in both 1-phase and 3-phase configurations.
4. How high can the cargo lift transport goods?
Standard lifting heights are available at 2m, 3m, and 5m. However, the height can be customized based on your building's specifications.
5. Is the operation system easy to use for warehouse staff?
Absolutely. The system features simple, user-friendly controls and a reliable hydraulic mechanism designed for smooth and safe daily operations.
6. What kind of surface treatment is used to prevent rust?
The lift undergoes a professional spraying surface treatment, providing a durable finish that protects the structure and ensures a long service life.
