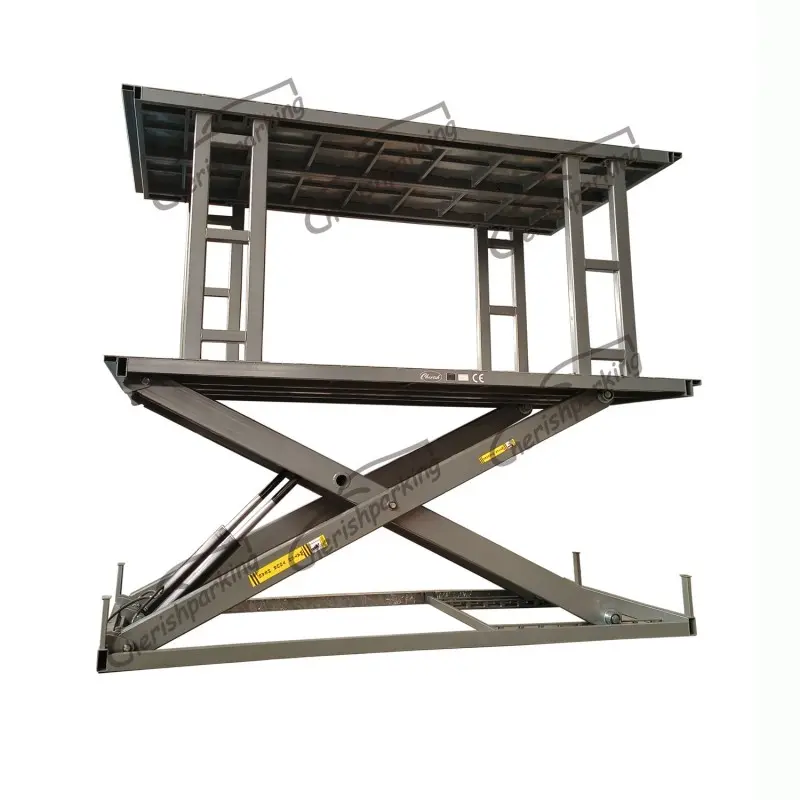

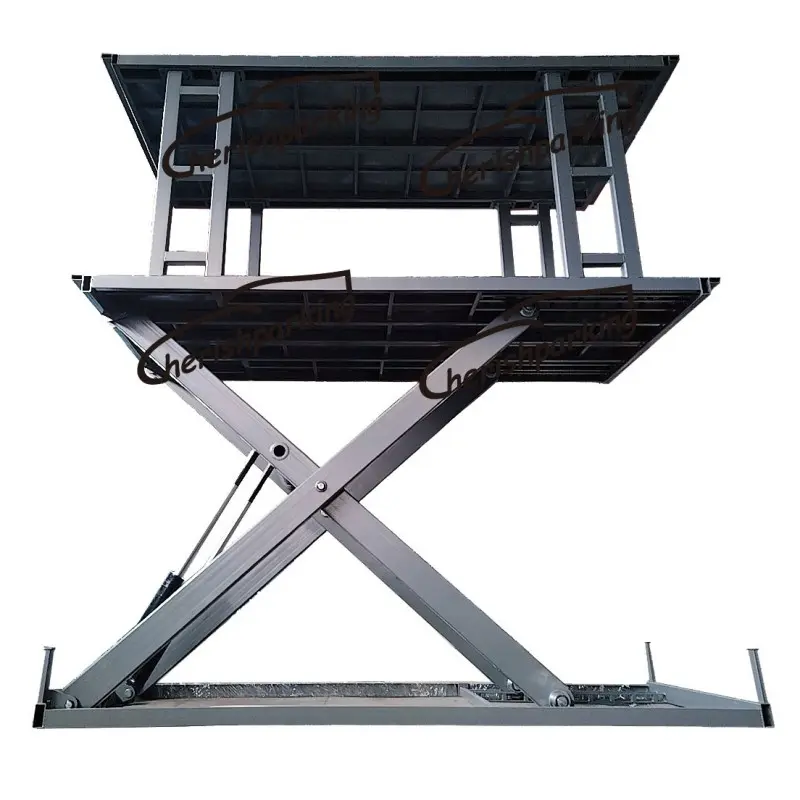

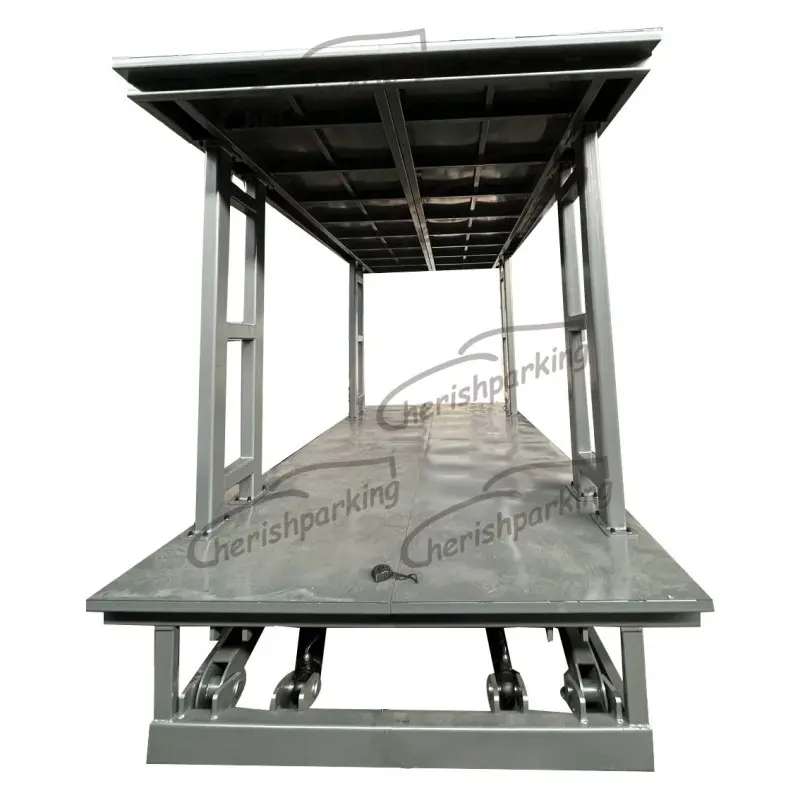

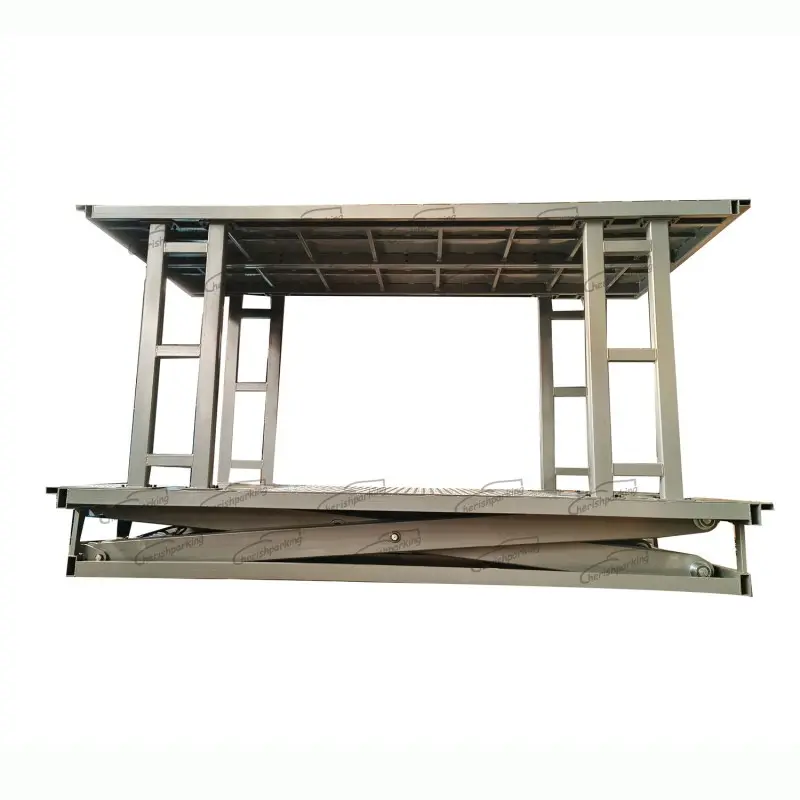

High-Quality Hydraulic Double Deck Underground Scissor Car Elevator Invisible Lift Platform Factories, Factory

Double-Deck Scissor Car Lift, Harmoniously integrated with the surrounding environment, customizable, and requiring a pit installation The rapid increase in the number of cars has led to a shortage of parking spaces, resulting in traffic congestion and a decline in the quality of the living environment. The S-VRC-2 system is one of the perfect solutions to this problem. It has a dual - function design. Firstly, it can serve as a parking lift, enabling the stacking of one vehicle on top of another to maximize parking space utilization. Secondly, it can function as an elevator, efficiently transporting vehicles between the ground - level and basement parking floors. In both cases, when it is folded down, the top platform becomes completely concealed. It can then be covered with appropriate pavement materials, creating a neat and elegant appearance that seamlessly blends into the surroundings.

Product Description

Products Feature

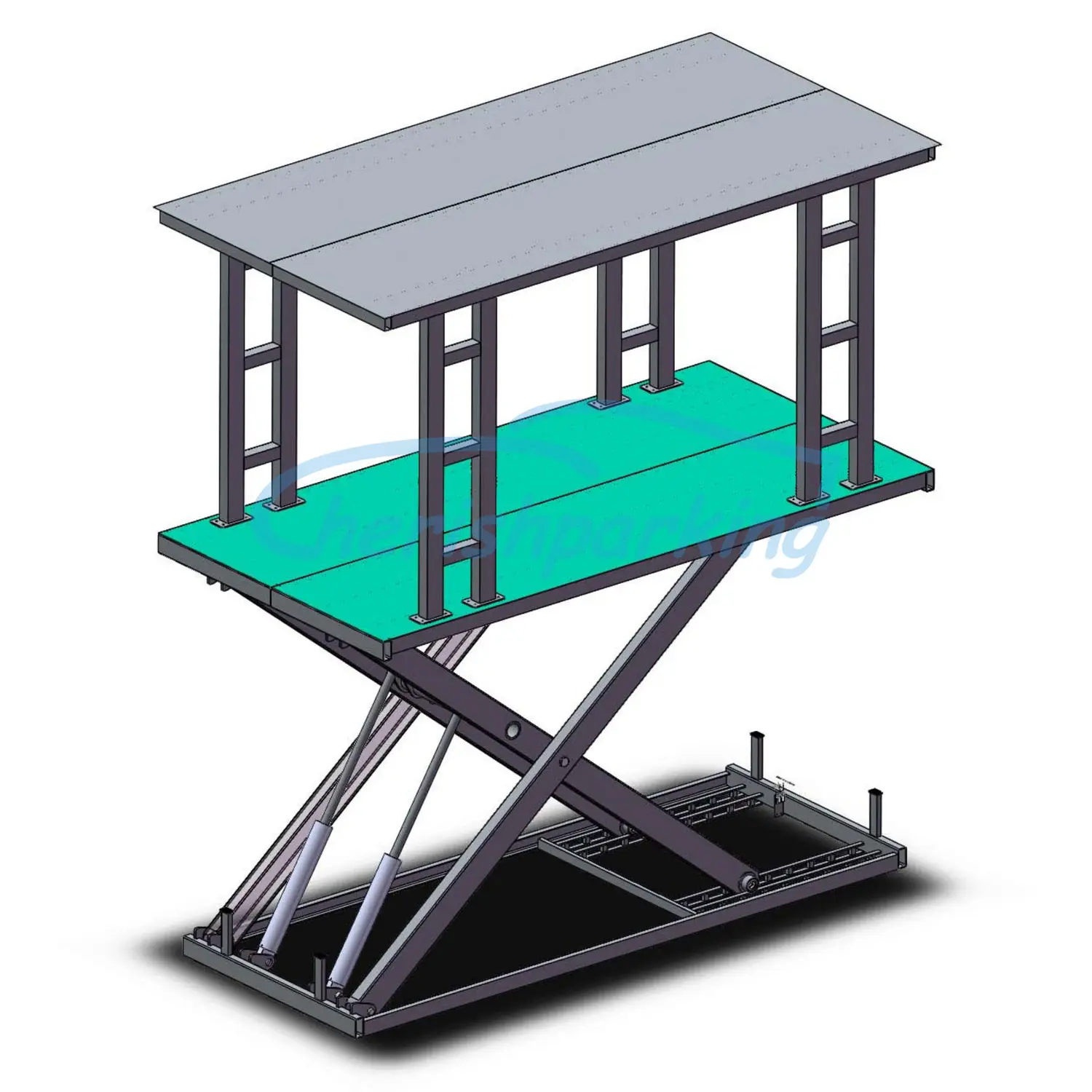

Products Feature Image 1
  • Dual functions, capable of independently achieving parking or vehicle transportation.
  • The top platform can be decorated to blend in with the surrounding environment and become invisible.
  • Optional to lift two cars simultaneously.
  • Overall lifting capacity: up to 5000 kg.
  • Platform size: up to 6000 mm in length and 5000 mm in width.
  • A foundation pit is required in all cases.
  • High-safety and easy-to-operate.
  • Semi-pre-assembled structure, easy to install.
  • Fine powder-coating surface treatment.
  • Remote control is optional.
  • Up to three platforms can be configured.
  • Suitable for garages in private houses or apartment buildings.
  • Applicable to prefabricated garages.
  • Utilized for vehicle transportation between floors.
  • Helps to provide more parking spaces in office and residential buildings.
  • Can be optionally installed and used outdoors.

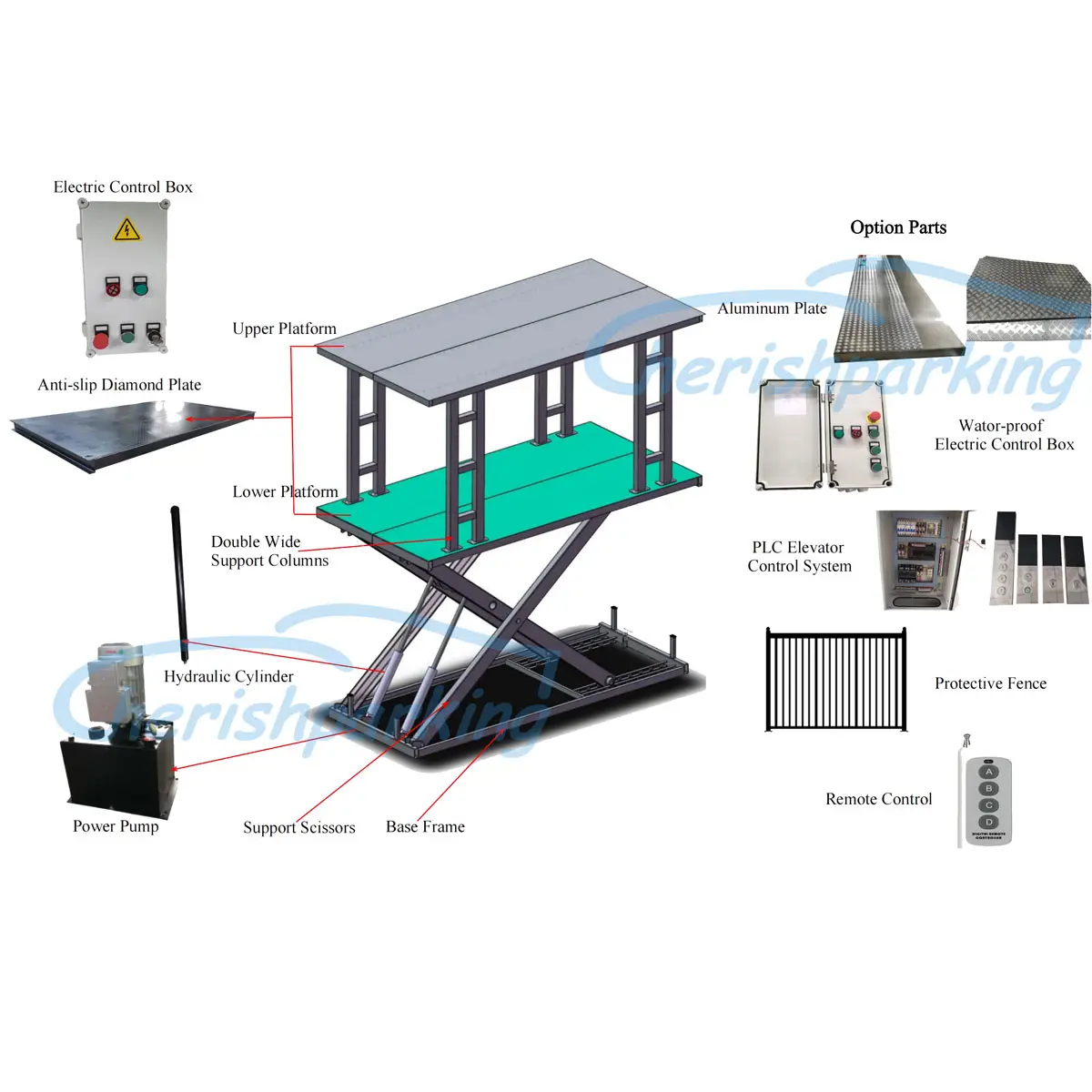

Products Feature Image 2
Specifications
Model No.CSL-3
Max Lifting Capacity5000kgs
Usable Platform widthCustomized
Overall HeightCustomized
Overall LengthCustomized
Overall WidthCustomized
Power Supply/Motor Capacity380V, 50Hz, 3Ph, 5.5Kw
Lock ReleaseElectric Release
Drive ModeHydraulic Drive
Drawing & Case

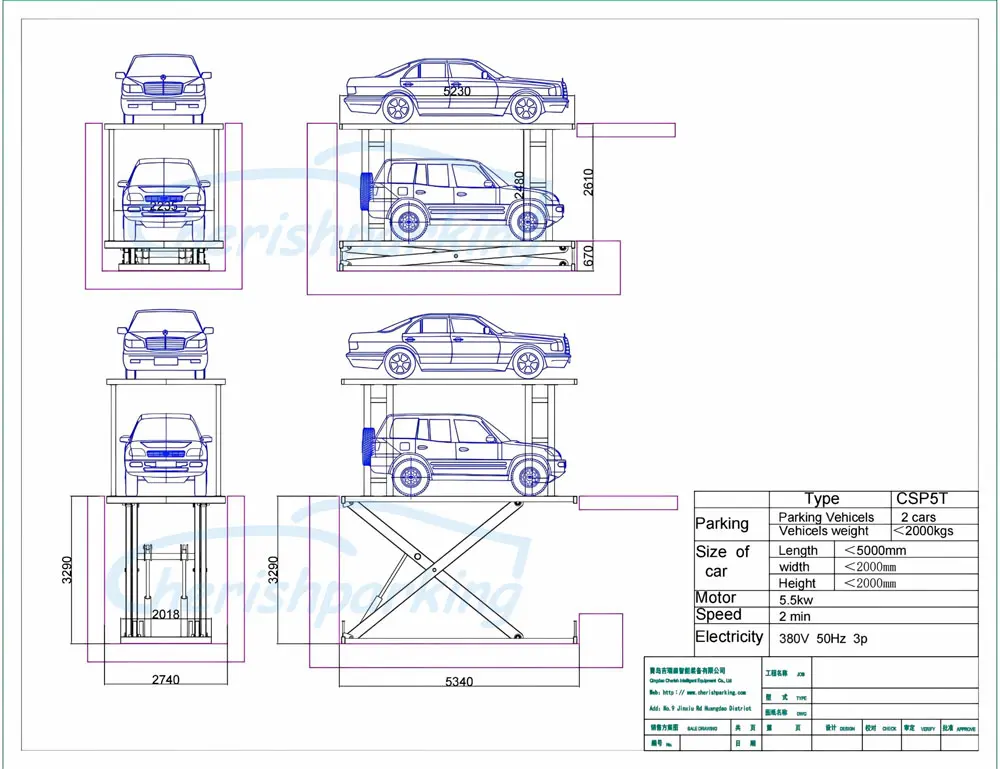

Drawing

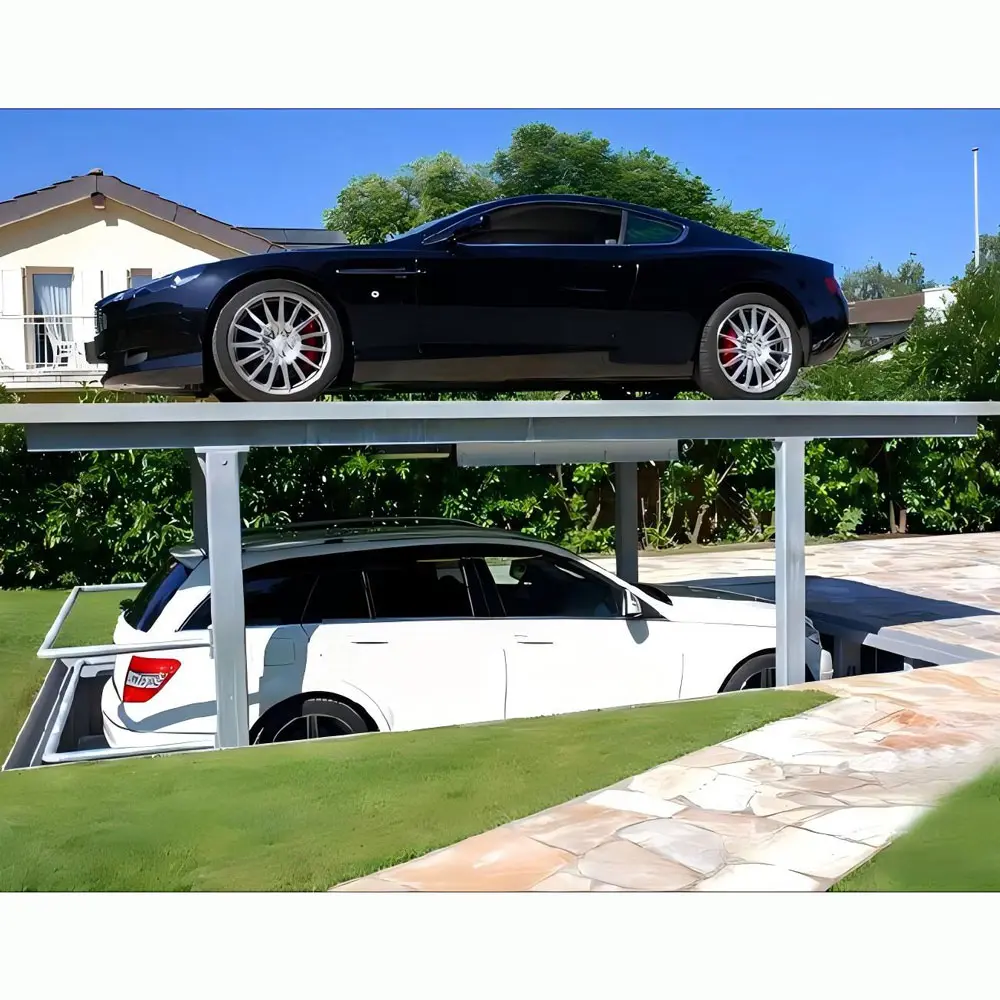

Case 1

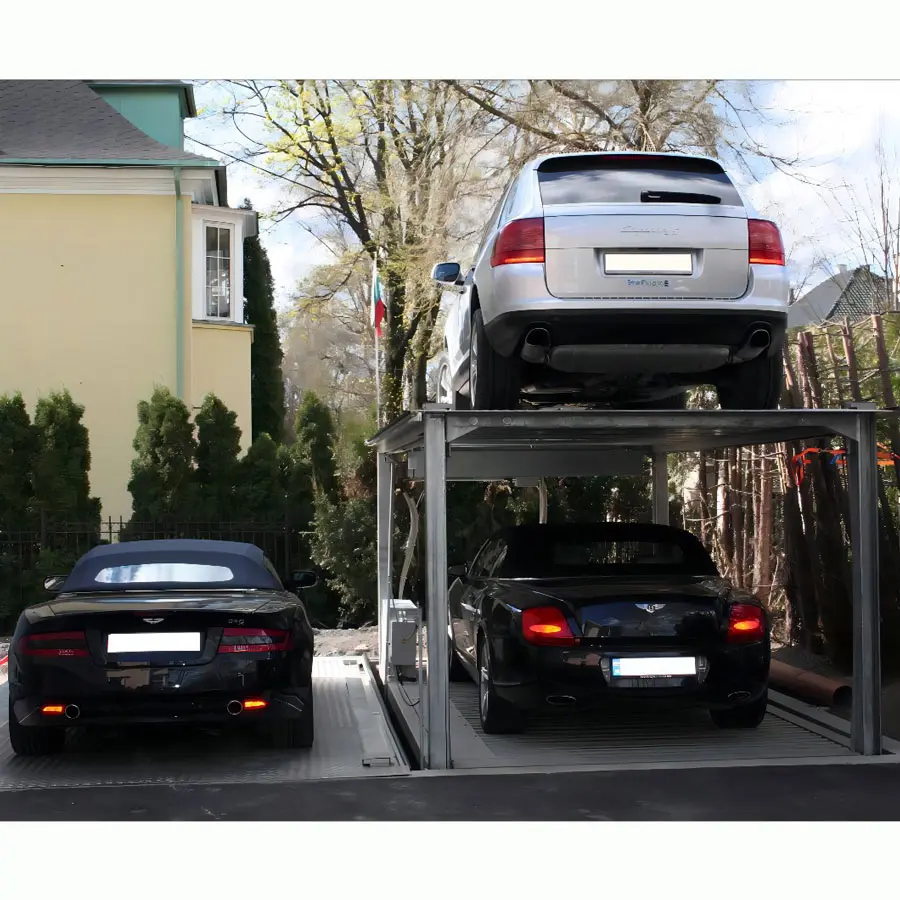

Case 2

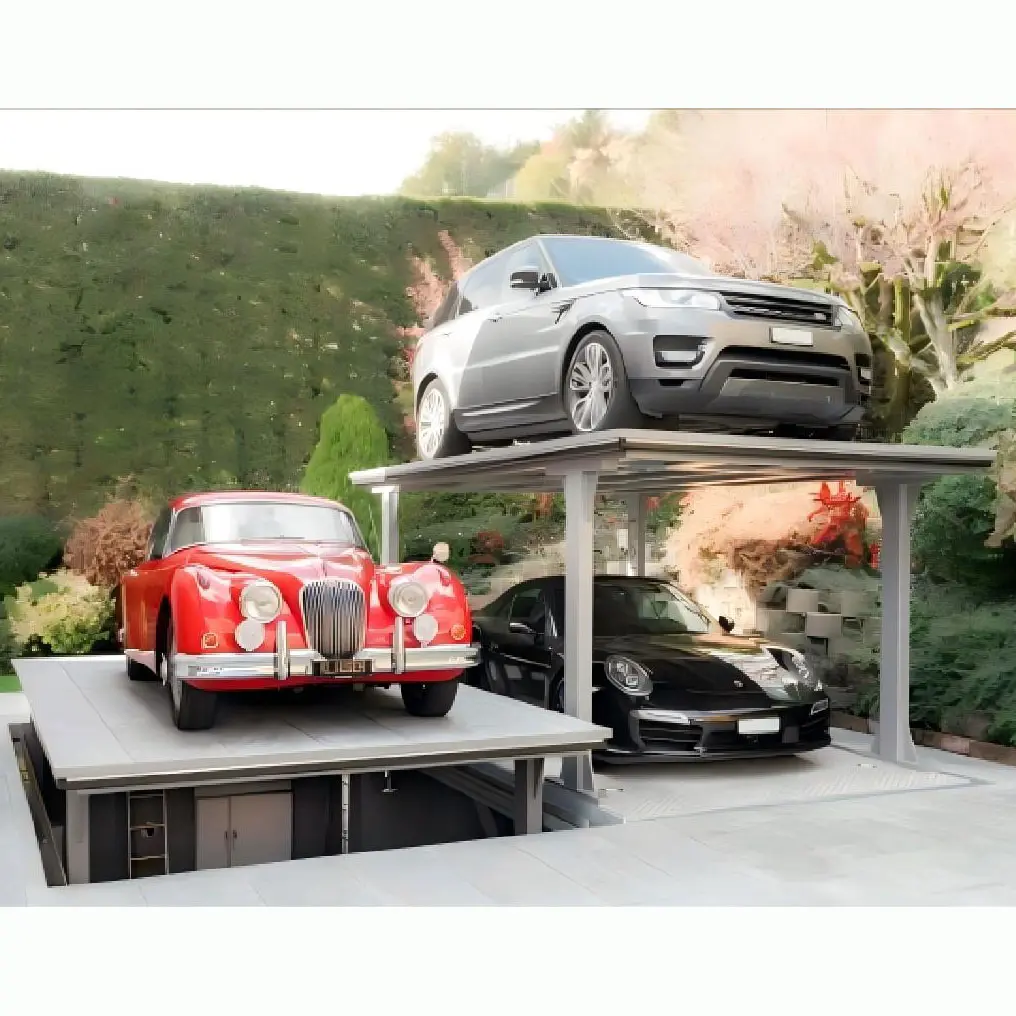

Case 3
Frequently Asked Questions
Q: What is the maximum lifting capacity of the CSL-3 model?
A: The system has a robust overall lifting capacity of up to 5000 kg, making it suitable for a wide range of vehicles including SUVs and luxury sedans.
Q: Does this car lift require a foundation pit?
A: Yes, a foundation pit is required in all installation cases to ensure the platform can lower to ground level or provide the necessary structural support.
Q: Can the platform dimensions be customized?
A: Absolutely. The platform width, length, and overall height are fully customizable to meet specific site requirements and vehicle dimensions.
Q: Is the system suitable for outdoor installation?
A: Yes, the lift features a fine powder-coating surface treatment and can be optionally configured for outdoor use and exposure to the elements.
Q: What are the primary drive and safety mechanisms?
A: The system utilizes a reliable hydraulic drive mode combined with an electric lock release system for high safety and ease of operation.
Q: Can the top platform be hidden?
A: Yes, the top platform can be decorated with materials that match the surrounding environment, allowing it to become "invisible" when fully lowered.
