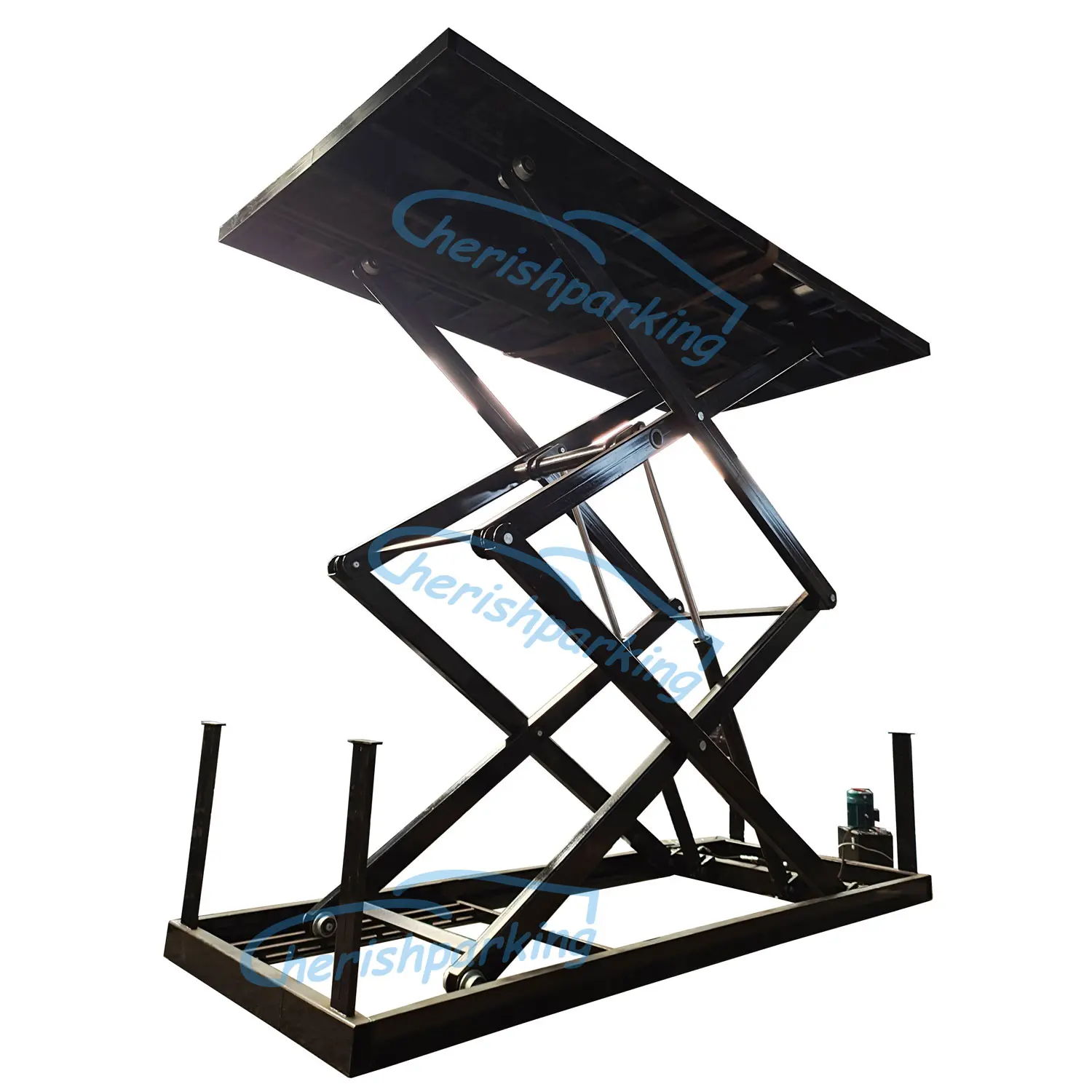

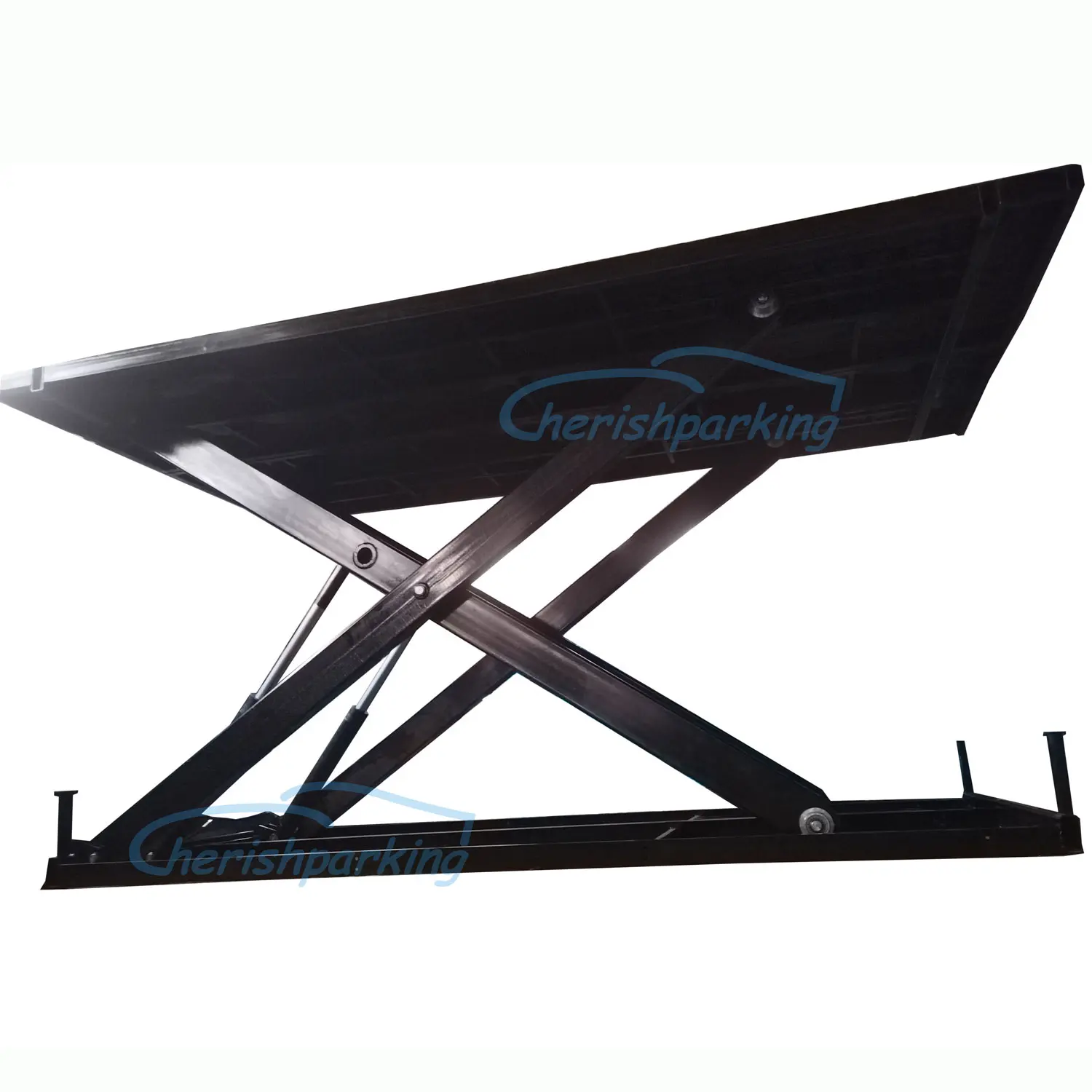

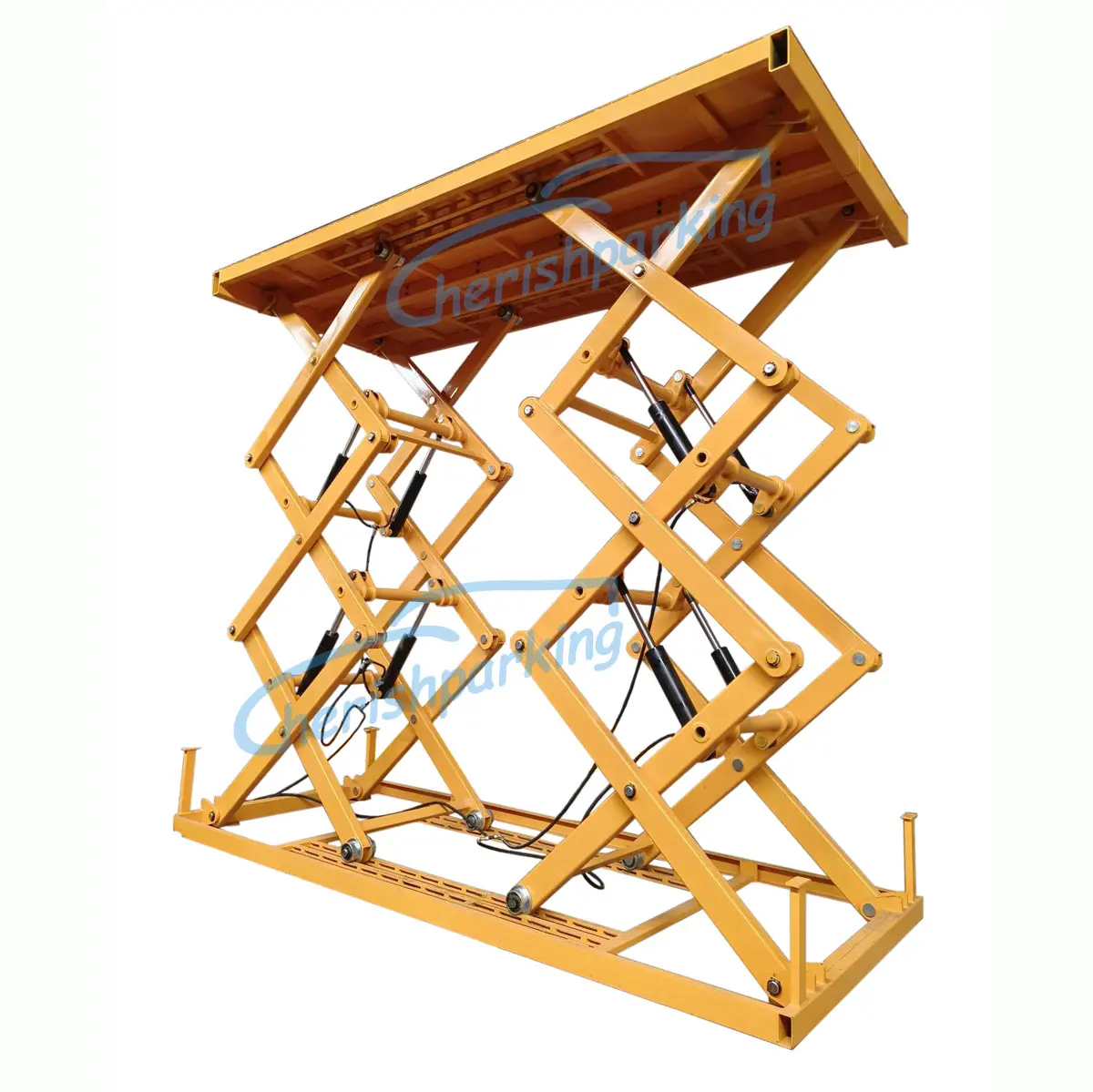

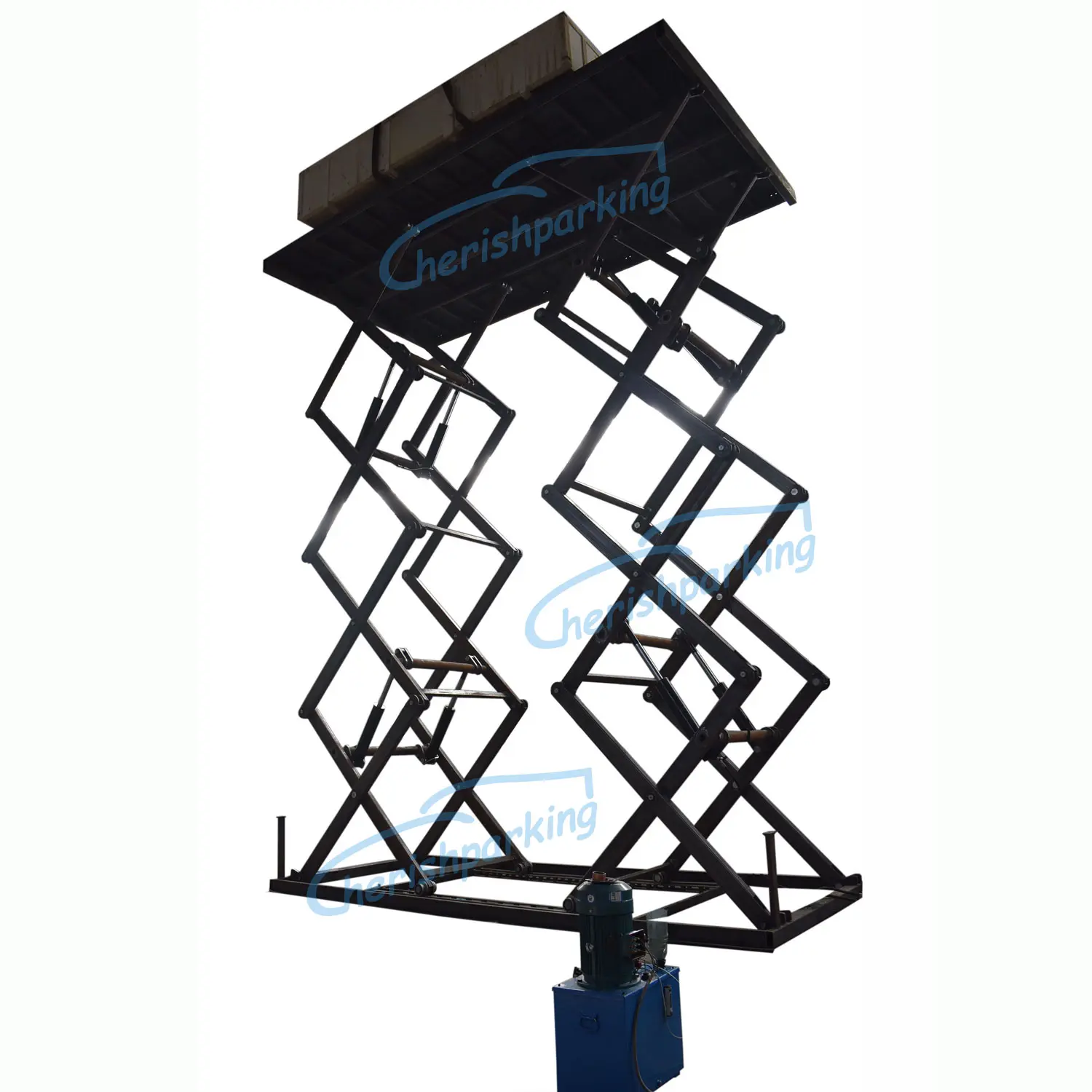

High-Quality Customized Hydraulic Scissor Hoist for Car or Cargo Factory, Products

Scissor - type Car Elevator, customizable and installed in a pit. Obviously, the concrete ramps with large footprints and high costs are gradually failing to meet modern demands. The scissor - type car elevator is one of the perfect alternatives, boasting features such as a small footprint, high safety, low maintenance requirements, and flexible arrangements. In parking lots and car dealerships where it's impossible to set up an entrance ramp, or when ramps pose risks during snowy or inclement weather, the CSL (Scissor - type Car Elevator) can be a lifesaver. It can solve various cross - floor transportation problems with a load capacity of up to 5 tons. Moreover, it also proves extremely useful in warehouse complexes or production facilities for goods loading and unloading.

Product Description

Products Feature

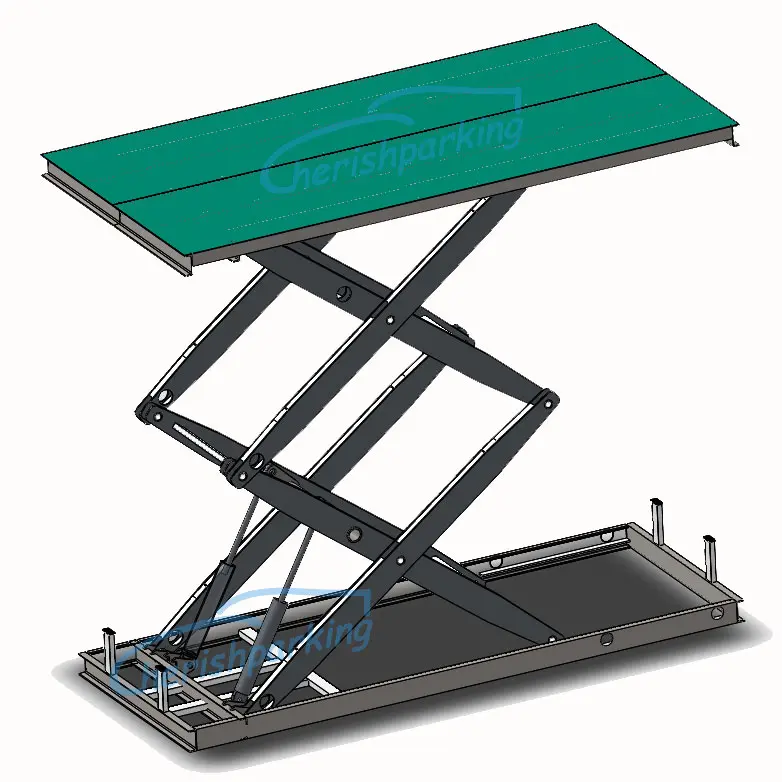

Product Feature 1
Single-platform design, exclusively used for lifting vehicles or goods.
Hydraulically powered with dual cylinders, ensuring stable and reliable operation.
Platform load-bearing capacity: up to 5000 kg, capable of handling heavy-duty loads.
Platform dimensions: reaching up to 6000 mm in length and 5000 mm in width, providing a spacious area for loading.
Multiple stop levels can be configured, with a maximum travel distance of 10 m.
Call-on-demand function available on all stop floors, offering great convenience for users.
Completely hidden from view once it descends to the bottom, maintaining a clean appearance.
A foundation pit is essential under all circumstances for proper equipment operation.
High-level safety features combined with simple operation, making it user-friendly.
Pre-assembled structure for easy installation, reducing time and effort.
Finely finished powder coating, providing excellent protection against corrosion.
Optional remote control is available for added flexibility.
Ideal for vehicle transportation between floors (e.g., ground floor to upper floors or basement).
Well-suited for car dealerships and car rental companies.
Can be optionally deployed outdoors to adapt to different business environments.

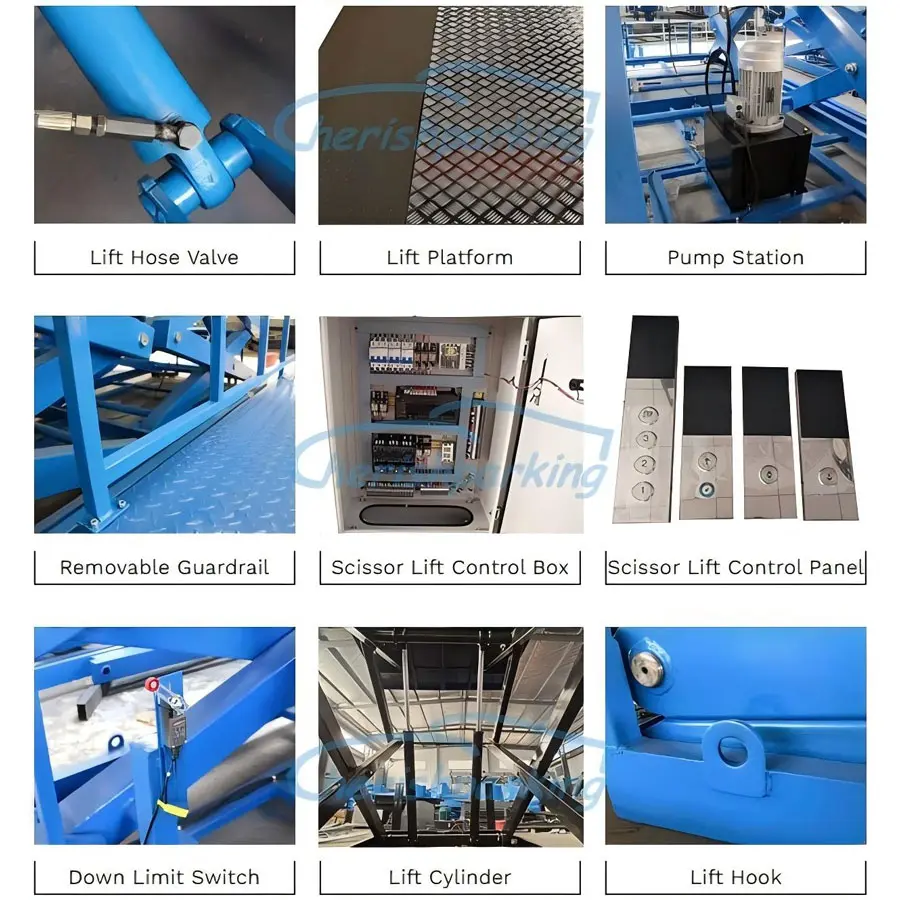

Product Feature 2

Specifications

Model No.CSL-3
Max Lifting Capacity5000kgs
Max Lifting Height10 meters
Usable Platform widthCustomized
Overall HeightCustomized
Overall LengthCustomized
Overall WidthCustomized
Power Supply/Motor Capacity380V, 50Hz, 3Ph, 5.5Kw
Lock ReleaseElectric Release
Drive ModeHydraulic Drive

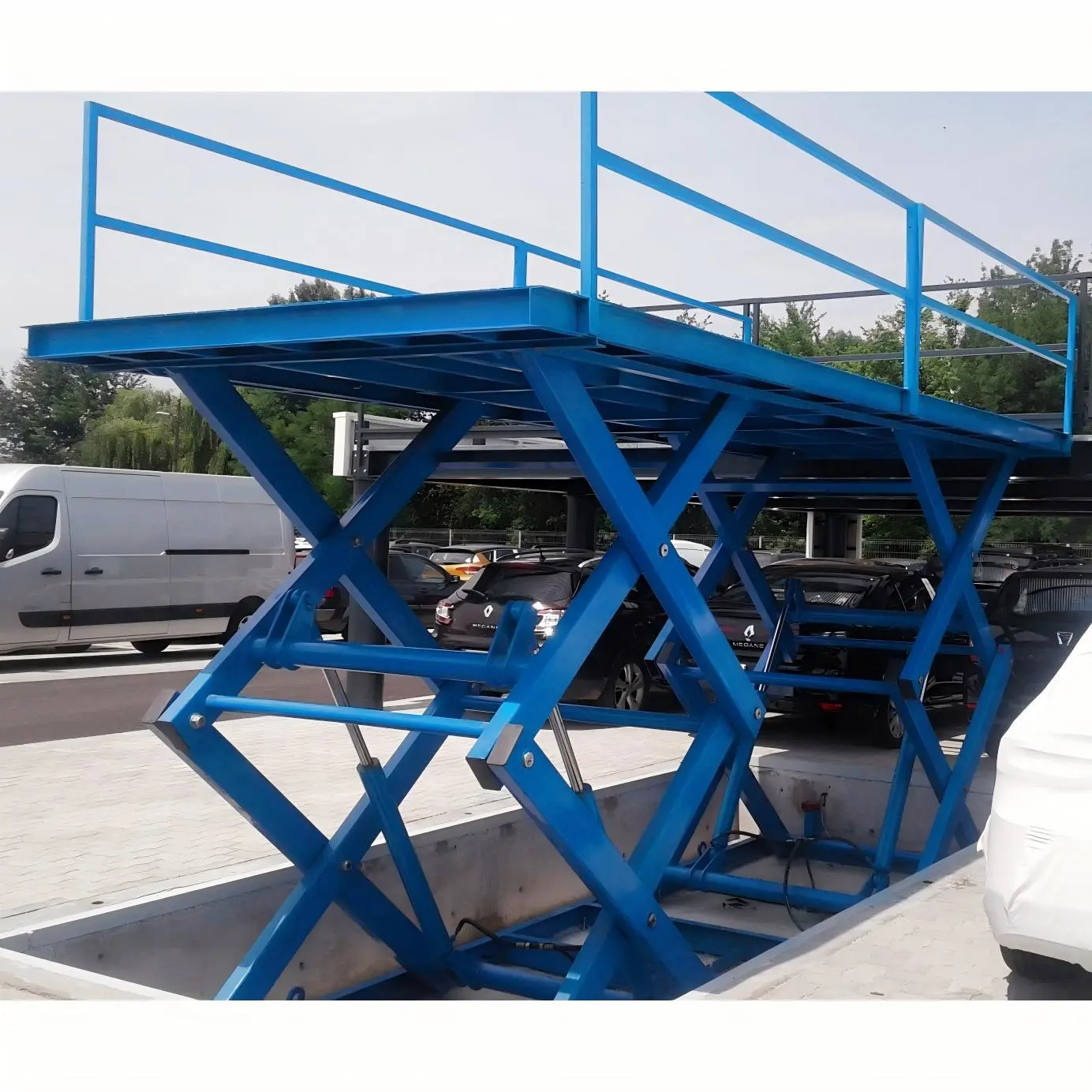

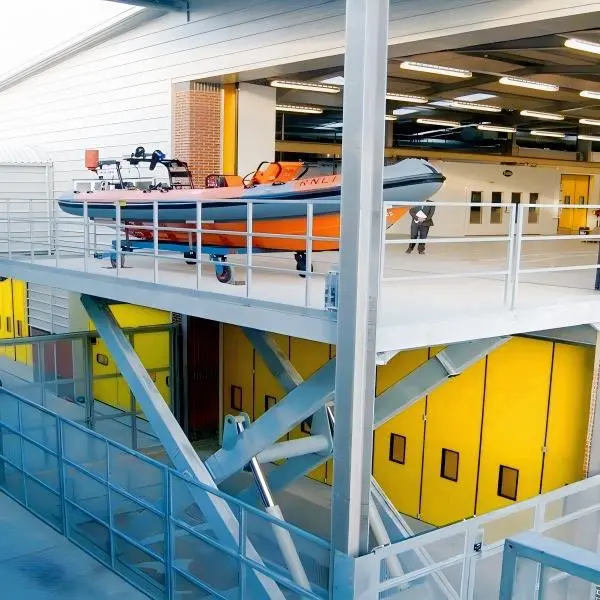

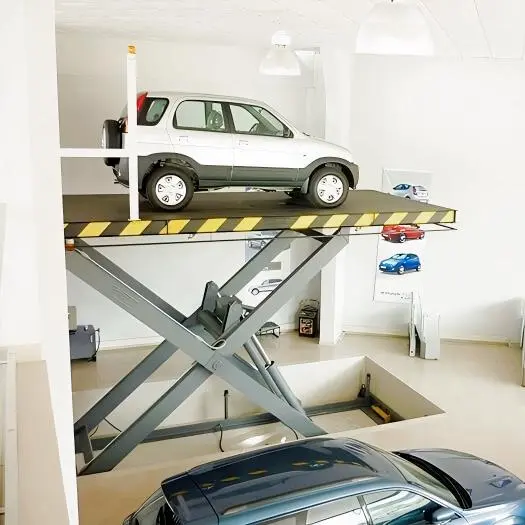

Drawing & Case

Technical Drawing

Frequently Asked Questions

What is the maximum weight the CSL-3 can lift?
The system features a heavy-duty load-bearing capacity of up to 5000 kg, making it suitable for most passenger vehicles and commercial goods.
Can the platform size be customized to fit my space?
Yes, the platform dimensions are highly customizable, with lengths and widths reaching up to 6000 mm and 5000 mm respectively.
How many floors can this vehicle lift service?
The lift supports multiple stop levels with a maximum travel distance of up to 10 meters, ideal for connecting ground floors to basements or upper stories.
Is it possible to install this lift outdoors?
Yes, the equipment features a finely finished powder coating for corrosion resistance and can be optionally deployed in outdoor environments.
Does the installation require any special construction?
A foundation pit is essential for all installations to ensure the platform can descend completely flush with the floor for a seamless appearance.
What kind of power supply is needed?
The standard configuration requires a 380V, 50Hz, 3-Phase power supply with a 5.5Kw motor capacity.
