CE Certification Customized Underground Scissor Lift for Trash Cans Manufacturers, Products

The underground trash cans system features a steel pit, hydraulic lifting unit, and platform. Using the hydraulic scissor lift principle, the platform raises the container when waste needs to be collected, making disposal easy and efficient. When lowered, the bin remains concealed underground, effectively reducing odors, preventing insects, and keeping the environment clean. Widely used in residential neighborhoods, sidewalks, parks, plazas, and densely populated urban areas, this system provides a safe, hygienic, and space-saving waste management solution, making it particularly ideal for tourist cities and modern urban developments.

Product Description

Products Features
Hide trash cans/garbage tin underground
Customized according to your pit and garbage tin
Capacity: 2 x 660L or 4 x 240L
Lifting height connected with the garbage tins' height
Driven by hydraulic system
Eco-friendly for users
High safety and easy to operate
Fine powder-coating surface treatment
Remote control is optional
Suitable for private houses or apartment buildings
Keep environment clean and save ground space
Can be installed and used outdoors
Underground Trash Can Lift Feature
Garbage Lift Operation
Specifications
Model No.CTS
Max Lifting Capacity240L / 660L
Platform WidthCustomized
Overall HeightCustomized
Overall LengthCustomized
Overall WidthCustomized
Power Supply220V/380V, 50Hz, 3Ph
Lock ReleaseElectric Release
Drive ModeHydraulic Drive
Drawing & Case

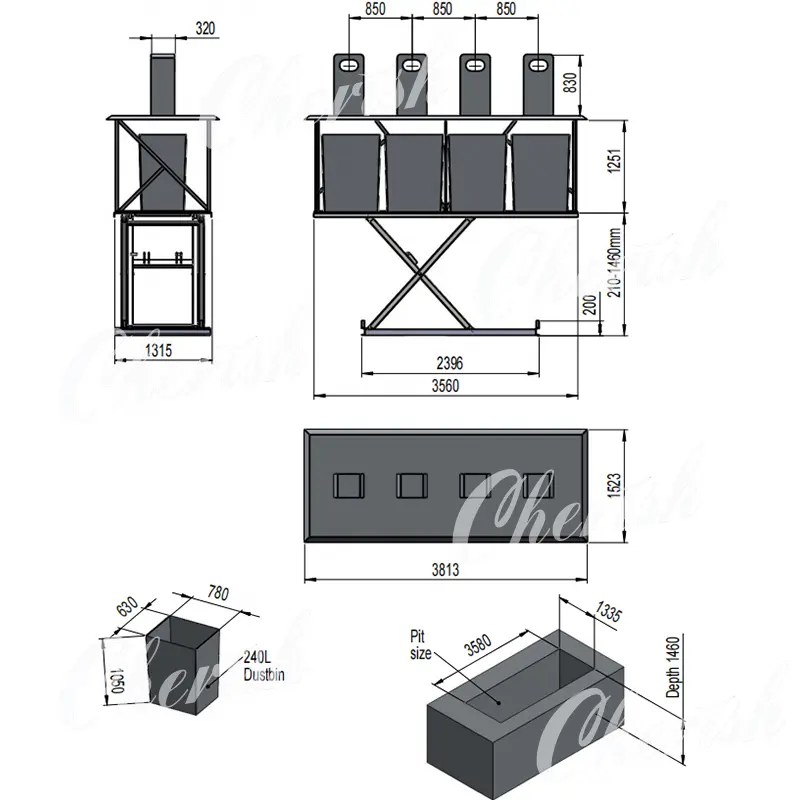

Technical Drawing

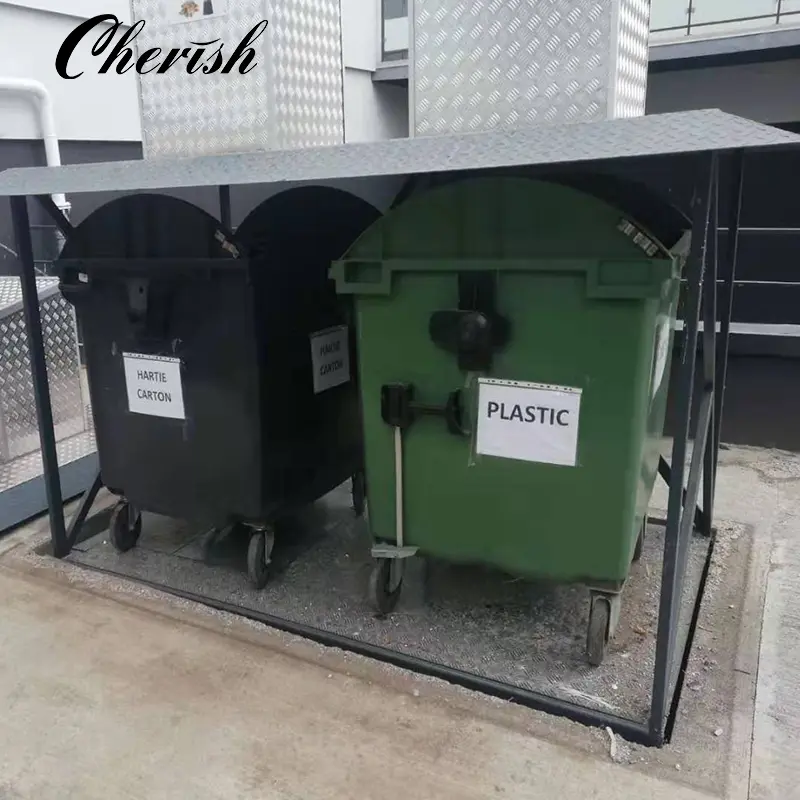

Case Study 1

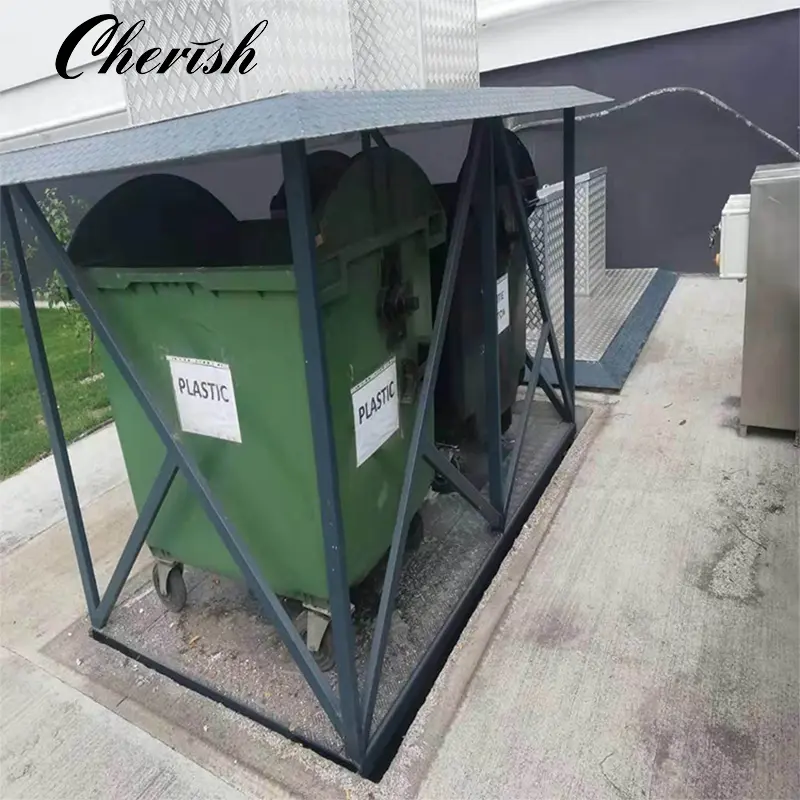

Case Study 2

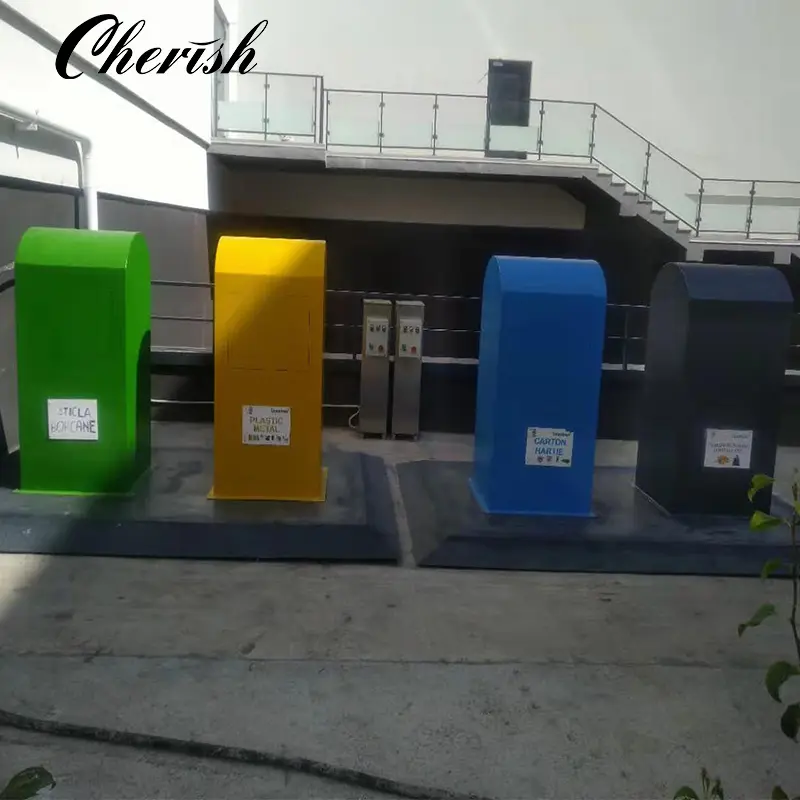

Case Study 3
Frequently Asked Questions
Q1: How does the underground trash can lift operate?
A: The system is driven by a powerful hydraulic mechanism that lifts and lowers the garbage bins from an underground pit to ground level for easy disposal and collection.
Q2: Can the lift size be adjusted for different trash can types?
A: Yes, the system is fully customized based on your specific pit dimensions and the size of your garbage tins, supporting common configurations like 2 x 660L or 4 x 240L.
Q3: Is the system safe for residential use?
A: Absolutely. It features high-safety standards, electric lock releases, and is designed to be easy to operate for both private houses and apartment buildings.
Q4: What kind of maintenance does the surface require?
A: The lift undergoes a fine powder-coating surface treatment which provides excellent durability and resistance to environment factors, making it suitable for outdoor installation.
Q5: What are the power requirements for installation?
A: The standard power supply requirement is 220V or 380V, 50Hz, 3-Phase. Customizations for specific electrical needs may be possible.
Q6: Can I control the lift remotely?
A: Yes, while standard operation is straightforward, a remote control system is available as an optional feature for enhanced convenience.
